Digital TV Aerial Installation In Pleasington • Freeview HD & High-Gain Storm Mounts
Benchmarked digital Freeview TV aerial installations and repairs across Pleasington. Precision spectrum-analyser aligned, heavy-duty galvanised chimney brackets, and double-screened WF100 low-loss coaxial cabling.
“Friendly, knowledgeable and tidy install. Gary knows his craft inside out — transparent pricing, spotless work and tested to perfection.”
Verified Customer • Checkatrade ReviewWinter Hill Alignment & Pleasington Valley RF Dynamics
Pleasington is served primarily by the high-power Winter Hill transmitter located 11.5 miles south-south-west on a bearing of 194°. While Winter Hill transmits powerful digital signals, Pleasington's undulating topography presents specific reception challenges that require calibrated aerial positioning.
River Darwen Depression
Properties in the lower valley basin along the River Darwen and near Butler's Delph sit at elevations between 75m and 90m AOD. Higher ground towards Stanworth and Billinge can create diffraction shadows, requiring elevated 10ft to 12ft galvanized masts to secure clean line of sight.
Mature Tree Canopy Attenuation
The historic woodland surrounding Pleasington Priory, Old Hall grounds, and Pleasington Golf Club features dense deciduous oak and beech trees. In full summer bloom, wet leaves absorb UHF frequencies, causing intermittent channel freezing on lower-gain aerials.
Digital Signal Metric Targets

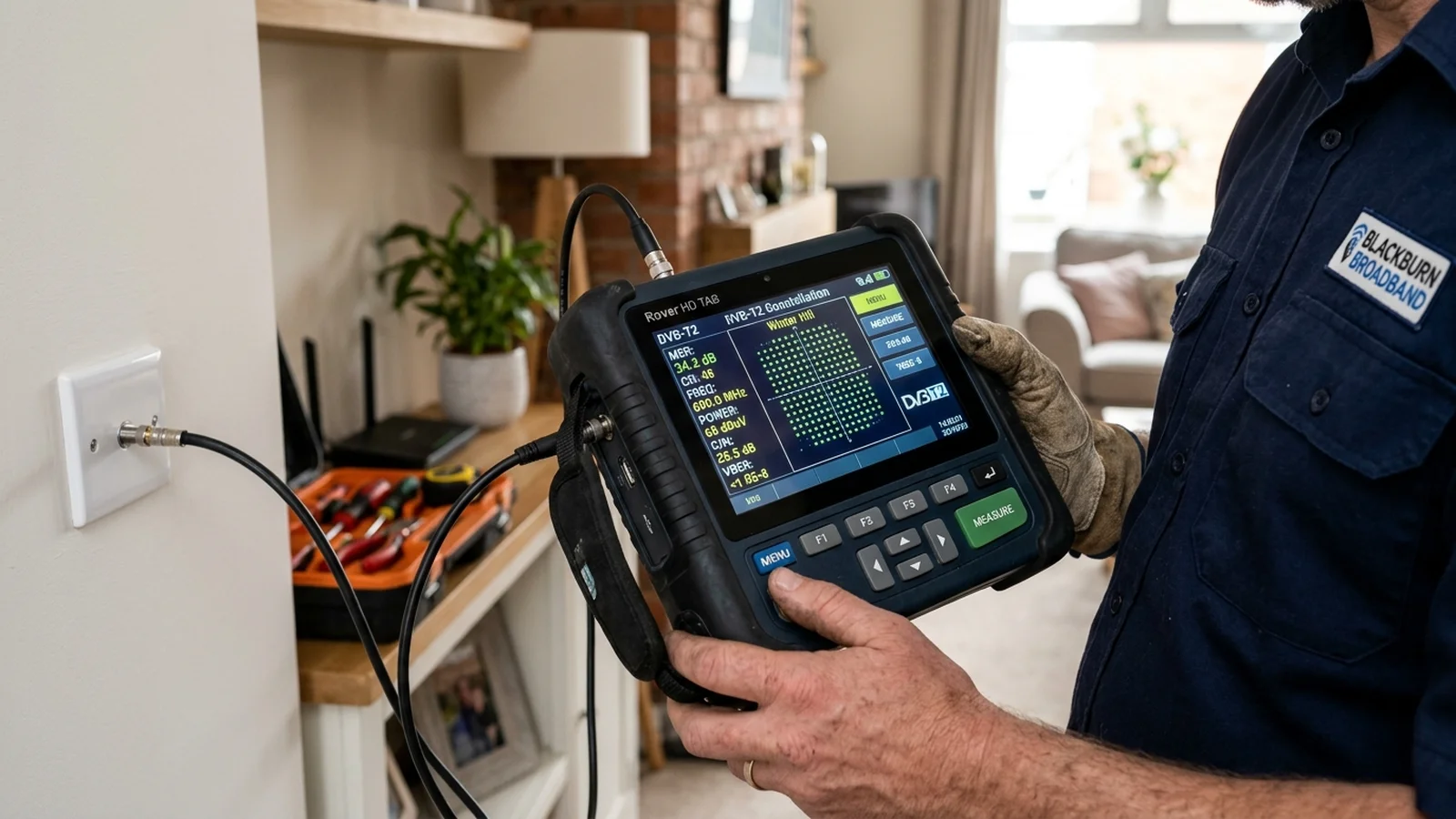

We never rely on visual guesswork. Using a Promax digital spectrum analyzer, every installation is aligned until signal strength measures between 48dBµV and 65dBµV, with Modulation Error Ratio (MER) exceeding 30dB and Pre-Viterbi BER under 1x10⁻⁴.
700MHz & 800MHz 4G/5G LTE Bandpass Filtering
Following the UK digital dividend frequency clearances, high-power mobile cellular networks operate on the 700MHz and 800MHz bands immediately adjacent to digital television frequencies. Mobile base stations along the Preston Old Road (A674) and Pleasington rail corridor can blast high-power RF signals into television downleads.
This cellular overload causes digital tuner front-ends to lock up, resulting in sudden 'No Signal' errors or missing multiplexes. We fit screened masthead bandpass filters that sharply attenuate signals above 694MHz by more than 45dB, protecting your Freeview tuner from mobile interference.
CAI-Benchmarked Equipment & Webro WF100 Coaxial
Every component we install is selected to withstand harsh Pennine weather conditions and deliver clean RF signal transfer, fitted exclusively with CAI-benchmarked equipment and double-screened WF100 cable.
Log-Periodic Arrays
High forward gain with outstanding front-to-back ratio. Flat frequency response across channels 21-48 with natural rejection of out-of-band mobile frequencies.
Webro WF100 Copper
1.00mm pure solid copper conductor, copper foil tape, and dense braided shield. Completely eliminates RF ingress and moisture degradation.
Compression F-Plugs
360-degree radial compression fittings with internal O-ring moisture seals. Zero impedance mismatch or intermittent loose connections.
Screened Splitters
Fully shielded zinc die-cast distribution amplifiers distributing crystal-clear Freeview HD to bedrooms, kitchens, and garden rooms.

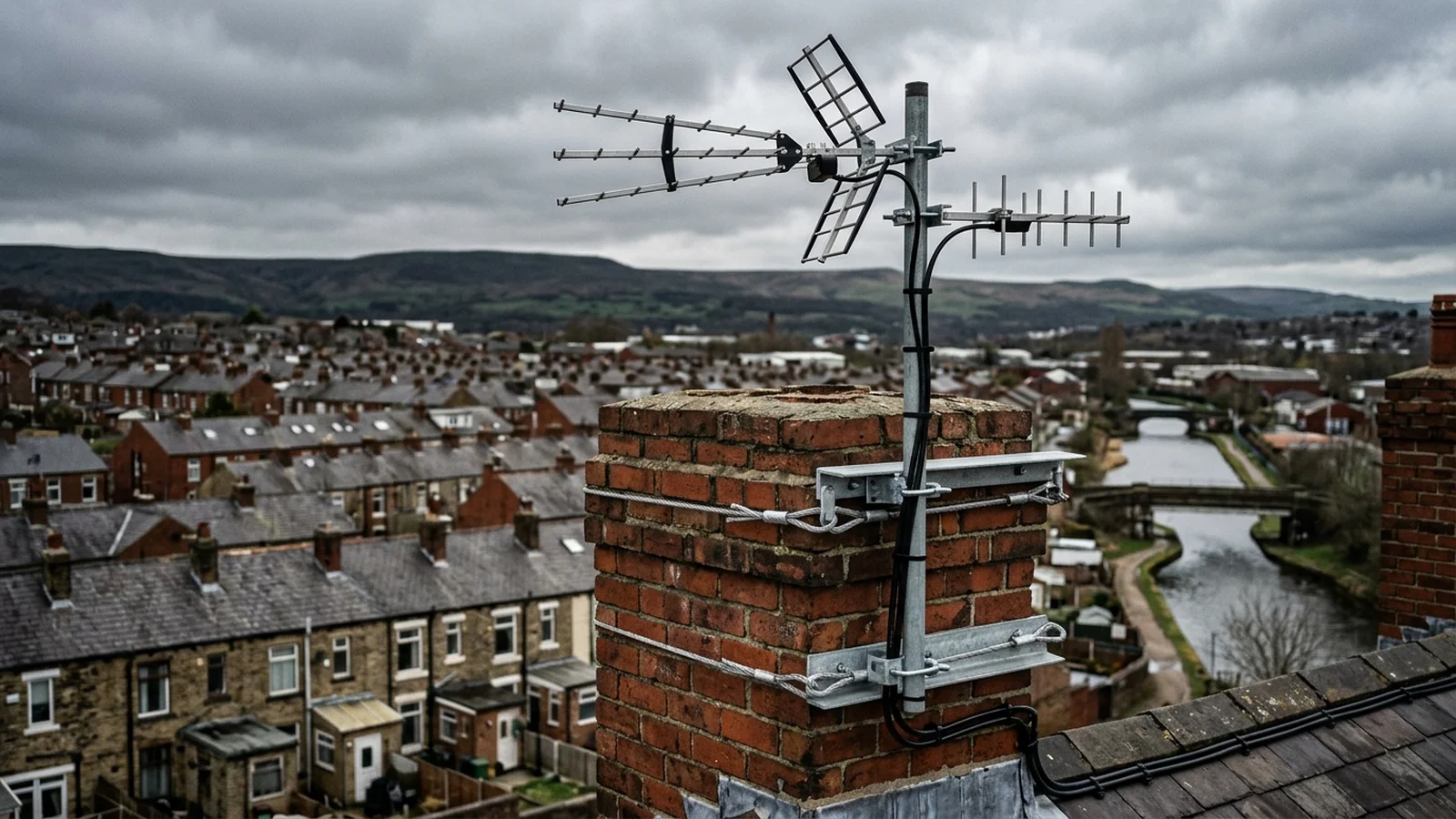

Non-Drill Sandstone Chimney Lashing Cradles
Period country manors and cottages in Pleasington feature delicate heritage sandstone and gritstone chimney stacks. Drilling into old stone or soft lime mortar can cause structural cracking, water ingress, and masonry blowouts in high gales.
We preserve your chimney stack by installing non-drill chimney lashing kits. A heavy-duty galvanized cradle bracket is held in compression by high-tensile 7-strand stainless steel lashing wire wrapped around the entire stack perimeter, protected with corner plates to prevent stone chafing.
- ✓ Zero Masonry Drilling: Total preservation of historic Georgian and Victorian sandstone chimneys.
- ✓ Pennine Gale Resistance: Engineered to withstand 90mph storm gusts without shifting or vibrating.
- ✓ Loft Mounting Option: Where roof aesthetics must be completely unaltered, we install high-gain arrays inside loft voids.
Transparent TV Aerial Packages
All installations are carried out by qualified installer Gary Pearce. Packages include digital meter alignment, heavy-duty mounting hardware, and Freeview HD tuning.
Digital Replacement Aerial
Ideal for properties with good line of sight to Winter Hill replacing broken or aged aerials.
- ✓ CAI-benchmarked digital aerial
- ✓ Heavy-duty galvanized mounting mast
- ✓ Webro WF100 coaxial downlead to 1 point
- ✓ Promax digital signal meter alignment
High-Gain LTE Filtered Suite
Engineered for homes in the valley basin or sheltered by mature trees near Pleasington Golf Club.
- ✓ High-gain wideband log-periodic array
- ✓ 700MHz/800MHz 4G/5G LTE bandpass filter
- ✓ Non-drill chimney lashing cradle or 10ft mast
- ✓ Double-screened WF100 cable to main TV
Multi-Room Amplified System
Powers 2 to 6 television points throughout your home with balanced signal output.
- ✓ High-gain digital aerial + LTE filtering
- ✓ Screened low-noise distribution amplifier
- ✓ Multiple WF100 cable runs to bedrooms/lounge
- ✓ Signal level balance check at every wall plate
Our 4-Stage Aerial Deployment
Every installation is carried out with meticulous care to protect your roofline and deliver stable reception.
Meter Survey
We test live RF spectrum levels at roof height, determining the optimal bearing and height to clear surrounding trees and valley ridges.
Non-Drill Mount
We fit a stainless steel chimney lashing cradle or heavy-duty galvanized wall bracket with heavy-duty mechanical fixings.
WF100 Cabling
Double-screened Webro WF100 copper coaxial cable is clipped neatly along mortar joints and brought inside via sealed drip-loop grommets.
Tuning & Handover
We retune all television sets, verify Freeview HD channel lineup, confirm MER levels, and provide our 5-year guarantee certificate.
Serving Pleasington & Surrounding Enclaves
From our Blackburn base, Gary Pearce provides rapid response aerial installations across Pleasington and neighbouring districts:
Digital TV Aerial Questions Answered
Technical specifications and reception guidance for Pleasington homeowners.
Which TV transmitter provides Freeview coverage for Pleasington homes?
Pleasington receives primary digital terrestrial Freeview broadcasts from the Winter Hill transmitter, situated approximately 11.5 miles south-south-west on a compass bearing of 194°. Winter Hill broadcasts in horizontal polarization, delivering full Freeview HD multiplexes across BBC, ITV, Channel 4, and commercial networks.
Why do channels pixelate or break up on properties near Pleasington Golf Club?
Properties located along Pleasington Lane and near the golf course frequently experience signal diffraction from mature deciduous tree canopies and topographical valley dipping along the River Darwen. Furthermore, 4G and 5G cellular masts operating along the Preston Old Road corridor can overload older unshielded aerials, requiring modern 700MHz/800MHz LTE cavity bandpass filters.
How do you install an aerial without damaging period sandstone chimneys?
Historic Georgian and Victorian homes in Pleasington feature heritage sandstone chimneys. We never drill into structural stonework or mortar lines. Instead, we install heavy-duty galvanized steel chimney cradles secured with high-tensile stainless steel lashing wire wrapped around the stack, distributing wind load evenly and preserving the masonry.
What type of coaxial cable is installed to prevent signal loss and interference?
We install genuine CAI-benchmarked Webro WF100 coaxial cable. This features a solid 1.00mm pure bare copper conductor, gas-injected foam dielectric, 100% copper foil tape, and dense tinned copper braid shielding. We never use cheap aluminium-foil or copper-clad steel (CCS) cables which deteriorate rapidly in damp Lancashire weather.
How much does digital TV aerial installation cost in Pleasington?
Our transparent packages start from £129 + VAT for a standard digital replacement aerial, £169 + VAT for high-gain fringe reception arrays with 4G/5G filtering, and £199 + VAT for multi-room distribution or masthead amplified systems. Every installation includes full Promax spectrum analyser signal certification.

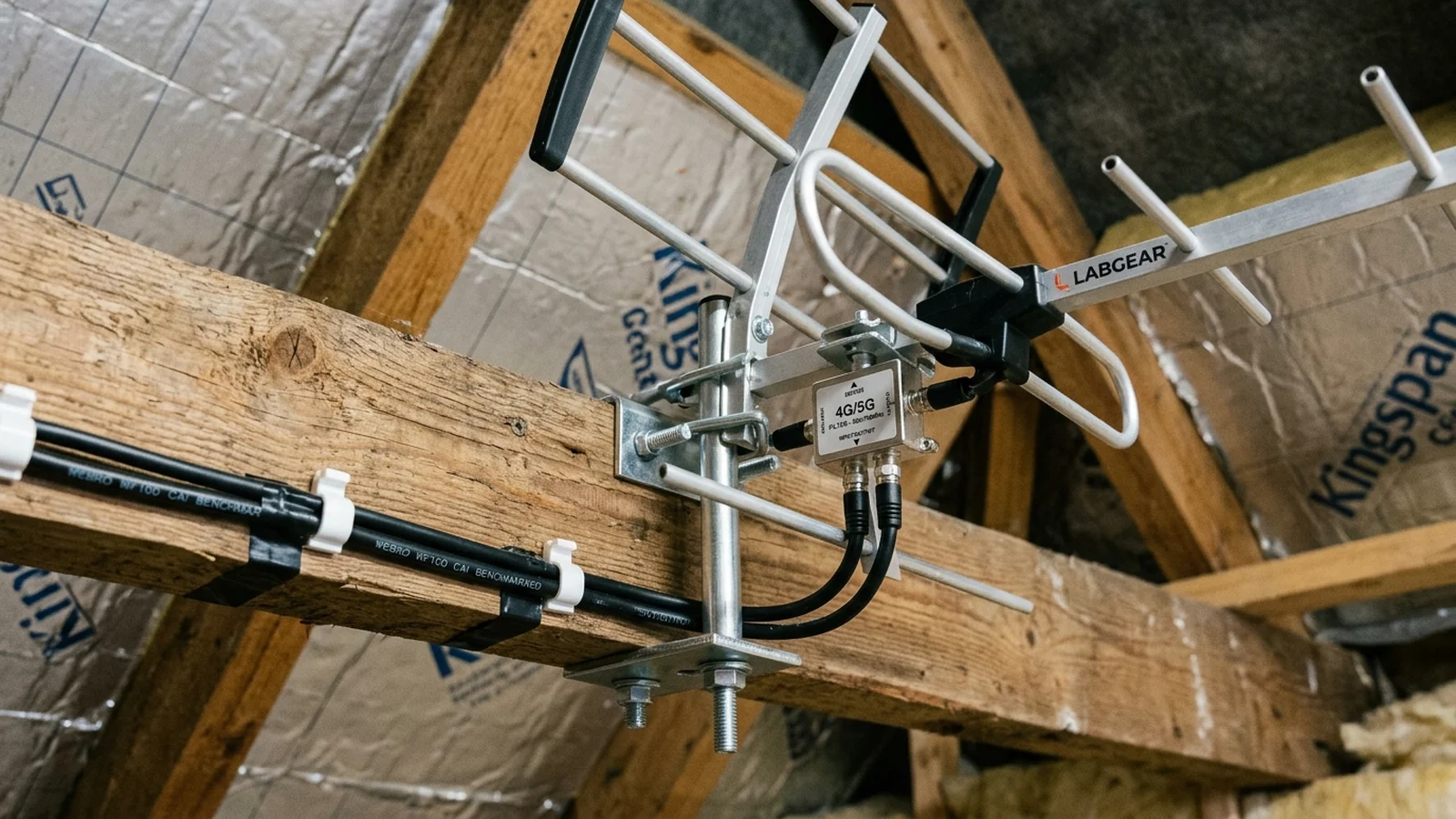

Can an aerial be installed inside the loft instead of on the roof?
Yes. For period properties where roof aesthetics must be maintained, a loft installation is often possible. However, slate and roofing tile attenuation typically reduces signal by 6dB to 10dB, which we compensate for using higher-gain log-periodic arrays or screened masthead amplifiers.
Will the aerial receive all Freeview HD and radio channels?
Yes. A properly aligned Winter Hill aerial delivers all standard definition Freeview channels, Freeview HD channels (BBC One HD, ITV1 HD, Channel 4 HD, etc.), and digital radio services broadcast across the main terrestrial multiplexes.
What warranty and insurance cover do you provide?
All aerial installations are covered by our comprehensive 5-year parts and labour warranty and protected by £10 Million Public Liability Insurance, providing total peace of mind for roofing and chimney work.
Can multiple television sets run from a single aerial?
Yes. Using low-loss screened splitters or a multi-way distribution amplifier, we can supply crystal-clear digital signals to 2, 4, 6, or more television outlets across your property with zero picture degradation.
How quickly can Gary attend for an aerial repair or installation?
We provide prompt weekday bookings across Pleasington and Blackburn, frequently accommodating same-day or next-day emergency repair callouts for storm damage or sudden signal failure.
Ready For Crystal-Clear Freeview HD In Pleasington?
Contact Gary Pearce today to book your on-site signal survey or arrange your aerial installation.
