Domestic & Commercial Data Cabling In Pleasington, Blackburn BB2 Structured Cat6 & Cat6a Ethernet For Country Manors & Executive Residences
Tired of Wi-Fi dropping through thick stone masonry in Pleasington? Gary Pearce brings 25+ years hands-on experience (verified 2026) installing certified Cat6 and Cat6a data cabling across Pleasington BB2. From historic country residences on Pleasington Lane to luxury executive mansions near Pleasington Golf Club, we install solid bare copper network lines, non-destructive floorboard routes, and Fluke-tested RJ45 ports for certified 10Gbps connectivity.
Overcoming Pleasington's Complex Building Substrates
Running high-performance network cables through Pleasington's prestige architecture requires specialist craftsmanship, whether preserving antique pitch pine floorboards in historic country residences or navigating modern dot-and-dab drywall in golf estate mansions.
Historic Country Residences & Cottages
Along Pleasington Lane, Victoria Road, and Butler's Delph, homes feature 400mm to 500mm solid Pennine sandstone masonry with original tongue-and-groove pitch pine floorboards. Inexperienced installers often cause permanent damage by hacking into antique floorboards or surface-clipping unsightly plastic trunking across period skirting boards. Gary uses precision oscillating floorboard lifters that protect delicate tongue joints without splitting, threading 23AWG LSZH solid copper cables through dead spaces, subfloor voids, and disused service risers with zero visible wiring.
Executive Mansions & Contemporary Rebuilds
Luxury executive properties near Pleasington Golf Club and Sandy Lane feature modern plasterboard over lightweight thermalite blockwork lined with foil-backed PIR insulation (Kingspan/Celotex). We fish cables vertically down internal stud wall cavities using magnetic retrieval systems and flexible guide rods, terminating into flush brushed-steel, black nickel, or white RJ45 faceplates that blend cleanly with high-end designer fittings.
Pleasington Installation Telemetry Matrix
All routes are surveyed on-site before drilling to identify central heating pipes, underfloor heating manifolds, and electrical wiring looms using electronic wall scanners.
100% Pure Bare Copper vs Substandard CCA
The data cabling market is flooded with counterfeit Copper Clad Aluminium (CCA) wire sold cheaply online. We maintain an uncompromising trade standard: pure solid copper only.
Solid Copper Cat6
Constructed with pure 23AWG electrolytic copper conductors separated by an internal polyethylene spline. Rated to 250MHz bandwidth, providing sustained 1Gbps gigabit throughput across distances up to 100 metres and 10Gbps up to 37-55 metres.
- ✓ 250MHz Operational Frequency
- ✓ Internal Cross-Spline Geometry
- ✓ IEEE 802.3af/at PoE+ Compliant
Shielded Solid Cat6a
Features individually foiled pairs (U/FTP or F/UTP) tested up to 500MHz bandwidth. Certified 10Gbps line-rate transmission across the full 100-metre permanent link, highly resistant to alien crosstalk from adjacent electrical power circuits.
- ✓ 500MHz High-Frequency Bandwidth
- ✓ Full 10Gbps Line Speed at 100m
- ✓ High-Density Metal RJ45 Shielding
Why Cheap CCA Is Banned
Copper Clad Aluminium (CCA) cables use cheap aluminium cores thinly coated with copper. Aluminium has 55% higher electrical resistance than copper, causing dramatic packet loss over 15 metres, severe conductor brittleness during installation, and dangerous heat buildup when carrying PoE current to Wi-Fi access points or CCTV cameras.
- ✗ 55% Higher Electrical Resistance
- ✗ Snaps When Pulled Through Floorboards
- ✗ Severe Fire Hazard Under PoE+ Load

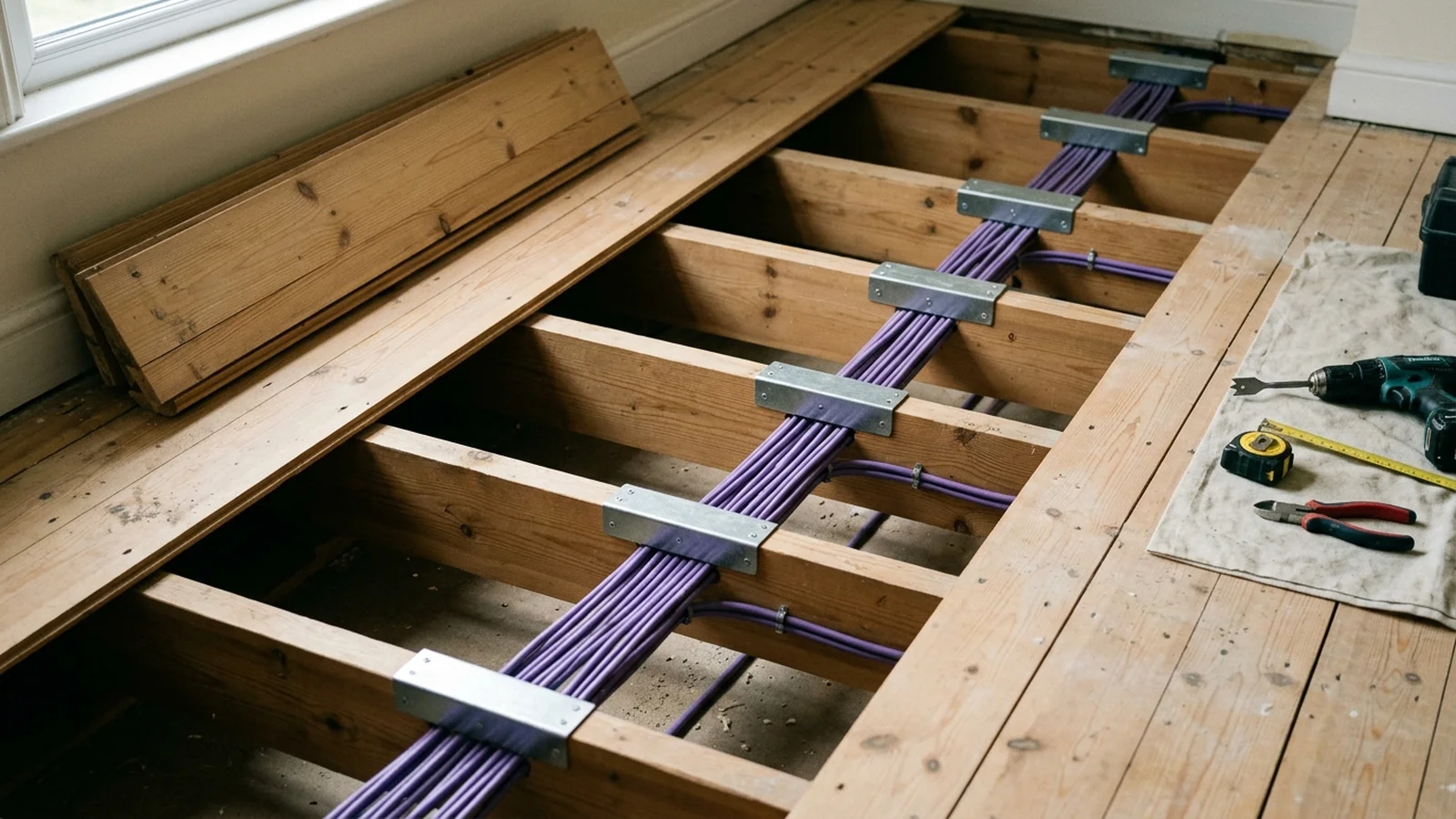

Preserving Structural Joist Integrity (Part A)
Drilling through timber floor joists without engineering discipline weakens floor structures, causing bouncy floors, sagging ceilings, and survey red flags. Gary Pearce complies strictly with UK Building Regulations Approved Document Part A (GOV.UK):
Neutral Axis Drilling Zone
Holes are drilled exclusively along the horizontal neutral centreline of the joist, where tensile and compressive bending forces equal zero.
Strict 0.25 to 0.40 Span Limits
Drilling is restricted to the safe structural zone between 0.25 and 0.40 of the clear span from the supporting wall. We never drill within the high-shear end zones or maximum-bending centre span.
Maximum 0.25x Depth Diameter
Hole diameters are capped at 0.25 times the total joist depth (e.g. max 50mm hole in a 200mm joist) and spaced at least 3 diameters apart to prevent stress fractures.

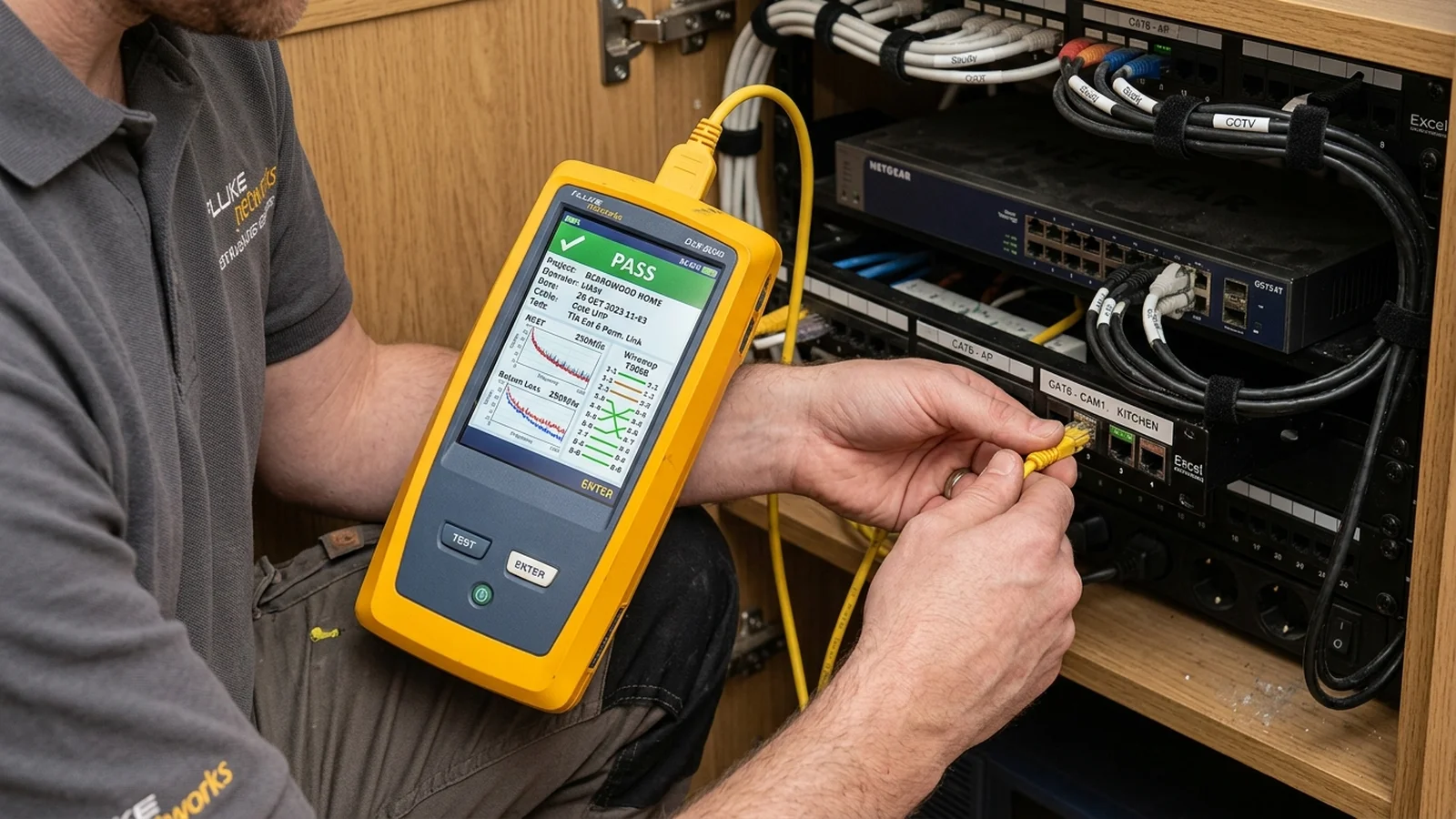

Fluke DSX Permanent Link Certification
Cheap £10 LED continuity checkers only test whether pin 1 connects to pin 1. They tell you nothing about high-frequency packet corruption, signal attenuation, or cross-talk. Every ADI installation is certified with an industry-standard Fluke DSX CableAnalyzer.
Near-End Crosstalk
Measures electromagnetic interference bleeding between twisted pairs.
Impedance Matching
Checks for signal reflections caused by tight cable bends or poor terminations.
Delay Skew
Verifies electrical transit time differences across all 4 conductor pairs.
PoE+ Power Delivery
Confirms balanced loop resistance for high-power access points and cameras.
Transparent Per-Point Cabling Packages
Strictly adhering to canonical trade rates. No hidden callout surcharges, no surprise fees, and full 5-year workmanship guarantees on every installation.
Cat5e Structured Drop
Standard gigabit Ethernet runs for budget residential points and secondary bedrooms.
- ✓ Solid Copper Cat5e Cable
- ✓ Up to 1Gbps at 100m
- ✓ Flush RJ45 Wall Outlet
- ✓ Fluke Wiremap Verified
Solid Copper Cat6 Drop
The gold standard for Pleasington homes. 23AWG LSZH solid copper with internal spine for high-speed Wi-Fi 6 access points.
- ✓ 23AWG Solid Bare Copper
- ✓ 250MHz High-Speed Bandwidth
- ✓ Full PoE+ Power Delivery
- ✓ Fluke DSX Performance Report
Shielded Cat6a Drop
Full 10-gigabit throughput for commercial home offices, media suites, and zero-crosstalk server links.
- ✓ 500MHz Foiled Twisted Pairs
- ✓ 10Gbps Speed at Full 100m
- ✓ Shielded Die-Cast Keystones
- ✓ Certified NEXT / Return Loss
Cat8 / Fibre Specialist
2000MHz ultra-bandwidth for data centres, 40Gbps spine links, and heavy-duty industrial installations.
- ✓ 2000MHz Operational Rating
- ✓ 25G / 40GBASE-T Ready
- ✓ Double Shielded S/FTP Spec
- ✓ Enterprise Patch Integration
The 5-Stage Turnkey Installation Process
Every cabling project is planned and executed personally by Gary Pearce to preserve your property's aesthetics and structural integrity.
Route Survey
We inspect lofts, subfloor voids, and stud walls, mapping discrete pathways avoiding visible surface mini-trunking.
Floorboard Lifting
We carefully lift tongue-and-groove pine boards using specialized non-destructive tools without damaging antique timber tongues.
Part A Joist Run
We drill joists strictly along the neutral centreline within 0.25 to 0.40 span limits and pull 23AWG LSZH solid copper cable.
Outlet Termination
We terminate into flush RJ45 wall faceplates and wire patch panels in utility racks or central comms cabinets.
Fluke DSX Cert
We run full permanent link certification tests on every point, handing over signed PDF test results and a 5-year guarantee.
Data Cabling Services Across Blackburn & The Ribble Valley
Gary Pearce provides dedicated domestic and commercial network engineering across the following local communities:
Frequently Asked Questions: Data Cabling In Pleasington
Direct, factual answers regarding stone penetration, joist regulations, solid copper standards, and Fluke certification.
Why is hardwired Cat6 data cabling needed in Pleasington homes?
Solid sandstone walls in historic Pleasington manors cause 20dBm to 25dBm of high-frequency wireless signal loss, while modern foil-backed insulation creates Faraday barriers. Hardwired solid copper Cat6 network cables effectively bypass these obstacles through floor voids, providing dedicated 1Gbps to 10Gbps connectivity without dropouts.
How do you route network cables without damaging historic floorboards in Pleasington?
We use specialist floorboard lifting bars that preserve antique tongue-and-groove joints without splintering old pitch pine timbers. Cables are threaded through existing joist notches or drilled strictly according to UK Building Regulations Part A guidelines, then boards are refitted flush with original fixings.
Do you comply with UK Building Regulations Part A for timber joist drilling?
Yes. We strictly follow Building Regulations Approved Document Part A. Holes through floor joists are drilled exclusively within the neutral zone (between 0.25 and 0.40 of the clear span) along the centreline, with hole diameters kept below 0.25 times the joist depth to preserve floor load strength.
What type of Ethernet cable do you install?
We exclusively install 100% solid bare copper 23AWG Low Smoke Zero Halogen (LSZH) Cat6 and Cat6a cable. We never use cheap Copper Clad Aluminium (CCA), ensuring low DC loop resistance, full Power-over-Ethernet (PoE+) headroom, and compliant fire safety.
How much does professional data cabling cost per point in Pleasington?
Standard Cat5e drops start from £129 per point, high-performance Cat6 drops start from £169 per point, shielded Cat6a drops start from £199 per point, and specialized Cat8 drops start from £240 per point.
Can data cabling connect a garden office or detached annexe in Pleasington?
Yes. We can install external steel wire armoured (SWA) Cat6 copper cable directly in trenches or run high-throughput 60GHz wireless point-to-point bridges between the main home and outbuildings, delivering 1Gbps throughput without trenching.
What certification do I receive after installation?
Every cable run is tested with our calibrated Fluke DSX CableAnalyzer. You receive an official PDF test certificate verifying wiremap, length, propagation delay, return loss, and NEXT compliance against IEEE standards.
Can data cables be hidden inside cavity walls in modern Pleasington homes?
Yes. In modern executive properties with plasterboard partition walls, cables are dropped internally inside stud voids and brought out into flush wall faceplates, leaving zero visible surface trunking.
Can you wire Cat6 cables directly to smart TVs, golf simulators, and games consoles?
Yes. Hardwiring 4K smart TVs, TrackMan golf simulators, media streaming boxes, and gaming consoles drastically reduces buffer latency, ensuring highly stable 4K HDR playback and sub-10ms gaming ping times.
How quickly can Gary carry out a data cabling survey in Pleasington?
We operate daily throughout Blackburn and the Ribble Valley. We can usually schedule an on-site structural pathway and cabling survey in Pleasington within 24 to 48 hours.
Ready For Gigabit Data Cabling In Pleasington?
Book your professional network cabling survey or multi-point Ethernet installation with Gary Pearce. We guarantee solid copper reliability and certified Fluke performance.
