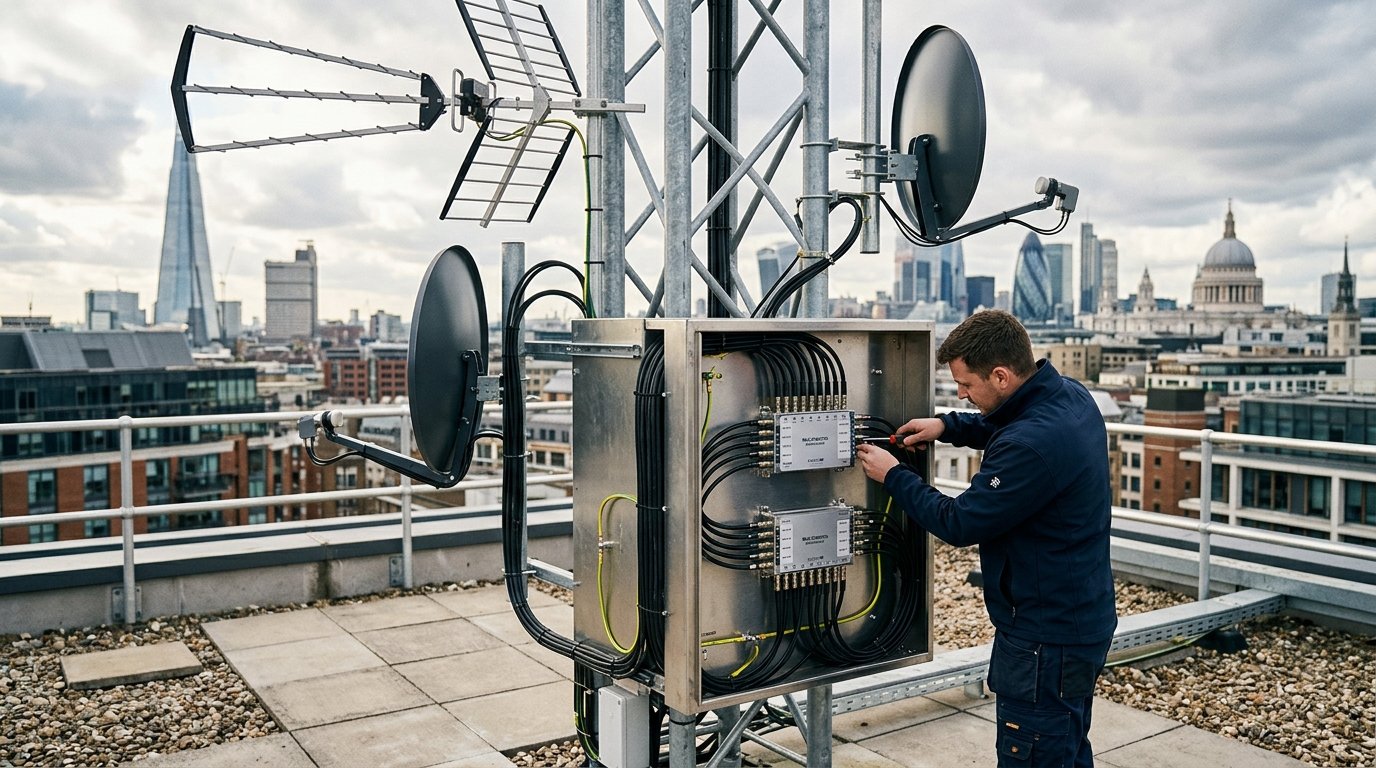

Communal Aerials & IRS Multi-Dwelling TV Systems
We design, install, and maintain commercial Integrated Reception Systems (IRS), MATV, and optical fibre distribution networks for apartment blocks, delivering independent Sky Q and Freeview to every flat.
“Friendly, knowledgeable and tidy install. Gary knows his craft inside out — transparent pricing, spotless work and tested to perfection.”
Verified Customer • Verified ReviewCommercial TV Distribution: IRS, MATV, SMATV & Fibre
Different residential buildings demand distinct broadcast infrastructures. We design, install, commission, and certify all major commercial communal television architectures to Confederation of Aerial Industries technical codes of practice.
Communal IRS (Integrated Reception System) and MATV installation from ADI Communications delivers terrestrial Freeview HD, satellite (Sky Q/Freesat), and DAB radio over a single multi-core coaxial network to multiple flats. Lead Engineer Gary Pearce designs, balances, and maintains commercial multi-dwelling distribution systems with full CAI compliance.
IRS (Integrated Reception Systems)
The universal standard for modern apartments. Combines Freeview HD, DAB/FM radio, and satellite signals (Sky Q, Sky HD, Freesat) through a unified coaxial network to a multi-screen triplex wall plate in every dwelling.
MATV (Master Antenna TV)
Cost-effective communal broadcast distributing digital Freeview TV and radio from high-gain rooftop aerials through splitters and distribution amplifiers to tenant sockets. Excludes commercial satellite.
SMATV (Satellite Master Antenna TV)
Hospitality headend system taking selected satellite transponders (Sky Sports, European news, movies) and modulating them into private digital multiplexes viewable on any standard domestic Freeview TV tuner.
Fibre IRS (FIRS) Campus Links
Single master dish and antenna farm distributing lightwaves across multi-kilometre single-mode fibre optics to discrete apartment buildings, converted back to coaxial via GTU optical nodes in each riser.
Comparison Matrix: MATV vs SMATV vs IRS
Understanding system capabilities before tendering or upgrading your building
| Feature / Service | MATV | SMATV | IRS (Recommended) |
|---|---|---|---|
| Digital Freeview HD & Radio | ✓ Included | ✓ Included | ✓ Included |
| Sky Q & Sky Glass dSCR Support | ✗ No Satellite | ⚠ Modulated only | ✓ 100% Full Native dSCR |
| Individual Tenant Satellite Boxes | ✗ Not Supported | ✗ Central Headend only | ✓ Independent flat control |
| European Satellite (Astra / Hotbird) | ✗ No | ✓ Modulated feeds | ✓ Multi-satellite 9-wire switch |
| Ideal Property Type | Care Homes, Budget Motels | Luxury Hotels, Hospitals, Gyms | Residential Flats, PRS, New Builds |

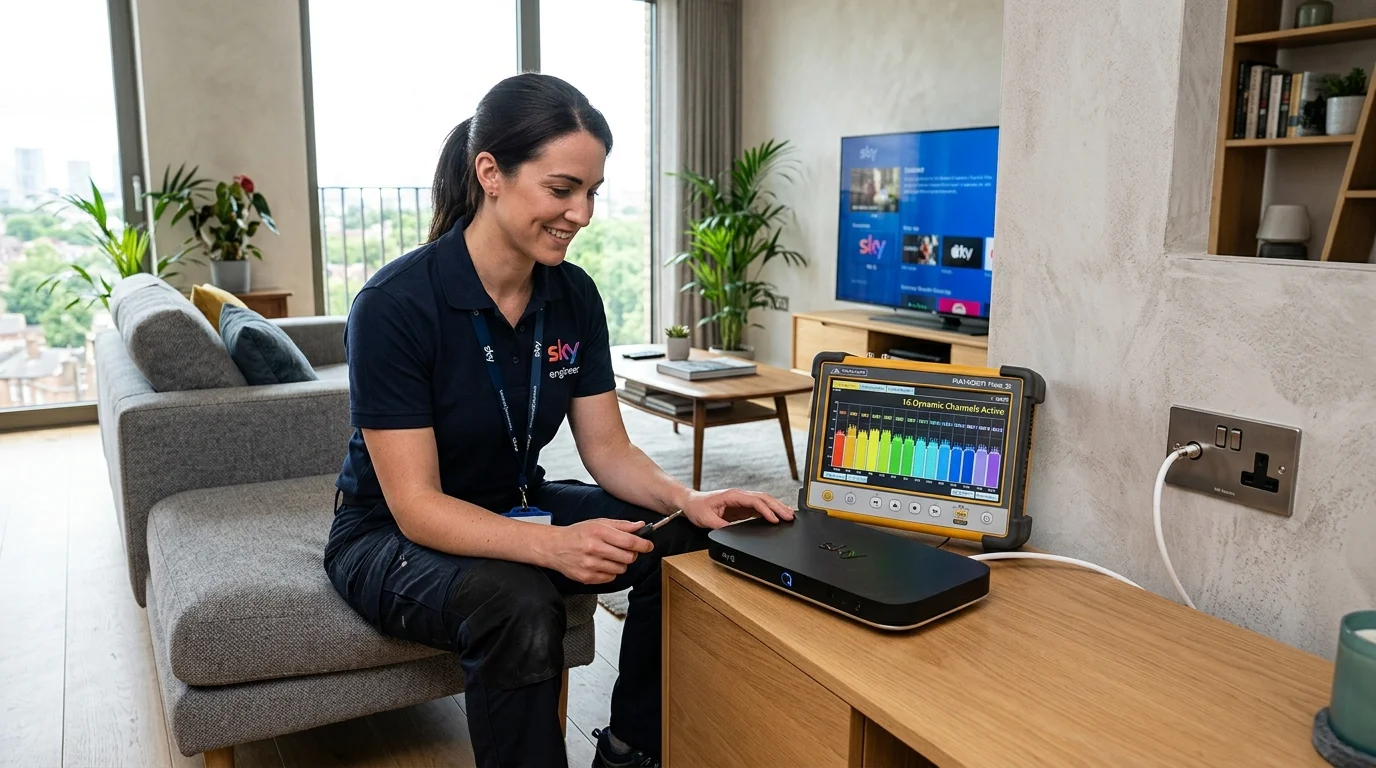

Sky Q Communal Dish Upgrades & dSCR Multiswitch Retrofits
Moving into a flat with a communal dish only to find your Sky Q box displays “No Satellite Signal”? Legacy communal systems installed before 2016 use standard multiswitches that require two separate cables and cannot communicate with Sky Q's wideband tuners.

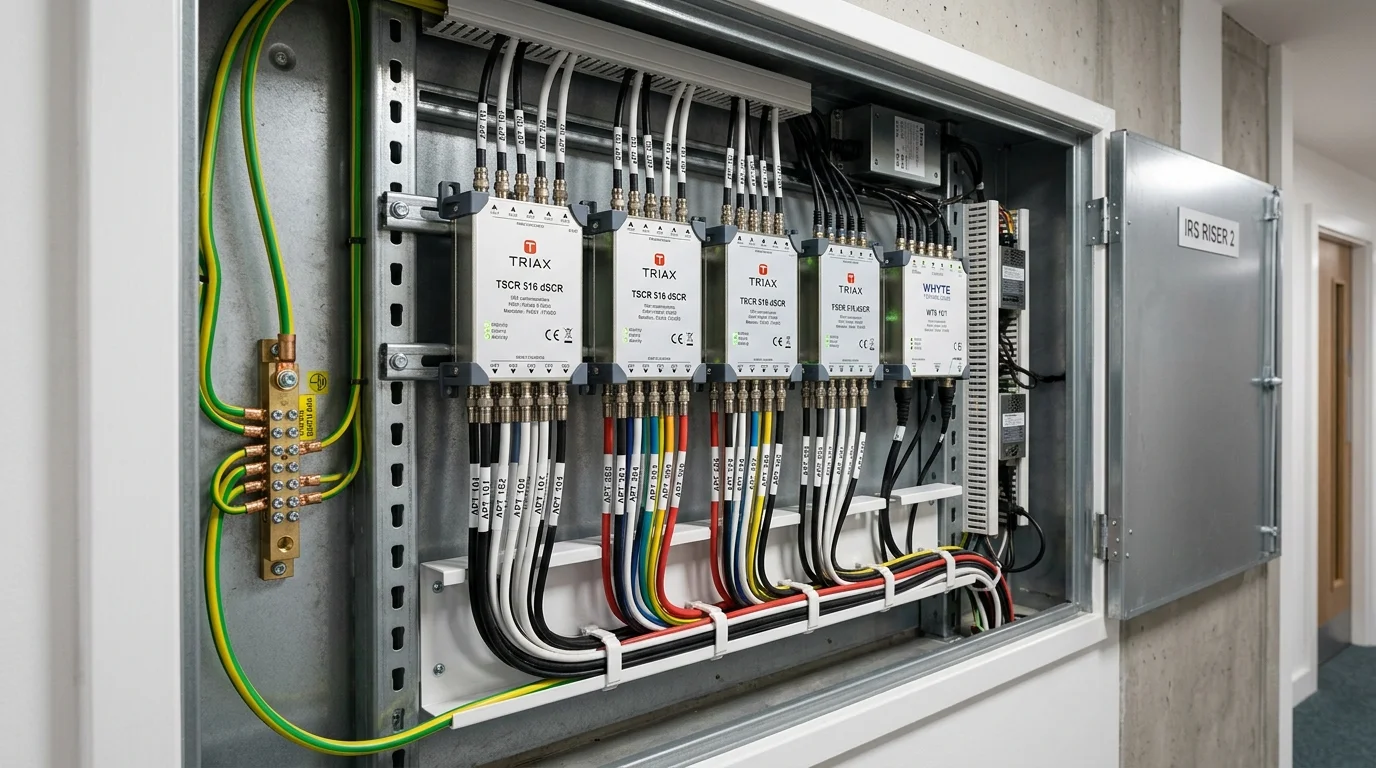

Gary Pearce upgrades communal riser cupboards with digital Single Cable Router (dSCR) multiswitches from Whyte Technologies and Triax. These units allow Sky Q to operate flawlessly over a single existing coaxial cable drop, providing 16 dynamic user bands without re-cabling the building.
Reuses existing internal RG6/CT100 coaxial drops with zero disruption or building redecoration.
Auto-detects legacy Sky+ HD, Freesat 4K, and Freeview HD alongside Sky Q on the same port.

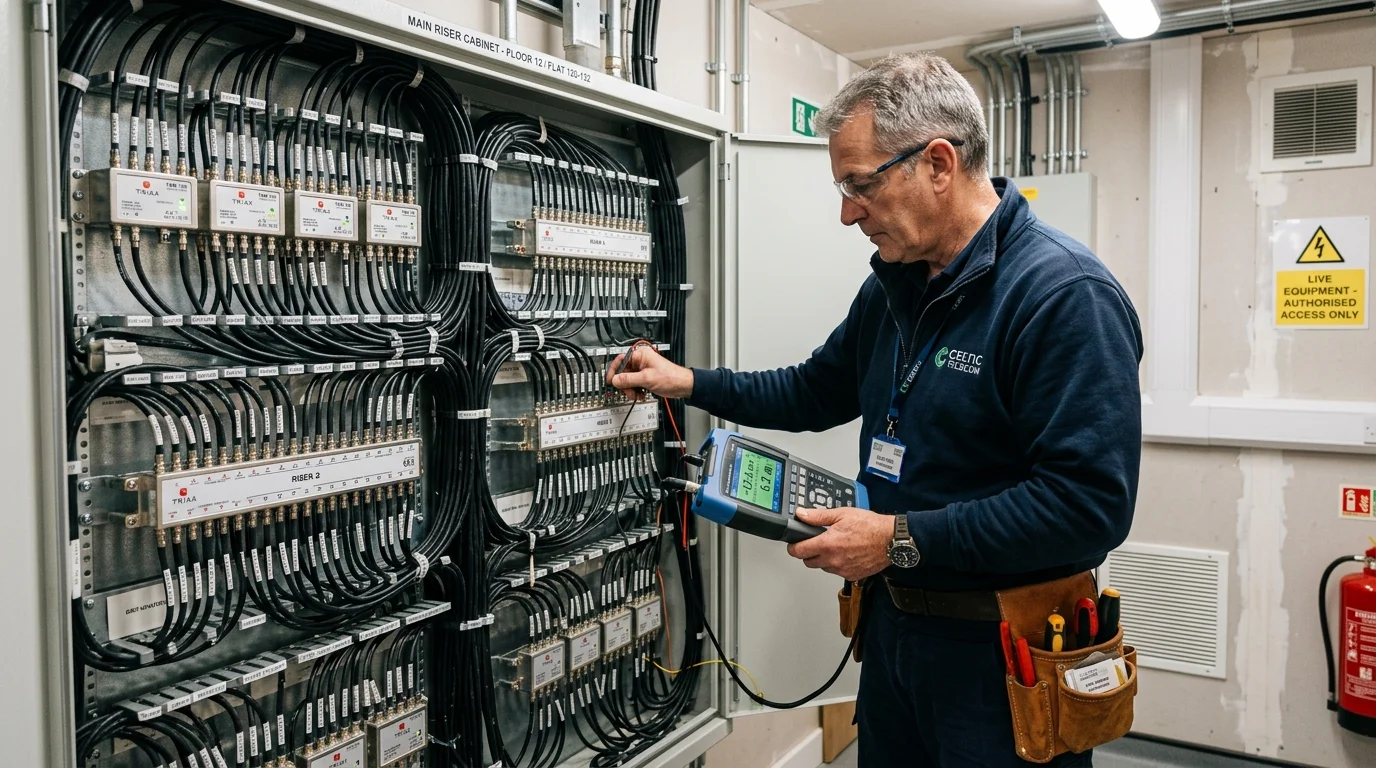

Communal Satellite & TV Repairs: Solving “No Satellite Signal”
When residents experience picture break-up, missing multiplexes, or a complete loss of signal, diagnosing communal RF faults requires systematic signal tracing. Is it an isolated flat issue (damaged wall plate, subscriber cable fault) or a building-wide failure (burnt-out launch amplifier, rotated dish, blown PSU)?
Gary Pearce carries calibrated digital signal meters and truck-stocked commercial spare parts to isolate and repair communal faults on the spot:
-
✓
LNB & Dish Realignment: Optical laser alignment of communal 80cm–1.1m commercial dishes knocked by storm gales.
-
✓
Launch Amplifier Hot-Swaps: Replacing blown headend launch amplifiers and power units restoring service building-wide.
-
✓
5G Interference Filtering: Fitting steep-cut 700MHz SAW band-stop filters to prevent mobile mast signal overload.
Tailored Communal TV Services for Block Management & Housing Associations
We partner directly with Residential Management Companies (RMCs), Right to Manage (RTM) directors, letting agents, and housing associations. We eliminate tenant television complaints and ensure legal compliance.

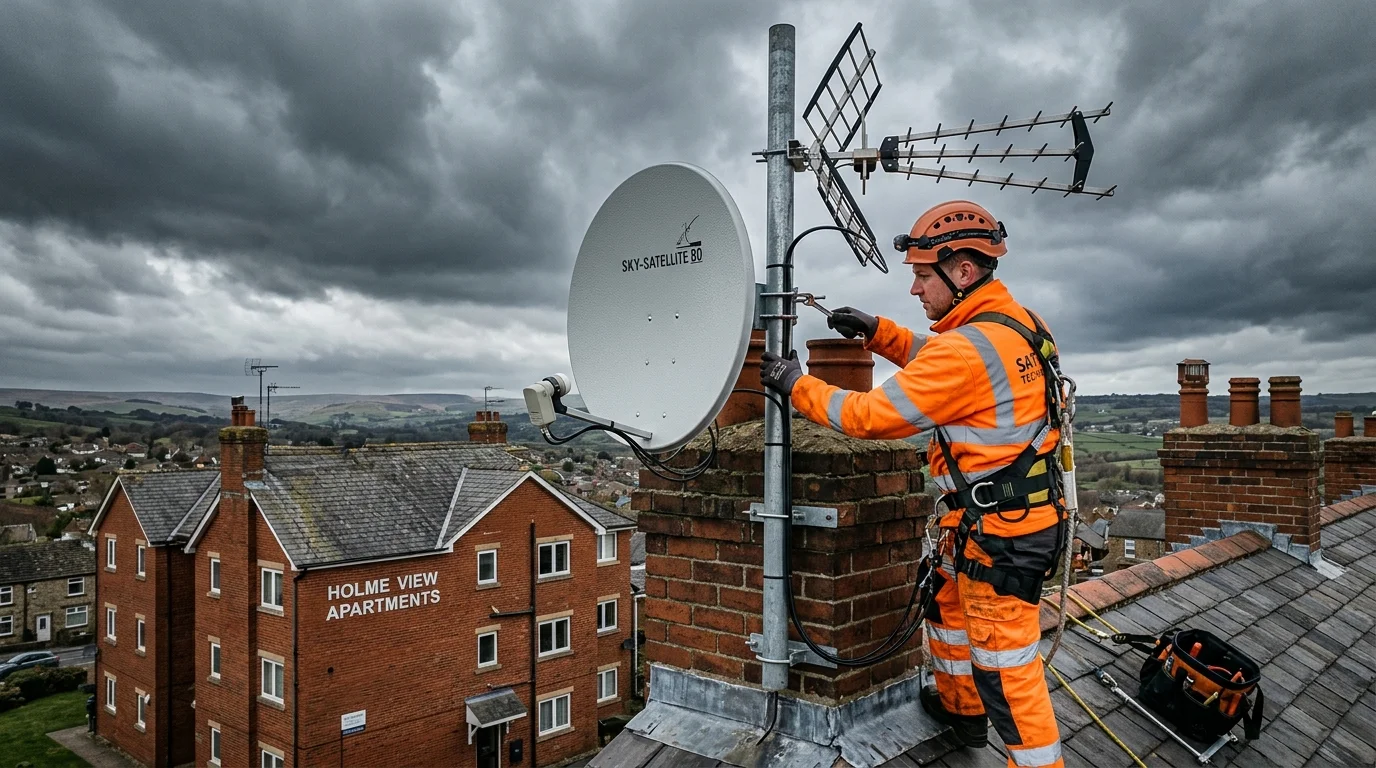

Emergency Outage & Storm Repair
When gale-force winds rotate a commercial rooftop satellite dish or burn out a headend launch amplifier, dozens of residents lose television instantly. Gary Pearce delivers same-day emergency triage across the North with truck-stocked commercial parts.
- ✓ Fast-track engineer dispatch
- ✓ Heavy-duty storm realignment
- ✓ Blown power supply hot-swap

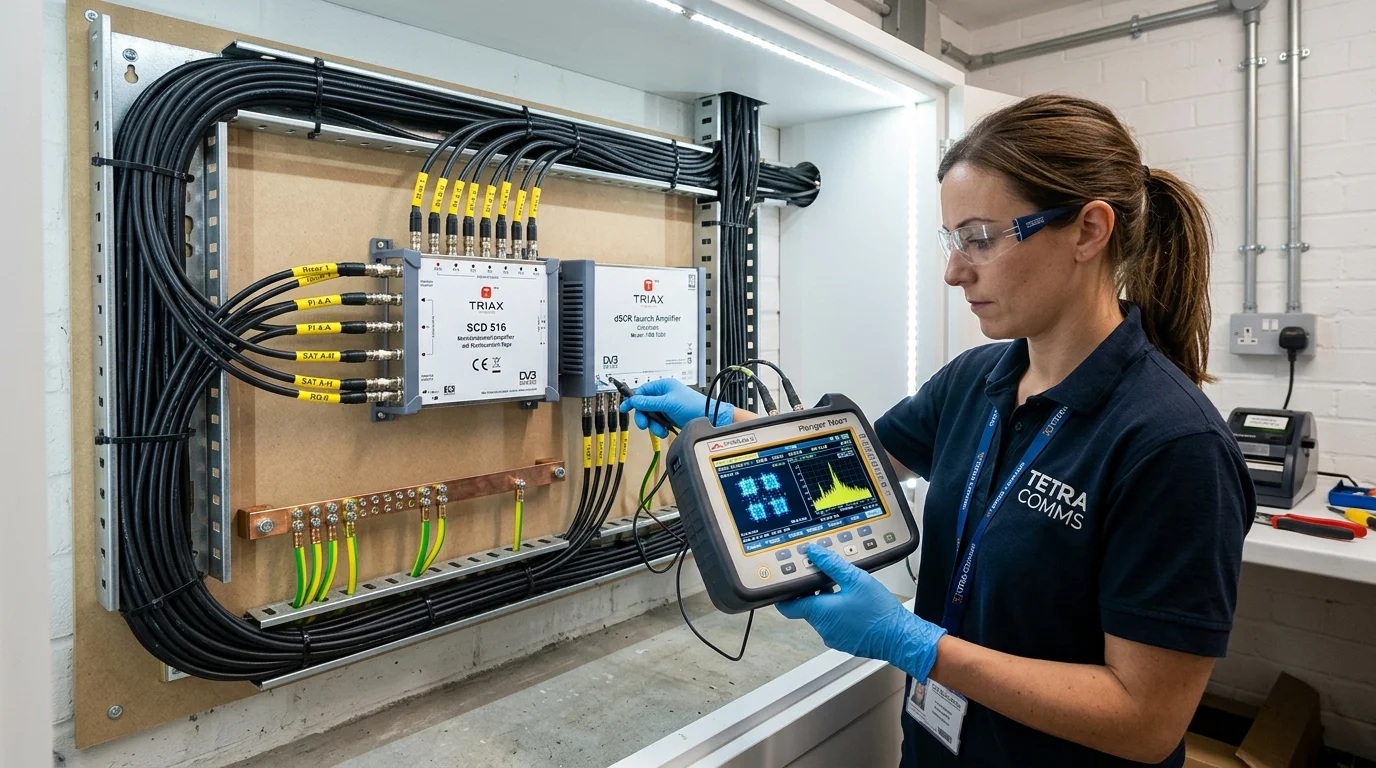

Planned Preventative Maintenance (PPM)
Prevent costly emergency callouts with scheduled bi-annual health checks. We audit signal level microvolts (dBµV), carrier-to-noise ratios (MER > 32dB), earth bonding continuity to the MET, and fire-stopping seals across communal risers.
- ✓ Comprehensive digital signal audits
- ✓ Riser cupboard cable hygiene
- ✓ Full written insurance reports

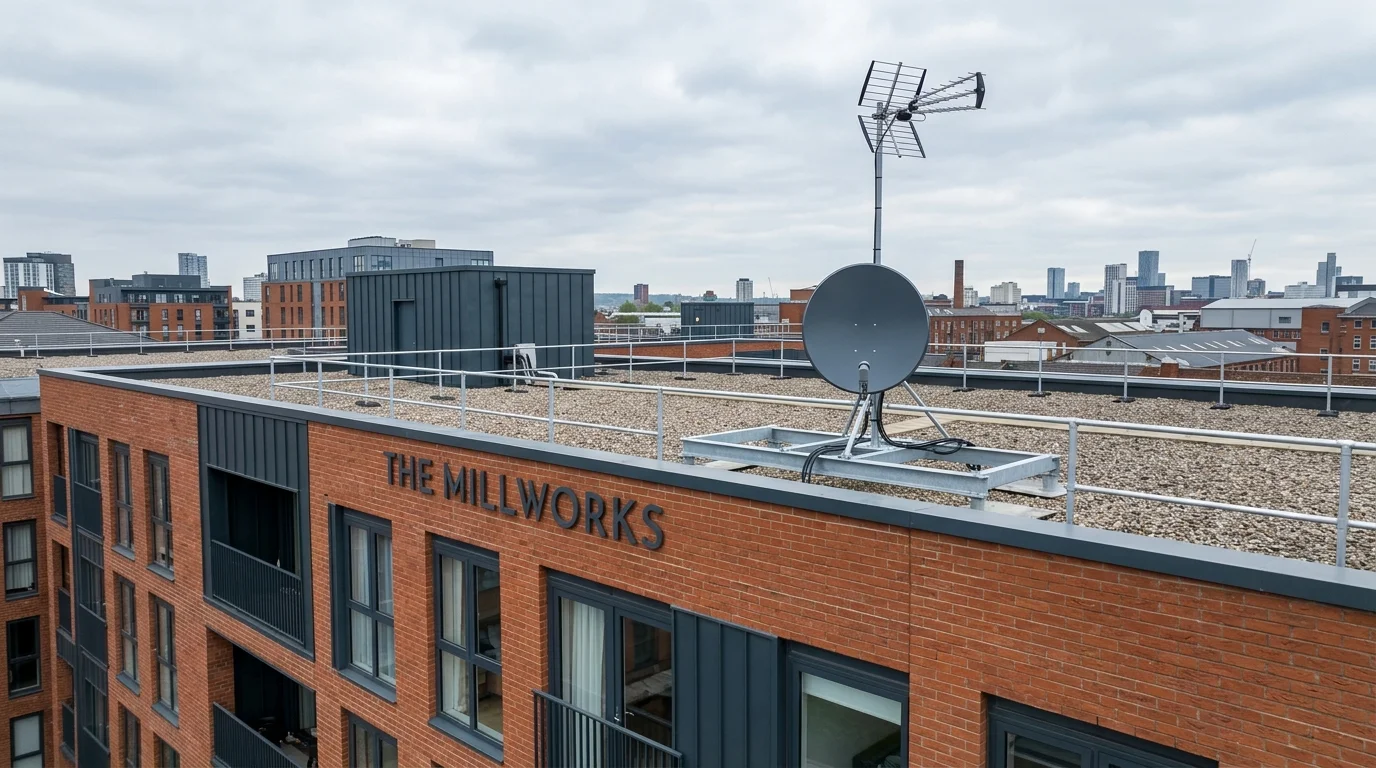

Rooftop Dish Clutter Removal
Multiple unapproved satellite dishes bolted to balconies and facades breach lease covenants and local conservation area planning rules. We consolidate all individual antennas into a single discreet rooftop array, removing dangerous redundant cabling.
- ✓ Balcony dish lease enforcement
- ✓ Heritage building discreet masts
- ✓ Clean internal communal risers
How Much Does a Communal Satellite or IRS System Cost?
Communal television pricing depends on building size, drop count, riser architecture, and whether the job is a new installation, retrofit upgrade, or emergency repair. We provide upfront, transparent commercial costs with fixed written tenders:
Emergency fault diagnostic callout for apartment blocks. Spectrum analysis testing of launch amps, headend power, and subscriber feeds.
- ✓ Complete headend diagnosis
- ✓ Riser tap & splitter testing
- ✓ Minor repairs on first visit
Commercial dSCR multiswitch installation retrofitted into existing communal risers. Enables Sky Q and Freesat 4K for 8 to 16 flats.
- ✓ Whyte / Triax dSCR multiswitch
- ✓ Earth bar bonding to MET
- ✓ 3-Year Hardware Warranty

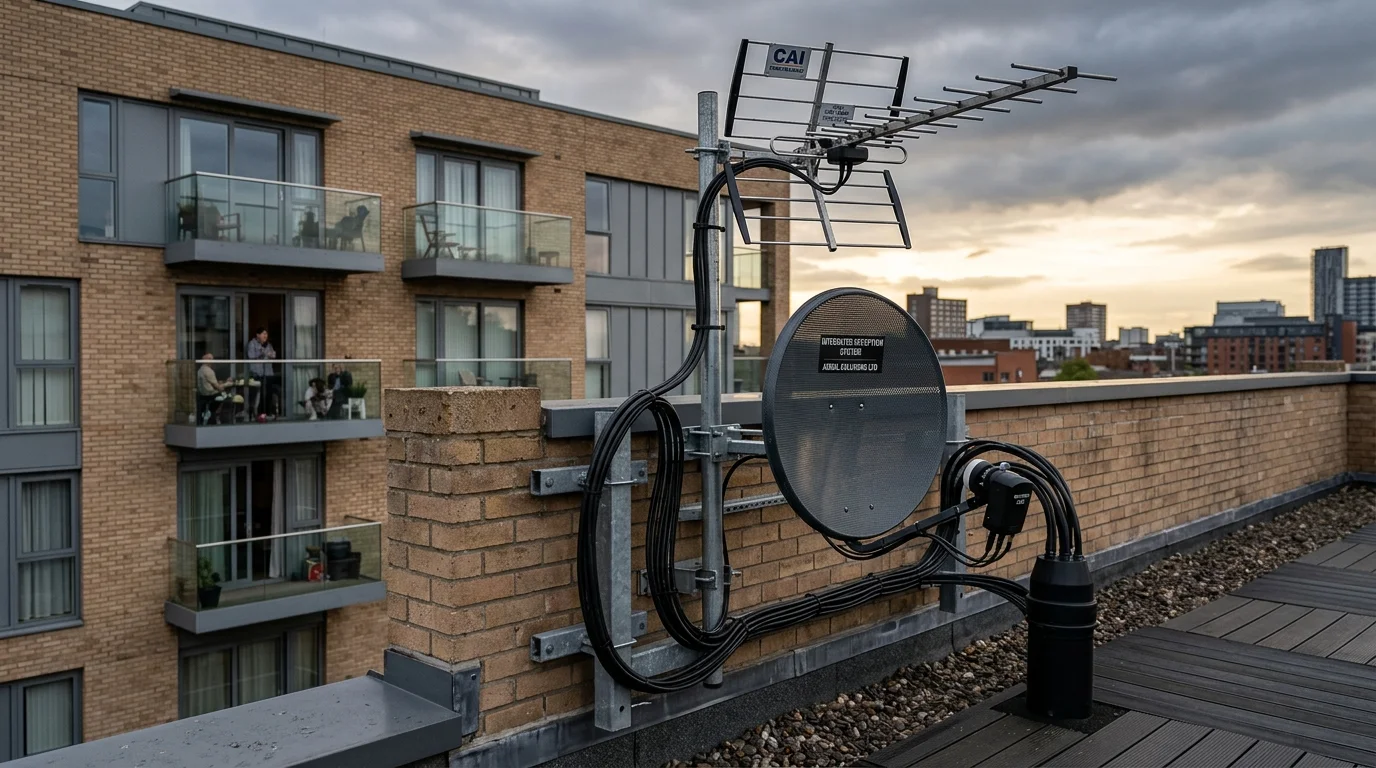

Full Integrated Reception System for small conversions and modern apartment developments. Rooftop array, multiswitch, and cabling.
- ✓ 80cm commercial zone 2 dish
- ✓ High-gain Freeview & DAB aerial
- ✓ Triplex wall sockets in flats
Full-scale commercial IRS installation with launch amplifiers, backbone trunk lines, multiple floor riser cupboards, and full commissioning.
- ✓ Heavy-duty non-drill roof mounts
- ✓ Multi-floor dSCR cascade switches
- ✓ CAI benchmark test certification
Communal Aerials & Multi-Dwelling IRS Systems Across Northern England & Midlands
Commercial Integrated Reception Systems (IRS), MATV, and multi-switch satellite distribution for apartment blocks, housing associations, letting agents, and commercial developments. Gary Pearce operates fully equipped mobile engineering service vans across all 30 primary metropolitan hubs below with rapid dispatch and transparent fixed trade pricing.
West Yorkshire Hub
5 Operating CentresCity Centre, Financial District, University, Little London, Burley, Woodhouse...
City Centre, Little Germany, Eccleshill, Undercliffe, Fagley, Barkerend, Bradford Moor...
Halifax Town Centre, Savile Park, Illingworth, Mixenden, Mount Tabor, Pellon, Boothtown, Hipperholme, Lightcliffe, Northowram, Shelf, Southowram, Skircoat Green...
Huddersfield Town Centre, Hillhouse, Birkby, Brackenhall, Bradley, Deighton, Fartown, Lindley, Marsh, Milnsbridge, Oakes, Paddock, Salendine Nook...
Wakefield City Centre, Alverthorpe, Eastmoor, Sandal, Agbrigg, Belle Vue, Calder Grove, Crigglestone, Lupset, Thornes, Walton, Tingley, Ardsley, Lofthouse, Robin Hood, Stanley...
South & North Yorkshire Hub
4 Operating CentresSheffield City Centre, Highfield, Park Hill, Manor, Neepsend, Netherthorpe...
Doncaster Town Centre, Intake, Wheatley, Belle Vue, Armthorpe, Edenthorpe, Kirk Sandall...
York City Centre, Fishergate, Fulford, Heslington, Osbaldwick, Bishopthorpe, Copmanthorpe, Dringhouses...
Harrogate Town Centre, Bilton, High Harrogate, Duchy, Oatlands, Pannal Ash, Rossett, Saints, Hookstone, Killinghall, Ripley, Hampsthwaite, Birstwith, Spofforth, Follifoot, Pateley Bridge, Nidderdale...
Greater Manchester & Lancashire
8 Operating CentresManchester City Centre, Piccadilly, Northern Quarter, Deansgate, St Ann's Square, Salford, Castlefield...
Preston City Centre, Avenham, Broadgate, Fulwood, Ashton-on-Ribble, Ingol, Ribbleton, Garstang, Longridge, Broughton, Barton...
Blackburn Centre, Brownhill, Ramsgreave, Rishton, Wilpshire, Blackburn West, Mellor, Pleasington, Mill Hill, Witton, Darwen, Lower Darwen, Hoddlesden, Tockholes...
Blackpool Town Centre, North Shore, Bispham, Layton, Marton, Grange Park...
Bolton Centre, Smithills, Halliwell, Heaton, Bradshaw, Breightmet, Harwood, Tonge Fold, Daubhill, Deane, Great Lever, Little Lever...
Oldham Town Centre, Chadderton, Royton, Shaw, Saddleworth, Greenfield, Uppermill, Delph, Dobcross...
Stockport Town Centre, Davenport, Great Moor, Heaviley, Edgeley, Adswood, Bridgehall...
Wigan Town Centre, Haigh, Ince, Swinley, Aspull, Abram, Hindley, Platt Bridge, Worsley Mesnes, Hawkley Hall, Pemberton...
Cheshire, Midlands & North East
13 Operating CentresWarrington Town Centre, Paddington, Woolston, Blackwood, Padgate, Winwick, Fearnhead, Birchwood, Culcheth, Glazebury, Croft...
Chester City Centre, Blacon, Higher Ferry, Backford, Chester, Elton, Hoole, Ince, Mickle Trafford, Moston, Upton, Boughton, Christleton, Huntington, Tarporley, Tattenhall, Waverton...
Crewe North, Haslington, Leighton, Crewe South, Wistaston, Woolstanwood, Audlem, Madeley, Betley...
Nottingham City Centre, Lace Market, West Bridgford, Sneinton, The Meadows, Carlton, Mapperley, St Ann's...
Derby City Centre, Mickleover, Chaddesden, Oakwood, Spondon...
Liverpool City Centre, Baltic Triangle, Commercial District, Vauxhall, Waterfront, Everton...
Hull City Centre, Wincolmlee, Spring Bank, Anlaby Road...
Lincoln Centre, Burton, Saxilby, Bailgate, Cathedral Quarter, Nettleham, Welton, Fiskerton, Reepham, Cherry Willingham...
Newcastle City Centre, Quayside, Jesmond, Gosforth, Kingston Park...
Sunderland City Centre, Ashbrooke, Hendon, Ryhope, Grangetown, Chapelgarth, Doxford Park, Gilley Law, Silksworth, Tunstall...
Durham City Centre, Gilesgate, Shincliffe, Framwellgate Moor, Chester-le-Street, Pelton, Ouston, Chester-le-Street, Birtley...
Darlington Town Centre, Haughton-le-Skerne, Middleton St George, Hurworth, Piercebridge, Mowden, Cockerton, West End, Faverdale...
Middlesbrough Town Centre, Brambles Farm, Thorntree, Park End, Grove Hill, Longlands...
Looking for Your Specific Outward Postcode?
Our engineering vans cover thousands of outward postcodes and rural outlying villages. Explore our complete master coverage directory.
Frequently Asked Questions: Communal Satellite, IRS & Sky Q Systems
Technical, commercial, and practical direct answers covering every aspect of communal television engineering.
What is a communal satellite system?
Direct Answer: A communal satellite system uses a single master satellite dish mounted on the roof of a building to distribute television signals to multiple flats or commercial units via multi-switches and internal coaxial cabling, eliminating the need for individual dishes.
What is an IRS system and what does it stand for?
Direct Answer: IRS stands for Integrated Reception System. It is an all-in-one broadcast distribution infrastructure that delivers digital terrestrial Freeview TV, DAB/FM radio, and satellite signals (Sky Q and Freesat) to every apartment from a single shared aerial and dish array.
Can I get Sky Q if my flat has a communal dish?
Direct Answer: Yes, provided the building distribution system has been updated with a dSCR (digital Single Cable Router) multiswitch. Once installed in the riser cupboard, your Sky Q box will connect and function perfectly over your existing single coaxial cable wall plate.
Why does my Sky Q say “No Satellite Signal” on a communal dish?
Direct Answer: This almost always occurs when the building is still running a legacy multiswitch designed for older Sky+ HD boxes, or the Sky Q box is set to “Wideband LNB” instead of “SCR” in the engineer setup menu.
What is the difference between MATV and IRS?
Direct Answer: MATV (Master Antenna Television) only distributes terrestrial Freeview TV and FM/DAB radio. IRS (Integrated Reception System) distributes terrestrial signals plus full independent satellite reception for every flat.
What is a dSCR multiswitch?
Direct Answer: A digital Single Cable Router (dSCR) multiswitch is a specialized commercial distribution switch that provides up to 16 dynamic user band frequencies down a single coaxial line, enabling full multi-channel recording on Sky Q without pulling second cables.
Who is responsible for maintaining the communal satellite dish in a block of flats?
Direct Answer: The building freeholder, Residential Management Company (RMC), or appointed managing agent is legally responsible for the communal headend, rooftop dishes, riser amplifiers, and distribution backbone.
How many flats can a single communal satellite dish support?
Direct Answer: A properly engineered IRS using launch amplifiers and cascaded dSCR multiswitches can easily support hundreds of flats from a single rooftop dish. In larger campus sites, Fibre IRS (FIRS) can link thousands of units across multiple buildings.
Why does my flat have no signal while my neighbor's TV works fine?
Direct Answer: This indicates an isolated fault rather than a headend failure. Common causes include a tripped output port on the floor riser multiswitch, a loose connector behind the wall plate, or a damaged internal cable drop.
How much does a communal satellite or IRS system installation cost?
Direct Answer: complete supply-and-fit small-block IRS systems (4 to 8 flats) start from £850, medium blocks (12 to 24 flats) range from £2,200 to £4,500, and individual Sky Q dSCR multiswitch riser retrofits start from £385.
Does Sky Q work with a communal aerial?
Direct Answer: No. Sky Q requires a satellite feed from a dish aligned to Astra 28.2°E. A TV aerial only receives terrestrial Freeview signals. However, an IRS system combines both onto the same wall plate.
Can Sky engineers upgrade a communal system for Sky Q?
Direct Answer: Domestic Sky van engineers typically cannot work on communal infrastructure without prior written authorization, RAMS, and keys from the managing agent. Specialist commercial IRS contractors like ADI handle block upgrades directly.
What is a Sky Q plug-in adaptor in a communal riser?
Direct Answer: A plug-in dSCR adaptor (such as a Triax or Global Invacom unit) is a small module retrofitted between existing legacy multiswitch ports and the resident's riser drop cable to convert signals for Sky Q without replacing the whole multiswitch.
How do I change Sky Q settings to SCR mode on a communal dish?
Direct Answer: Go to Settings > highlight Status > press 0, 0, 1 then Select to access the hidden Installer Menu. Select “LNB Type” and switch it from “Wideband” to “SCR”, then restart the box.
Can older Sky+ HD boxes work on the same communal system as Sky Q?
Direct Answer: Yes. Modern dSCR multiswitches auto-detect the connected receiver. If an older Sky+ HD or Freesat box is plugged in, the port automatically switches to legacy universal mode.
What is SMATV and how is it used in hotels?
Direct Answer: SMATV (Satellite Master Antenna Television) takes selected satellite feeds and modulates them into Freeview channels at a central rack. This lets hotels provide premium channels to guest rooms without placing set-top boxes in each room.
What is a launch amplifier in an IRS system?
Direct Answer: A launch amplifier is a high-output headend unit positioned right after the rooftop antennas to boost signal microvolts across all 4 satellite polarities and terrestrial bands before signals enter multi-storey riser distribution.
What cable is required for commercial communal TV risers?
Direct Answer: Commercial risers require CAI-benchmarked copper-foil shielded RG6 or CT100 coaxial cables with Low Smoke Zero Halogen (LSZH) fire-rated outer sheaths meeting BS EN 50083 standards.
What is a triplex wall plate in an apartment?
Direct Answer: A triplex faceplate contains internal passive filters that split the incoming single communal cable into discrete sockets: TV (Freeview), Radio (DAB/FM), and SAT (Sky Q / Freesat).
Can an existing MATV aerial system be upgraded to full IRS?
Direct Answer: Yes. An 80cm commercial satellite dish is added to the roof, a 5-wire or 9-wire backbone trunk is routed into the riser cupboards, and old MATV splitters are replaced with dSCR multiswitches.
Can 4G and 5G mobile phone masts interfere with communal TV?
Direct Answer: Yes. Nearby 700MHz and 800MHz mobile transmissions can overload communal wideband amplifiers, causing pixelation on Freeview HD channels 48 to 60. Fitting cavity band-stop filters completely eliminates this issue.
Why does bad weather cause communal satellite picture break-up?
Direct Answer: Rain fade happens when heavy storm clouds absorb Ku-band microwave signals. If a dish is misaligned or has low MER headroom (< 11dB), picture freeze occurs prematurely. Realignment restores full rain headroom.
What is Modulation Error Ratio (MER) in TV systems?
Direct Answer: MER is the digital equivalent of signal-to-noise ratio. For reliable reception, Freeview DVB-T2 requires an MER of at least 26dB (preferably 32dB+), while satellite transponders should maintain 13dB+ MER.
What does an annual IRS maintenance inspection involve?
Direct Answer: An annual inspection checks rooftop dish alignment, physical bracket security, launch amplifier power output levels, MER on all multiplexes, 4mm² earth bonding to MET, and riser cupboard cleanliness.
Who pays for repairs to a communal TV system in a leasehold property?
Direct Answer: Communal system repairs are paid from the building service charge fund, managed by the managing agent or Residents Management Company (RMC) under standard leasehold covenants.
Why should landlords ban individual satellite dishes on apartment balconies?
Direct Answer: Balcony dishes damage exterior cladding, void building warranties, breach local planning conservation rules, and create liability risks during high winds. A single rooftop communal IRS solves tenant demand safely.
Do you provide written signal reports for insurance and handover?
Direct Answer: Yes. Following any commissioning, upgrade, or annual audit, we provide managing agents with full PDF test certificates detailing signal microvolts, MER, and spectrum constellation plots for every flat.
Can you install communal satellite systems in student accommodation?
Direct Answer: Yes. We engineer heavy-duty MATV and IRS networks for student halls and HMOs, providing tamper-proof wall plates and reliable multi-room Freeview HD distribution.
Can an IRS system be installed in a listed heritage building?
Direct Answer: Yes. We specialize in non-drill roof ballast mounts, chimney cradles, and routing cabling down internal disused service chimneys and risers to preserve exterior historic masonry.
How quickly can Gary Pearce attend a total communal TV outage in an apartment block?
Direct Answer: Emergency fault diagnosis and riser diagnostics can be dispatched same-day or next-day across Yorkshire, Lancashire, and Greater Manchester with truck-stocked commercial parts.
Upgrade Your Communal TV Network or Book a Building Signal Audit
Speak directly with Gary Pearce. 25+ years hands-on commercial systems experience. Fixed written quotes, comprehensive risk assessments, method statements (RAMS), and full insurance backed guarantees.
Complete Physical Engineering & Diagnostic Guide: Communal Aerials & IRS Multi-Dwelling TV Systems
Across Yorkshire, Lancashire, Greater Manchester, Cheshire, Humberside, Nottinghamshire, and Teesside, homeowners and commercial facility managers rely on ADI Communications for physical low-voltage engineering that performs reliably for 10 to 15+ years. Whether you are researching Communal Aerials & IRS Multi-Dwelling TV Systems, planning a domestic security or connectivity upgrade, or diagnosing an intermittent signal or network fault, understanding the physical layer—cabling conductors, optical physics, radio-frequency attenuation, and structural wall fixings—is essential to avoiding costly mistakes.
Unlike national call-centre franchises and lead-generation directories that subcontract work to unvetted handymen using cheap Copper-Clad Aluminium (CCA) wire and indoor-grade plastic plugs, Lead Engineer Gary Pearce carries out every site survey, physical installation, and calibrated meter test personally. With over 25 years of hands-on trade experience since 1999 and formal NVQ qualifications across Aerials & Satellite (Level 1–3), Data Cabling & Fibre (Level 1–4), Electrical (Level 1–3), and CCTV Security Systems, our engineering protocols are built around British Standards (BS EN 62676-4, BS 5839-6, BS 7671, and EN 50131 Grade 2).
100% Solid Bare Copper Cabling (Zero CCA)
Every metre of external and internal cable we install—whether Cat6/Cat6A Ethernet for PoE security cameras and Wi-Fi 6 access points, or CAI-benchmarked WF100 twin-screened foam-dielectric coaxial cable for Freeview HD and satellite feeds—uses 100% solid 23AWG/24AWG oxygen-free bare copper. Solid copper prevents IEEE 802.3af/at PoE voltage drop over long runs, eliminates high-frequency RF skin-effect attenuation, and resists brittle snapping or galvanic corrosion inside damp exterior junction boxes.
Engineered Fixings for Stone, Brick & Drywall
Northern and Midland properties span Victorian millstone grit, Yorkshire sandstone, Accrington engineering brick, lime-mortar cobbles, and modern dot-and-dab insulated plasterboard. We match every bracket to the exact wall substrate: heavy-duty hot-dip galvanised Pennine storm brackets and twin stainless-steel chimney lashing cradles for rooftop Starlink and aerial masts; steel-cored CoreFix 100 dot-and-dab bridge anchors and M6 SnapToggle hollow-wall toggles (rated to 120kg) for large-screen OLED/QLED TV wall mounting.
Fluke Networks & Spectrum Analyser Testing
Guesswork has no place in professional telecommunications. Before any job is signed off, we verify physical-layer performance using calibrated instruments: Fluke Networks cable verifiers for Cat6/Cat6A wiremap continuity, pair skew, and PoE load voltage under night-time LED surge; digital RF spectrum analysers measuring Modulation Error Ratio (MER ≥ 32dB) and pre-Viterbi Bit Error Ratio (BER) across UHF Freeview multiplexes; and SpaceX Starlink 110° phased-array sky-obstruction telemetry.
Domestic Home Priority vs Commercial & Industrial Specification
Over 70% of our day-to-day work across Yorkshire and the North West involves domestic residential homes—terraced properties, semi-detached family houses, detached executive homes, rural farmhouses, and residential apartments. In a domestic setting, homeowners care deeply about two things: rock-solid reliability and spotless aesthetics. Nobody wants ugly white cables draped over roof tiles, trailing across bay windows, or tacked loosely along internal skirting boards. When Gary Pearce installs a 4K CCTV system, SpaceX Starlink dish, Cat6 Ethernet point, or wall-mounted television in your home, exterior cables are matched to your brickwork or render (black, white, or brown UV-stabilised PE sheath), tucked behind rainwater downpipes, and drilled on an upward internal incline with a weather-shedding drip loop and high-modulus silicone seal.
We also provide full installation and troubleshooting support for customer-supplied equipment. Many homeowners purchase a Hikvision, HiLook, Swann, Reolink, Annke, TP-Link Tapo, EZVIZ, Ring, or Eufy kit online or from a retail store, only to discover that working safely at roof height, drilling through 18-inch stone walls, crimping 8-pin RJ45 connectors, or configuring router port-forwarding and NVR storage requires specialist trade tools. Whether you want us to supply and fit a complete trade-grade system or professionally install hardware you have already bought, you receive the exact same calibrated testing and workmanship care.
For commercial clients—including retail shops, hotels, B&Bs, pubs, restaurants, car parks, apartment blocks, student HMOs, warehouses, farms, caravan parks, and construction sites—we scale up to industrial specifications. Commercial deployments incorporate NDAA-compliant Uniview, Dahua WizMind, and Hikvision AcuSense/DarkFighter hardware, 25x–42x optical zoom auto-tracking PTZ domes, dedicated ANPR number-plate recognition lanes, dSCR communal IRS satellite multiswitches, EN 54 / BS 5839-6 Grade D1 interlinked wireless fire detection, and rack-mounted 19-inch Cat6A patch panels—all backed by £10 Million Public Liability Insurance and full RAMS documentation.
ADI Communications UK Trade Engineering & Hardware Specification Matrix
Side-by-side comparison of physical cabling, mounting hardware, compliance standards, and diagnostic verification across our core low-voltage disciplines.
| Engineering Discipline | Primary Hardware & Brands | Cabling & Fixing Standard | UK Compliance & Verification |
|---|---|---|---|
| 4K / 3K / 8K CCTV Installation | Hikvision ColorVu, Dahua TiOC, Uniview, SPRO, Qvis, Reolink, Swann, HiLook, Tapo, EZVIZ | 100% Pure Copper Cat6 PoE (IEEE 802.3af/at), IP66 Alloy Junction Boxes | BS EN 62676-4 (250 px/m DORI), ICO Domestic GDPR Privacy Masking |
| SpaceX Starlink Gen 3 & Mini | Starlink Gen 3 Standard Actuated/Flat Phased-Array, Gen 2, Starlink Mini, Bypass Adapters | 18″ Stainless Chimney Lashing Cradles, Galvanised Pennine 90mph Storm Brackets | 0.0% Sky Obstruction Telemetry, 150–350 Mbps Speed & 24ms Ping Test |
| Ajax Smart Intruder Alarms | Ajax Hub 2 Plus, MotionCam (PhOD) 0.15s HDR, DoorProtect Plus, StreetSiren DoubleDeck | 2,000m Encrypted Jeweller & Wings Radio + Hybrid Fibra 4-Core Bus Cabling | BS EN 50131 Grade 2 Insurance Approved, Dual-Path Ethernet + Roaming 4G SIM |
| Cat6A Data Cabling & Mesh Wi-Fi | Ubiquiti UniFi U6+, TP-Link Deco & Omada, Amazon eero Pro 6E, DrayTek, Netgear PoE+ | 23AWG Solid Copper Cat6/Cat6A, LSZH Indoor, PE Outdoor & SWA Armoured Direct-Burial | TIA/EIA-568B Termination, Fluke DSX Wiremap, PoE Load & Wi-Fi dBm Heatmap |
| TV Wall Mounting (43″–98″) | Samsung The Frame, LG OLED Evo, Sky Glass Gen 2, Sanus, Peerless-AV, Vogel’s | CoreFix 100 Steel Dot-and-Dab Anchors, M6 SnapToggles (120kg), Fischer Resin Studs | Laser-Level Alignment, Pull-Load Testing & Safe Zone In-Wall Cable Concealment |
| Digital TV Aerials & Communal IRS | CAI-Benchmarked Log-Periodic & Yagi Aerials, Triax/ Johansson dSCR Multiswitches | WF100 Twin-Screened Copper Coax, Compression F-Connectors, 700/800MHz LTE Filters | Spectrum Analyser MER (≥ 32dB) & BER Verification Across All Freeview Multiplexes |
| Wireless Fire Alarms, Doorbells & Telecoms | Ajax FireProtect 2, Ring, Reolink PoE, Eufy, Openreach NTE5C Mk4 Master Sockets | 10-Year Sealed Lithium Cells, 24V DIN-Rail Transformers, CW1308 & Dropwire 10 Gel Crimps | BS 5839-6:2019 Grade D1 HMO Compliance, Commercial EN 54 & Line Insulation Tests |
ADI Communications Canonical UK ‘From’ Pricing Ledger (2026)
Single-source transparent pricing across all domestic and commercial services. Every installation includes calibrated testing, mobile app setup, and our workmanship guarantee.
| Service Category | Canonical ‘From’ Price | What Is Included in Standard Fitting | Warranty & Ongoing Fees |
|---|---|---|---|
| Customer-Bought CCTV Kit Installation | From £199 + VAT | Physical mounting of your cameras (Hikvision, Swann, Reolink, Tapo), pure copper cabling, NVR & app setup | 3-Yr Workmanship • £0 Monthly Fee |
| Supply & Fit 4K ColorVu / TiOC CCTV Packages | From £299 / £495 + VAT | 1 to 4+ 4K ColorVu/TiOC PoE cameras, WD Purple NVR, pure copper Cat6 cabling, junction boxes & smartphone app | 3-Yr Warranty • £0 Monthly Fee |
| SpaceX Starlink Gen 3 Roof / Chimney Installation | From £199 + VAT | Heavy-duty galvanised wall/apex bracket or non-drill chimney cradle, concealed cable routing & obstruction check | 3-Yr Mount Warranty • 90mph Rated |
| Digital TV Aerial Installation & Storm Repairs | From £129 + VAT | CAI-benchmarked high-gain Freeview HD aerial, alloy mast, 4G/5G LTE filter, WF100 copper coax & meter alignment | 3-Yr Parts & Labour Warranty |
| Professional TV Wall Mounting (43″–98″) | From £89.99 + VAT | CoreFix 100 or SnapToggle steel structural fixings, laser levelling, bracket attachment & cable dress | 3-Yr Structural Fixing Guarantee |
| Ajax Grade 2 Smart Wireless Intruder Alarms | From £545 / £599 + VAT | Ajax Hub, MotionProtect/MotionCam pet-immune sensors, DoorProtect contacts, StreetSiren & smartphone app | 3-Yr Warranty • £0 Monthly Fee |
| Cat6 / Cat6A Data Cabling & Whole-Home Mesh Wi-Fi | From £129 / £149 + VAT | Solid copper Cat6/Cat6A Ethernet point or hardwired PoE Wi-Fi 6 access point with Fluke continuity certification | 3-Yr Cabling & Termination Warranty |
| Telephone Engineer, Cable Repairs & Video Doorbells | From £79 / £85 + VAT | Master socket relocation/repair, severed coax/Cat6 weatherproof splicing, or hardwired smart video doorbell fitting | 3-Yr Workmanship Guarantee |
Frequently Asked Questions: Communal Aerials & IRS Multi-Dwelling TV Systems
Who carries out the installation and diagnostic work at ADI Communications? +
Can you install CCTV cameras, Starlink dishes, or smart doorbells that I have already bought myself? +
Why do you insist on 100% solid bare copper Cat6 and WF100 coaxial cable instead of cheaper CCA wire? +
Are there any mandatory monthly subscription fees for your CCTV or Ajax alarm systems? +
Which UK regions and postcode districts does ADI Communications cover? +
How do you mount heavy TVs safely onto modern dot-and-dab or hollow plasterboard walls? +
How do you protect slate and rosemary tile roofs when installing SpaceX Starlink or TV aerials? +
What is the best way to get fast Wi-Fi into a garden office, summerhouse, or outbuilding? +
Are your commercial and HMO installations fully insured and compliant with UK regulations? +
What warranty do you provide on your installations and repairs? +
Regional Field Engineering Standards Across Yorkshire, Lancashire & the North
Every property across Northern England and the Midlands presents distinct environmental, structural, and radio-frequency conditions. On high-altitude Pennine properties across Saddleworth, Holmfirth, Hebden Bridge, Todmorden, Skipton, Ilkley, and Harrogate, rooftop SpaceX Starlink Gen 3 dishes and digital Freeview HD aerials face winter wind gusts exceeding 80 to 90mph alongside driving sleet and horizontal rain. Standard lightweight alloy brackets or single-band chimney straps twist out of alignment during the first autumn gale. That is why our rooftop installations use heavy-gauge 2-inch steel masts, twin 18-inch stainless steel chimney lashing cradles tensioned with 5mm galvanised wire, and hot-dip galvanised stand-off wall brackets anchored into solid mortar courses with M10 bolts.
Inside heritage Victorian and Edwardian stone terraces, converted mills, and rural farmhouses across Leeds, Bradford, Wakefield, Sheffield, Huddersfield, York, Manchester, Bolton, Blackburn, and Preston, 18-inch solid stone internal walls and foil-backed Celotex cavity insulation block 5GHz and 6GHz wireless signals completely. Relying on wireless-only plug-in Wi-Fi boosters or battery-powered security cameras in these properties leads to constant dropouts and missed motion events. By routing discrete, UV-stabilised external or internal 100% solid bare copper Cat6 and Cat6A Ethernet links from your primary router to hardwired ceiling access points (Ubiquiti UniFi, TP-Link Omada, Deco, or eero Pro) and PoE security cameras, we deliver full Gigabit speeds and unshakeable 24/7 recording into every room and outbuilding.
On modern new-build housing estates across Doncaster, Rotherham, Barnsley, Pontefract, Castleford, Warrington, Stockport, Hull, Scunthorpe, Grimsby, Mansfield, and Teesside, internal walls are almost universally constructed from 12.5mm dot-and-dab plasterboard bonded over thermalite breeze blocks or lightweight metal studwork. Hanging a 65-inch, 75-inch, or 85-inch OLED, QLED, or Sky Glass television on standard plastic rawlplugs risks pulling the plasterboard away from the wall. Our TV wall mounting service uses steel-cored CoreFix 100 dot-and-dab anchors that bridge the cavity air gap directly into the load-bearing blockwork, paired with M6 SnapToggle hollow-wall toggles rated to 120kg and concealed in-wall brush plates so not a single HDMI or power lead is visible.
Whether you are booking a domestic home upgrade, an installation of customer-supplied CCTV or Starlink hardware, an emergency coaxial or Cat6 cable splice repair, an independent Openreach NTE5C master socket relocation, or a multi-camera commercial and HMO compliance project, you deal directly with Lead Engineer Gary Pearce from your initial telephone enquiry right through to final calibrated testing and handover.
