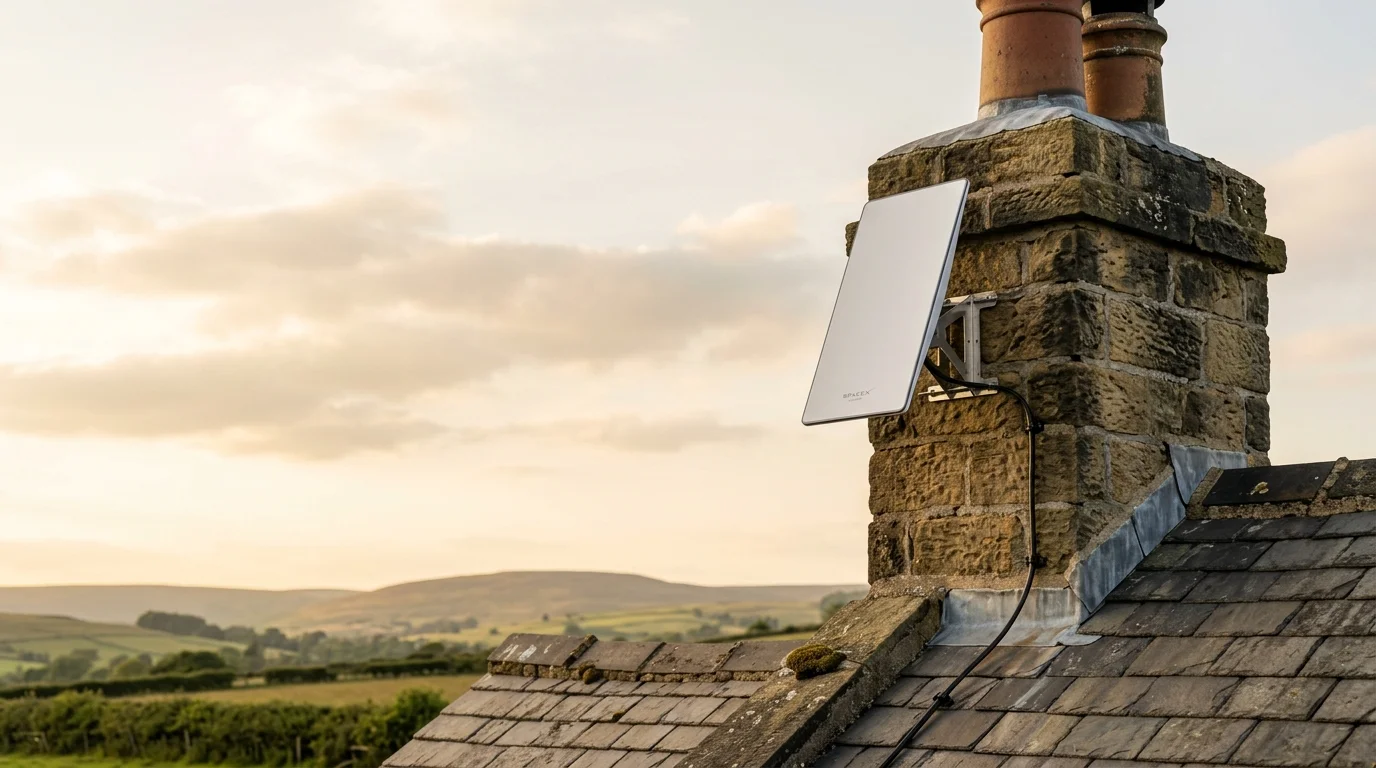

Phased-Array Antenna Mounting & Structural Hardware

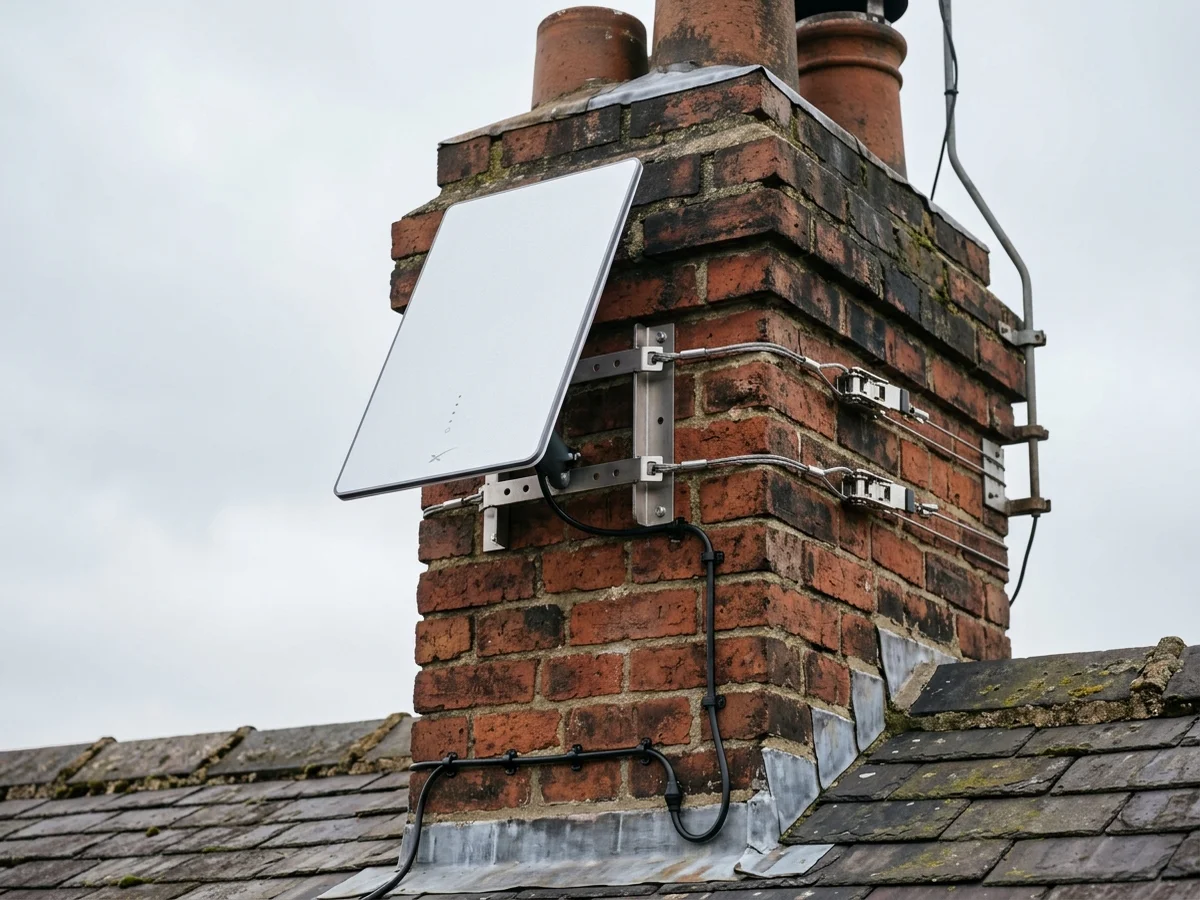

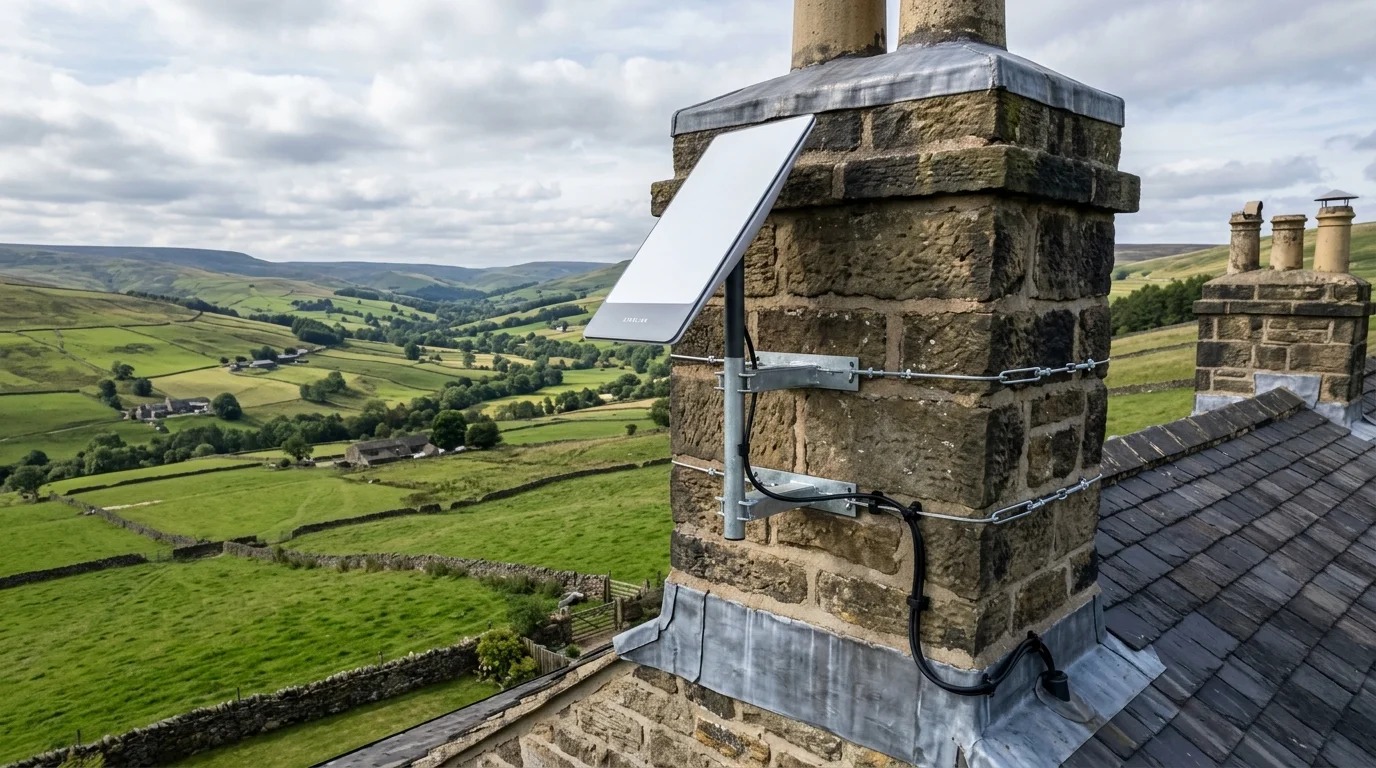

ADI Communications provides master installation of SpaceX Starlink Gen 2 and Gen 3 Standard and High-Performance satellite dishes. To guarantee maximum orbital throughput and clear line-of-sight sky view, our lead engineer Gary Pearce uses custom heavy-duty galvanised steel chimney cradle mounts, stand-off wall brackets, and non-penetrating ridge mounts. Every installation is secured with stainless steel fixings and high-tensile ratchet lashing that protects chimney brickwork and lead flashing without invasive masonry drilling.

High-Speed Throughput & Weatherproof Cabling Architecture

We route external-grade UV-shielded Cat6 cabling through silicone weather-sealed grommets directly into your property's communication hub. Our installations achieve typical real-world speeds of 150–350Mbps with ultra-low latency between 20ms and 35ms—delivering flawless 4K HDR streaming, competitive online gaming, and seamless video conferencing across rural properties, detached farmhouses, and commercial outbuildings that have zero access to traditional BT Openreach fibre.

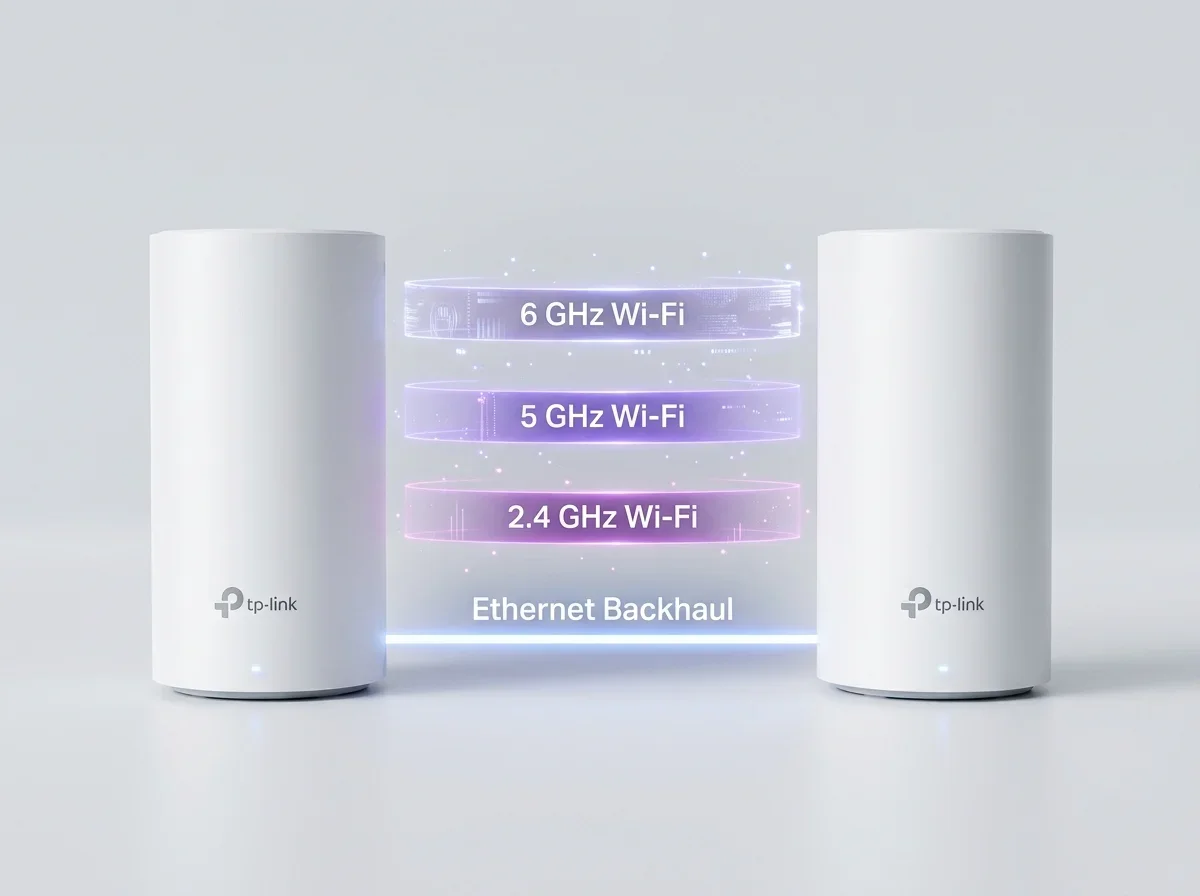

Mesh Network Distribution & Regional Coverage

We integrate Starlink ethernet adapters into high-performance mesh Wi-Fi 7 systems (Ubiquiti UniFi, TP-Link Omada) and hardwired switches to eliminate dead zones across large properties. Serving all regional postcodes across the North of England & Midlands (Leeds LS, Wakefield WF, Bradford BD, Huddersfield HD, Halifax HX, York YO, Sheffield S), Lancashire (Manchester M, Bolton BL, Oldham OL, Preston PR), Humberside (Hull HU, Grimsby DN), Nottinghamshire (NG), and Teesside (TS, DL). Complete installations start from £199+VAT (or £249+VAT when Gary supplies bracket and cable) with same-day engineer dispatch available.

EN 50131 Grade 2 Insurance Certification & Anti-Jam Architecture

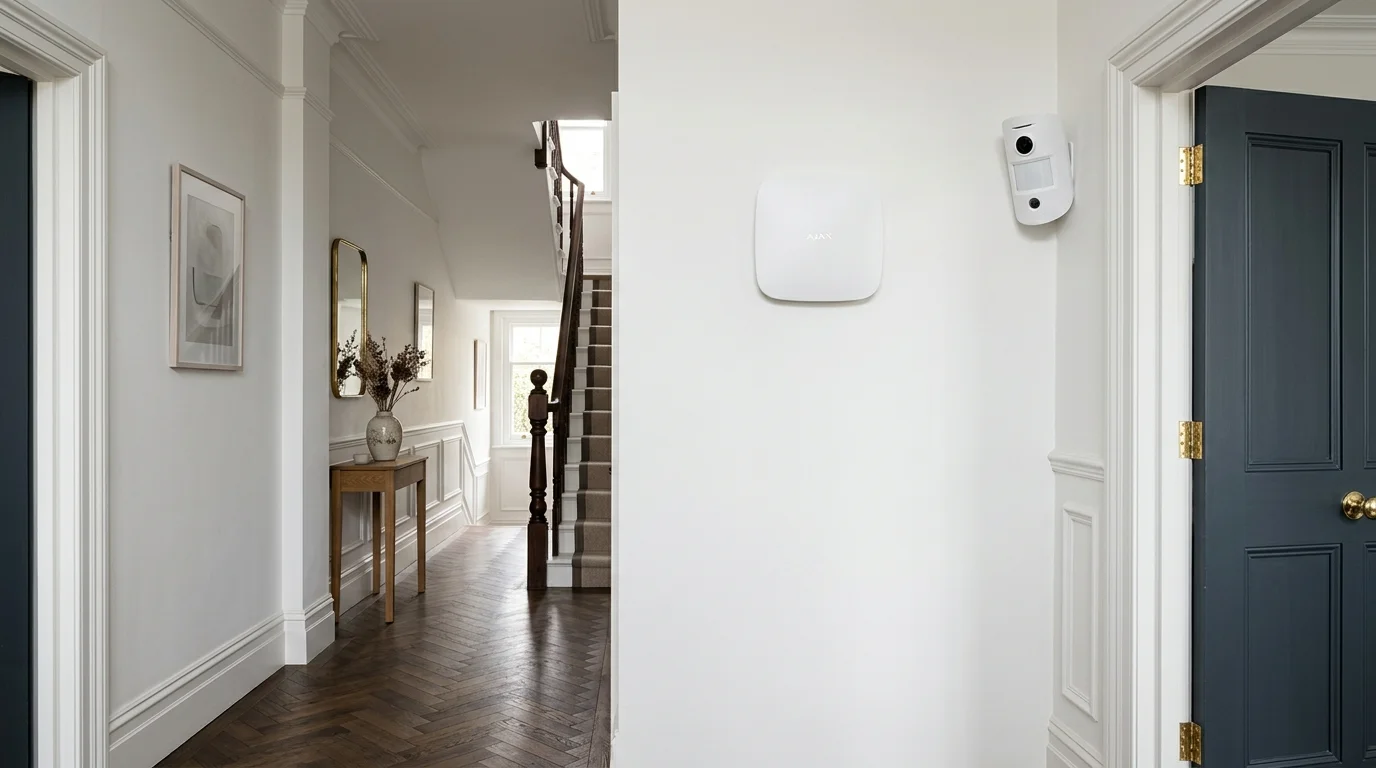

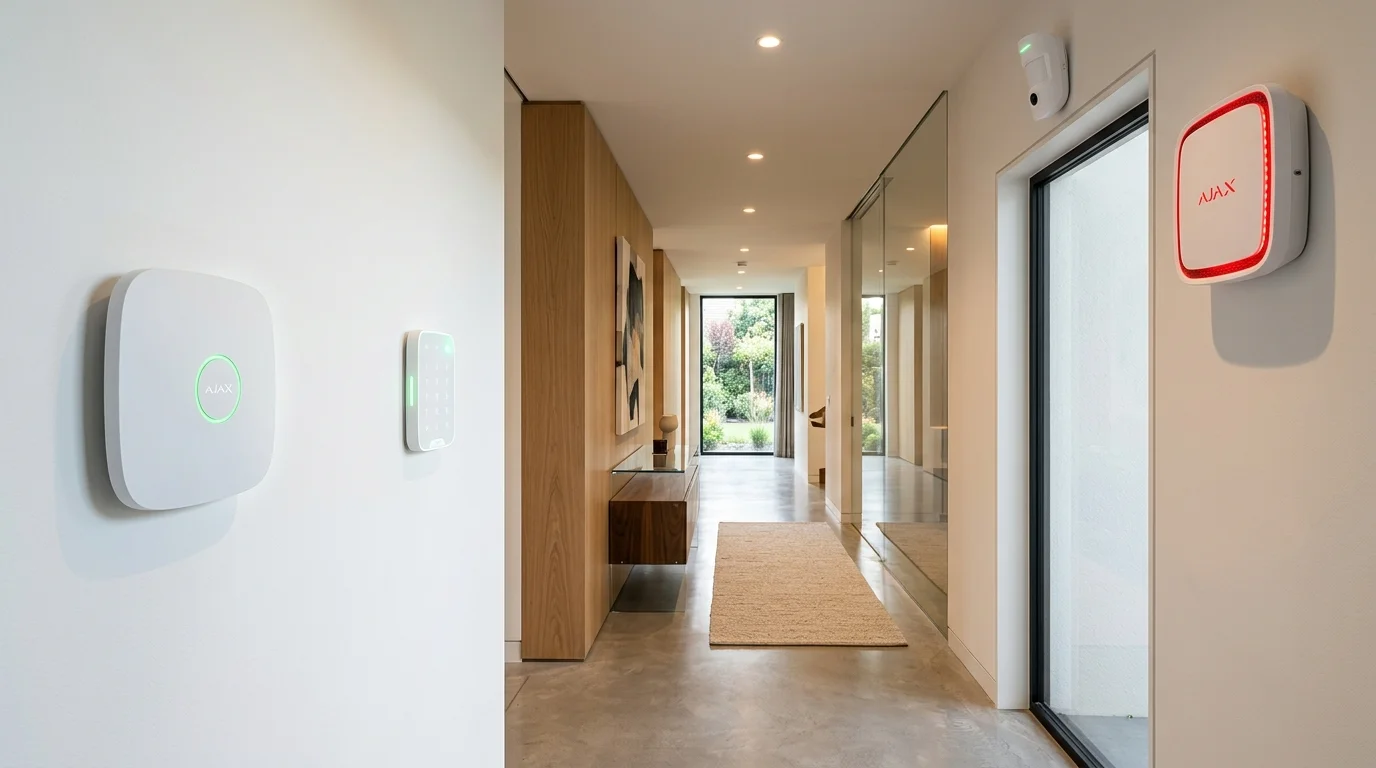

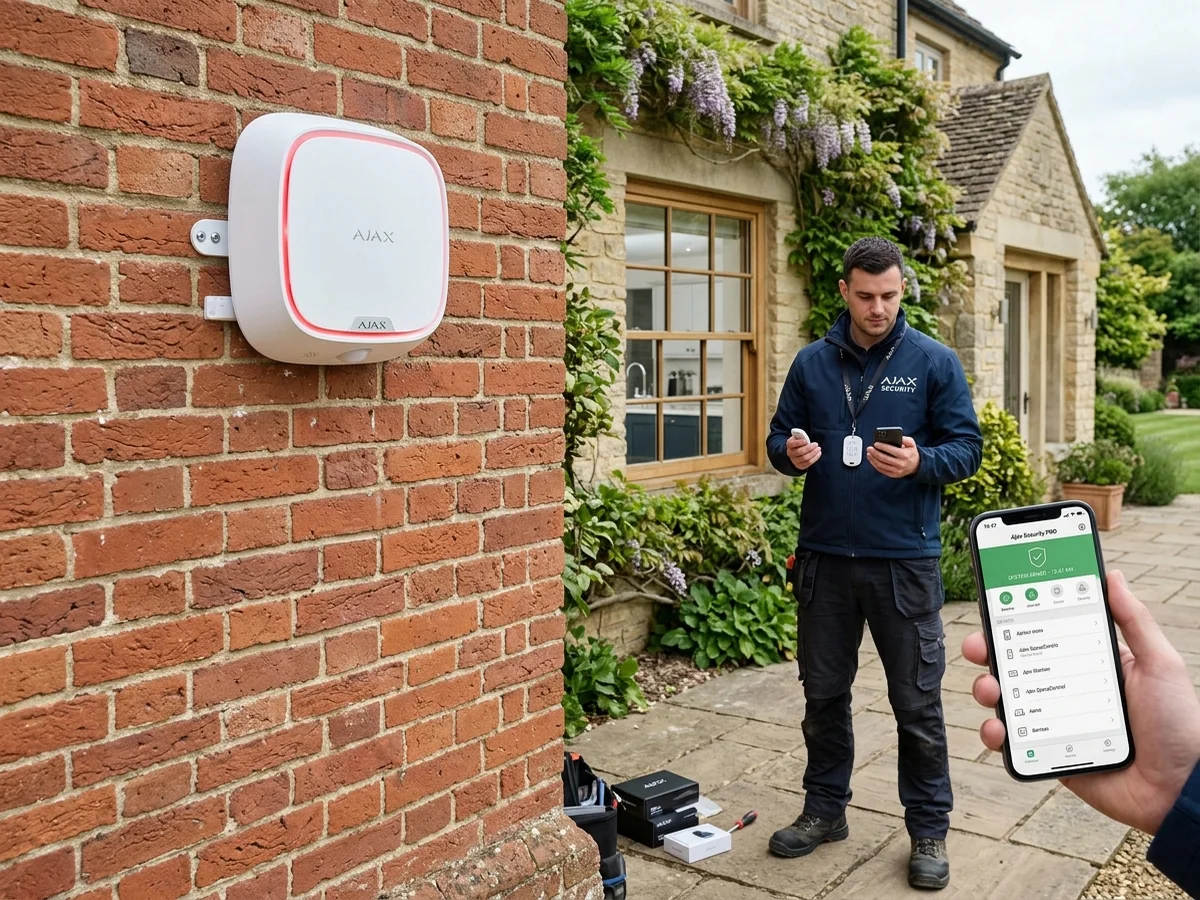

ADI Communications installs authentic European EN 50131 Grade 2 certified Ajax smart wireless security networks. Operating on proprietary dual Jeweller and Wings radio protocols, the Ajax Hub 2 Plus communicates with sensors up to 2,000 metres away across 868MHz frequencies with automatic frequency-hopping that bypasses domestic Wi-Fi congestion and immediately triggers external sirens if radio jammer signals are detected.

MotionCam PIR Photo Verification in Under 0.15 Seconds

Unlike traditional blind bell-only alarms that cause disruptive neighborhood complaints and police fines from false triggers, Ajax MotionCam detectors incorporate specialized optics and an integrated camera. Upon human intrusion detection, it takes an animated series of 1 to 5 photos and transmits them to your iOS or Android device over encrypted radio in just 0.15 seconds—allowing you or an ARC monitoring station to verify the threat immediately.

Zero Subscription Fees & Dual Path Redundancy

Ajax operates independently without requiring monthly cloud contracts. The central hub connects simultaneously via Gigabit Ethernet, Wi-Fi, and dual 2G/3G/4G LTE SIM cards, ensuring unbroken communication even if your home broadband is cut or power is disconnected. Backed by up to 16 hours of internal battery backup and 7-year sensor battery life. Turnkey packages start from £545 installed.

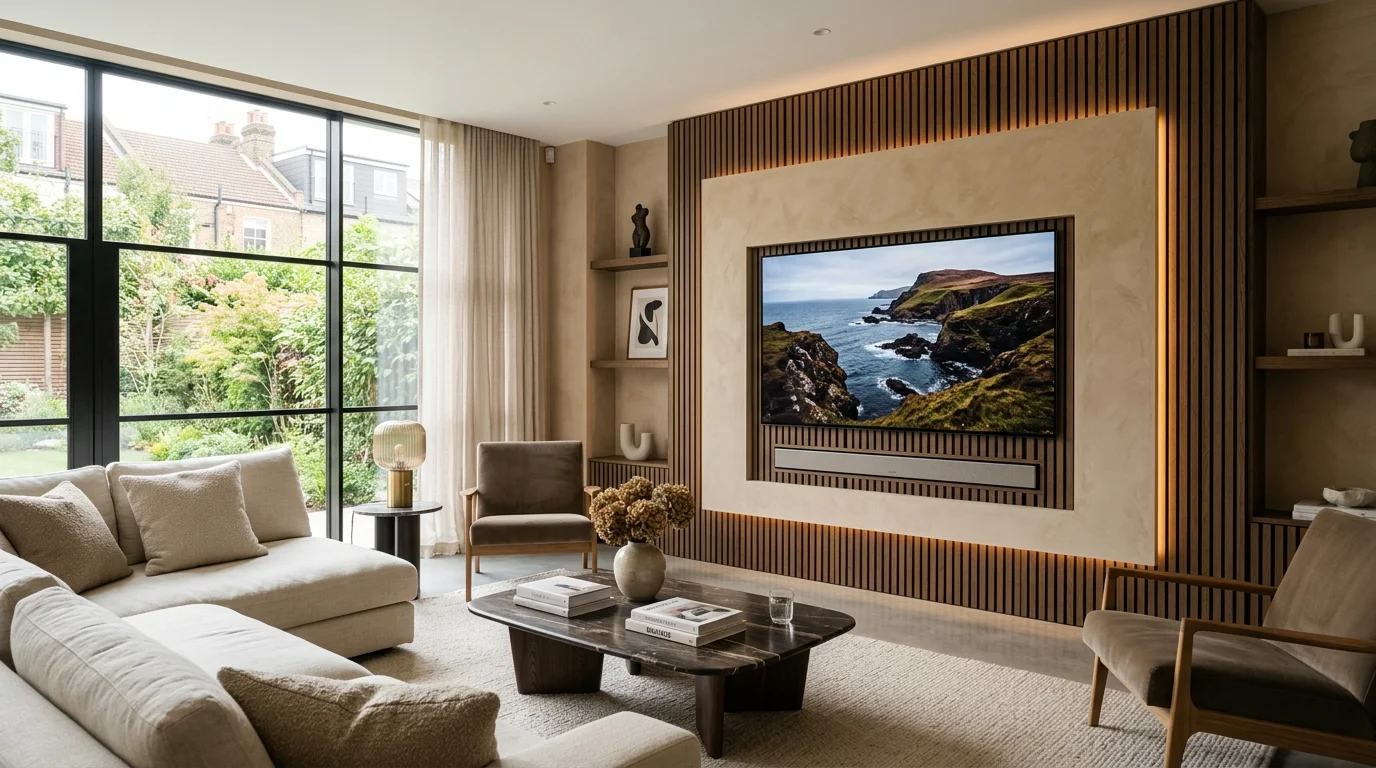

120kg Solid Steel SnapToggle Plasterboard Anchors

ADI Communications provides master television wall mounting for screens from 32 inches up to 100 inches on hollow drywall, plasterboard, timber studwork, and solid masonry. We use genuine heavy-duty SnapToggle solid steel anchor channels that distribute tensile and shear loads across a 360-degree surface area behind the plasterboard, tested to support over 120kg with zero risk of wall pull-out or plaster cracking.

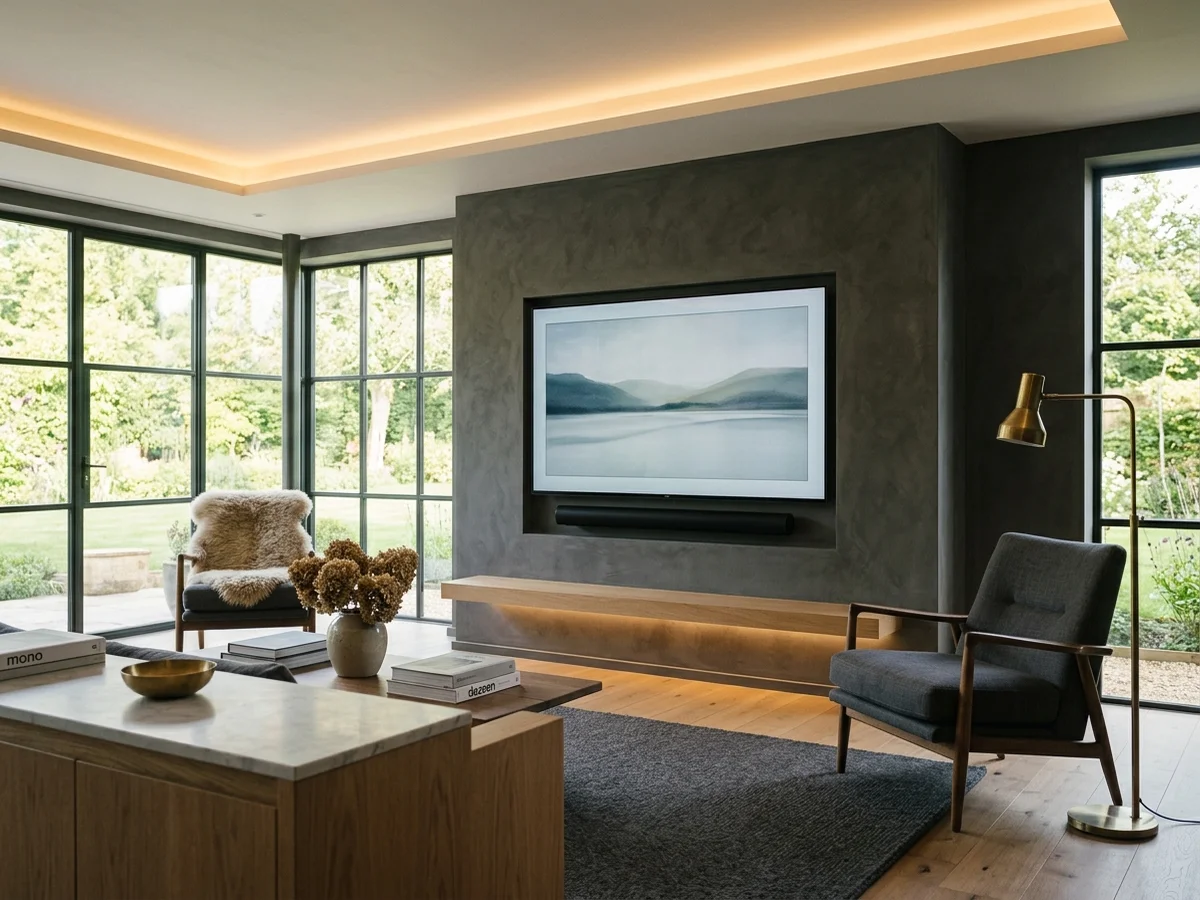

100% In-Wall Cavity Cable Concealment & Power Relocation

We eliminate ugly dangling wires by chasing cabling through internal wall cavities or stud voids. Using brushed metal exit plates, we feed high-speed 48Gbps HDMI 2.1 leads, optical audio cables, power cords, and ethernet lines directly to your AV cabinet or media unit. Where power sockets are missing, we professionally relocate unswitched socket outlets directly behind the television screen for a seamless gallery aesthetic.

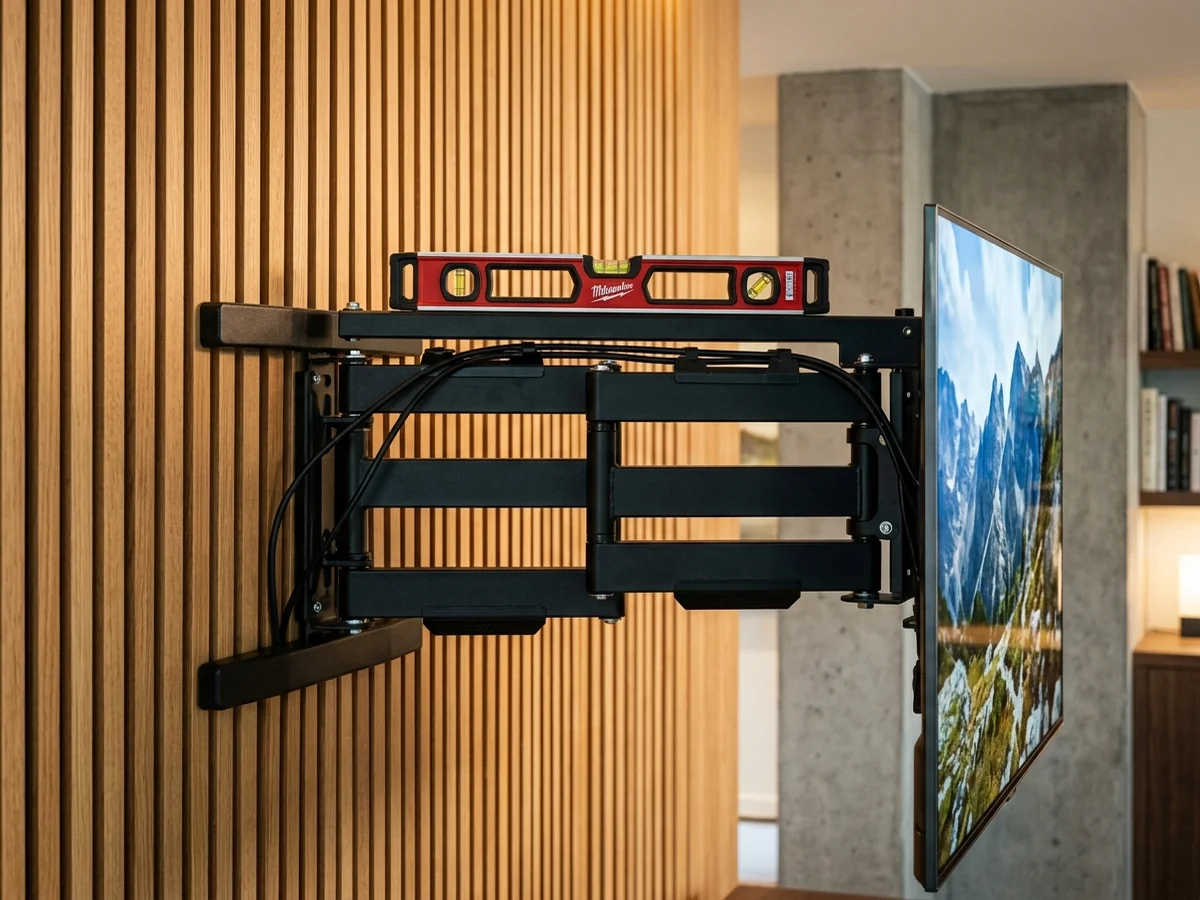

Ultra-Slim Flush, Tilting & Heavy-Duty Cantilever Brackets

We supply and fit premium low-profile brackets sitting just 15mm from the wall, multi-angle tilting brackets to eliminate glare, and heavy-duty dual-arm articulating cantilever mounts supporting VESA patterns from 200x200 to 800x600. Specialized expertise in ultra-flush mounting for Samsung The Frame TVs (recessed One Connect box cavity) and LG OLED Gallery Series screens. Packages start from £89.

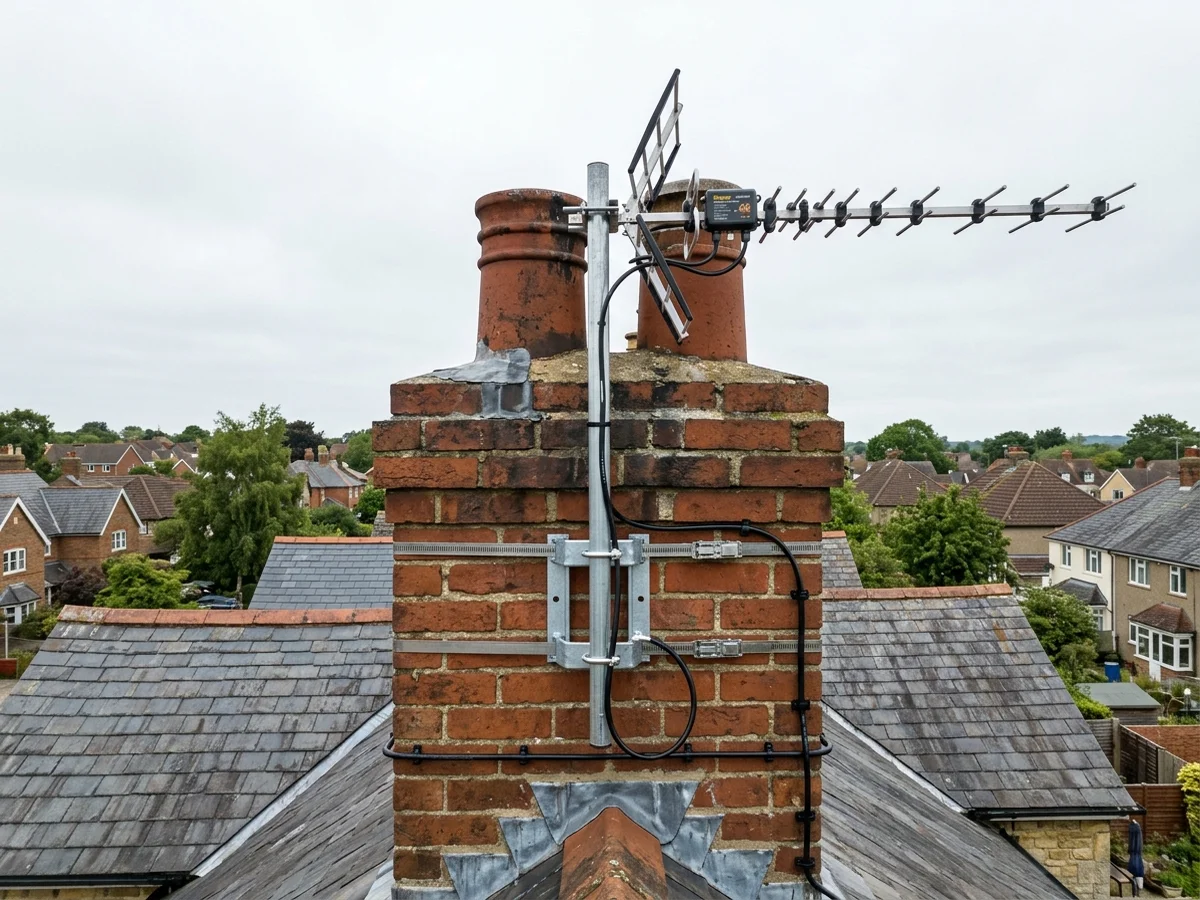

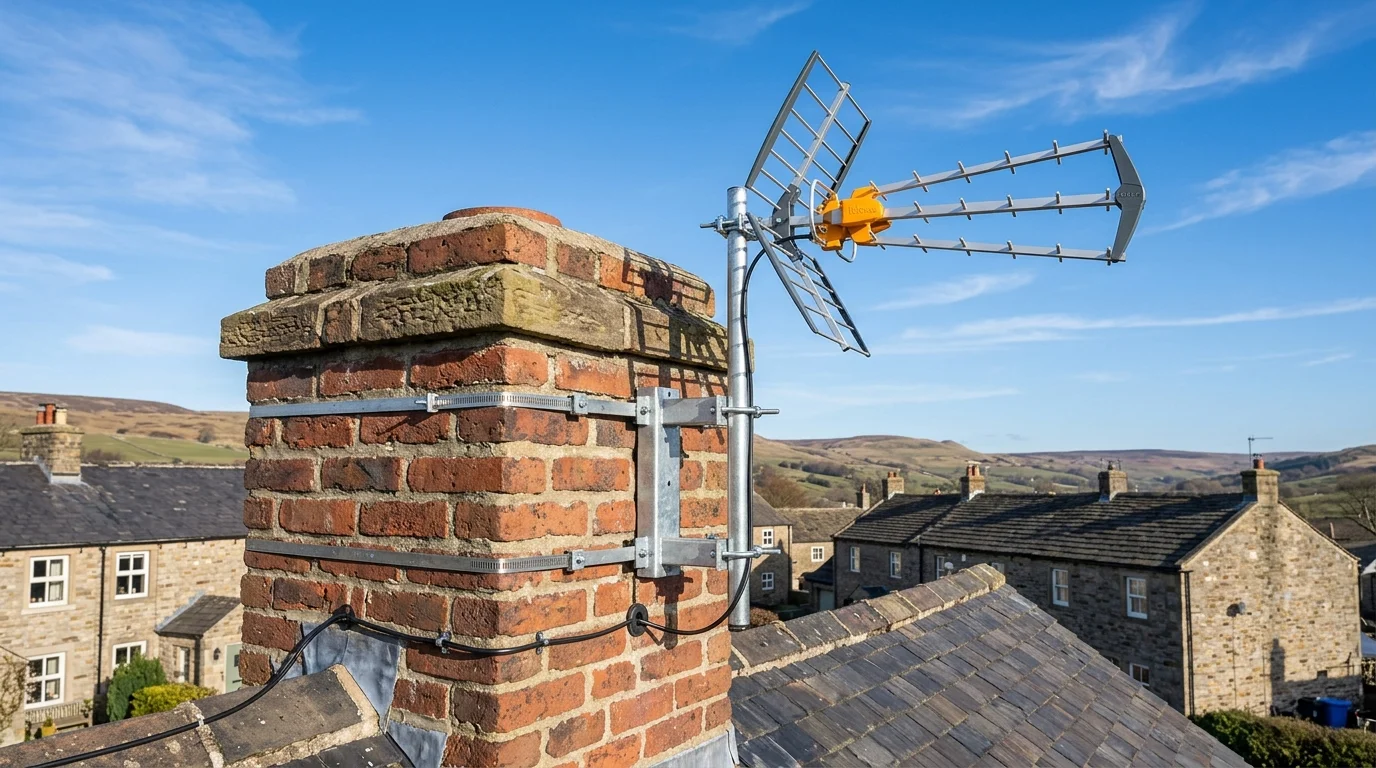

Emley Moor Transmitter Spectrum Alignment & Calibration

ADI Communications provides benchmarked digital TV aerial installations and repairs tuned precisely to the Emley Moor Group K/T transmitter (and secondary local relay transmitters across the North of England & Midlands, Lancashire, and Humberside). Using professional Promax digital spectrum analyzers, our lead engineer Gary Pearce aligns antenna azimuth and elevation to lock in the optimal £65–70 dBµV digital signal window with Carrier-to-Noise Ratio (CNR) > 28dB and Bit Error Rate (BER) < 1x10-4.

Integrated 700MHz & 800MHz 4G/5G LTE Interference Filters

Mobile telephone networks transmitting on 700MHz and 800MHz frequencies frequently cause severe pixelation, audio popping, and missing Freeview HD multiplexes on standard TV aerials. We install high-rejection LTE masthead filters featuring Surface Acoustic Wave (SAW) passband technology that blocks all cellular interference while passing 100% of Freeview HD television broadcasts cleanly.

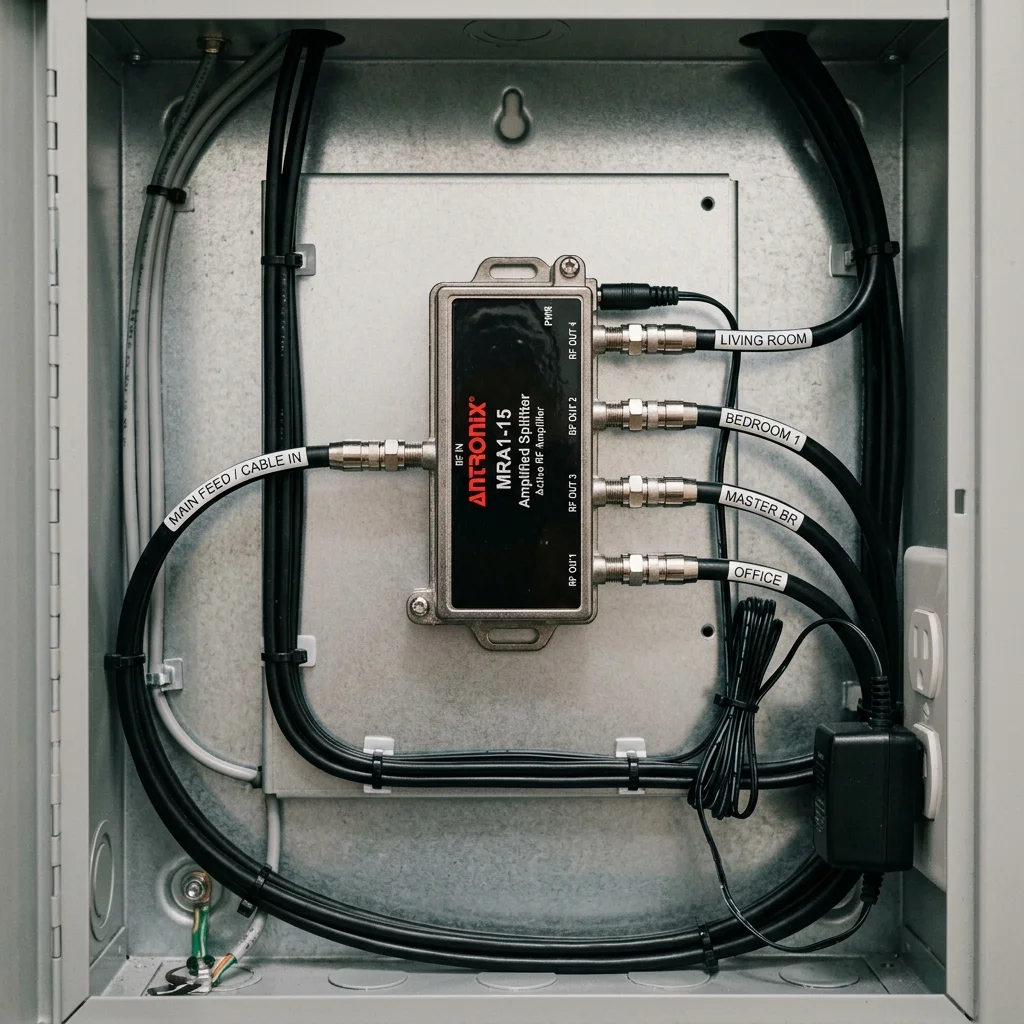

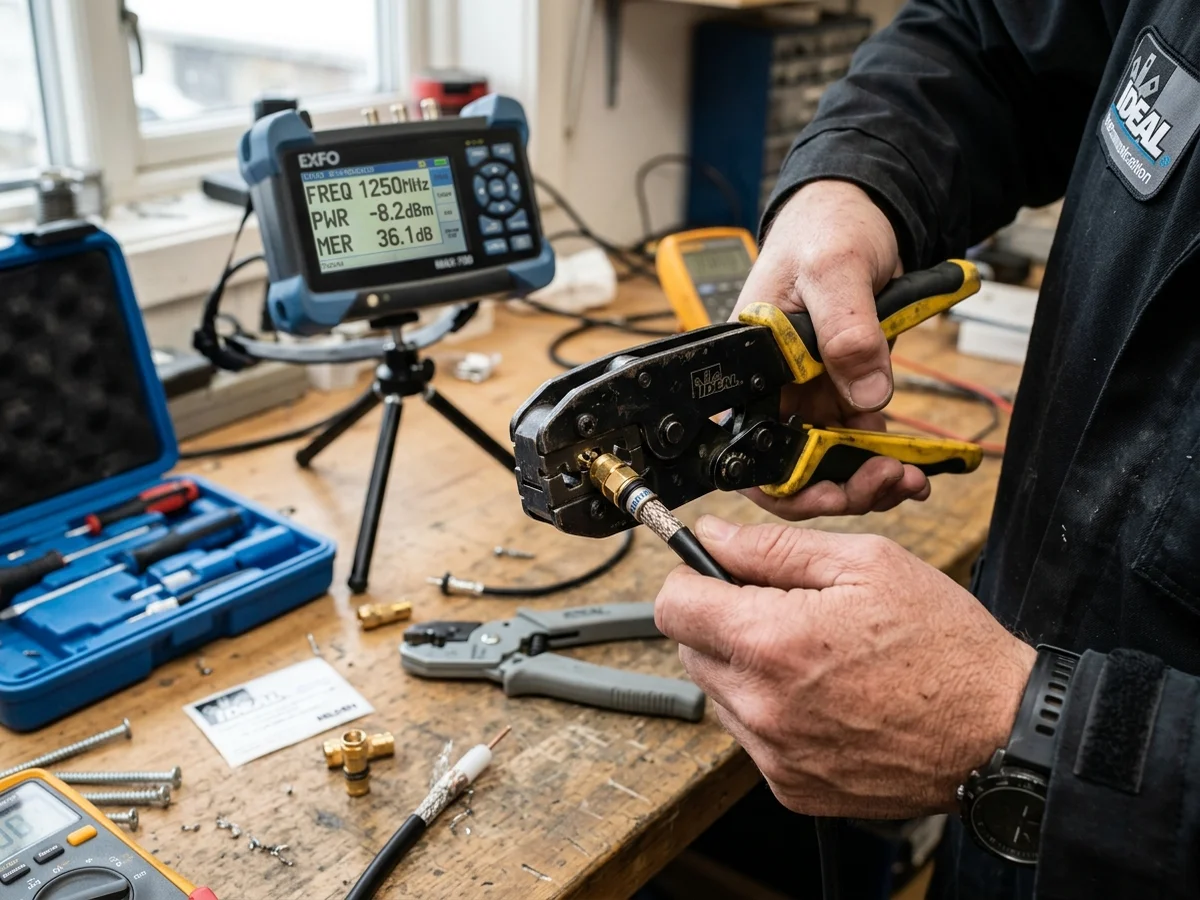

Shielded Distribution Amplifiers & Webro WF100 Coaxial Runs

We route double-screened pure copper Webro WF100 coaxial cabling through roof spaces and wall cavities to screened multi-way distribution splitters and masthead amplifiers—distributing perfect high-definition digital TV and DAB/FM radio signals to all bedrooms, lounges, and kitchen televisions without signal loss. Digital aerial installations and storm-damage repairs start from £79.

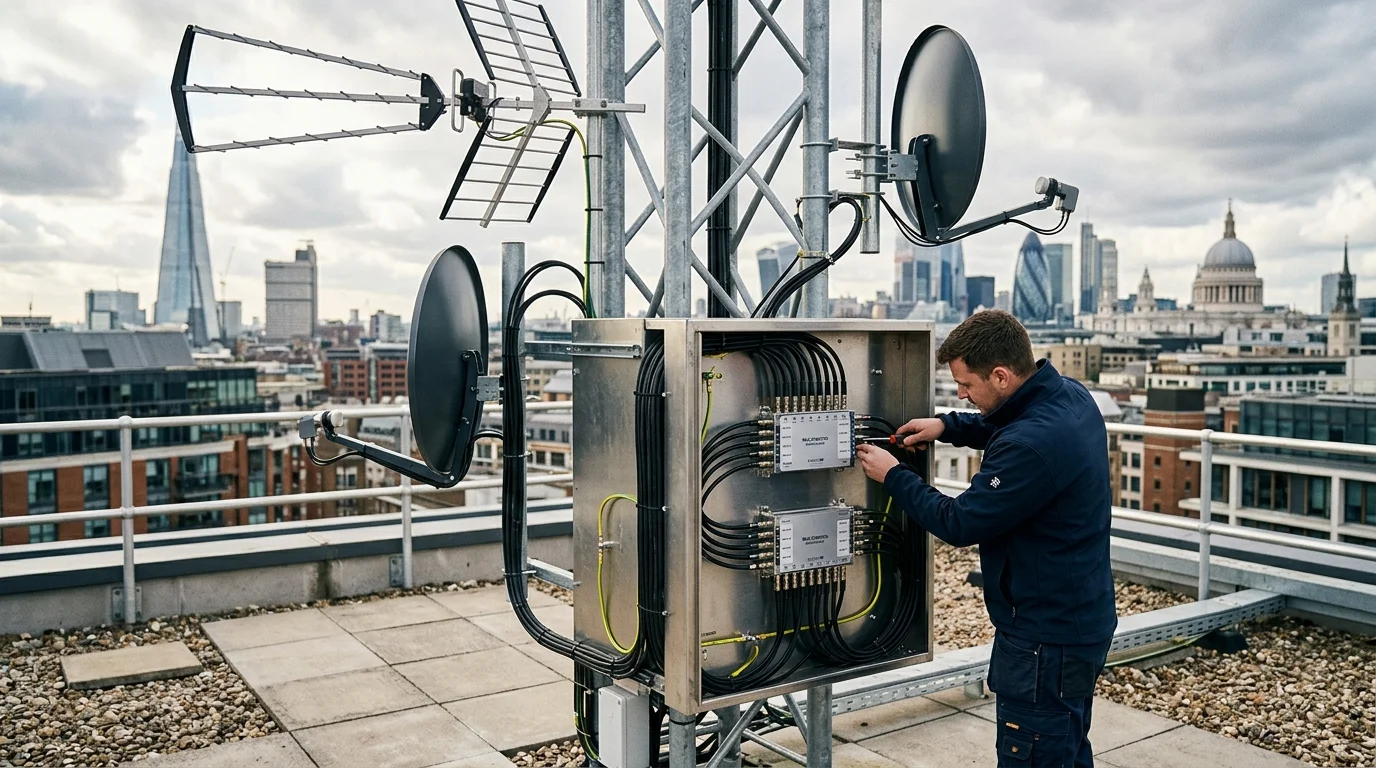

The 4 Core Communal Distribution Architectures

IRS (Integrated Reception System): The modern gold standard for residential developments. Combines terrestrial TV (Freeview HD), DAB/FM radio, and satellite signals (Sky Q and Freesat) onto a single coaxial riser backbone feeding dSCR multiswitches in communal risers.

MATV (Master Antenna Television): Distributes terrestrial TV and radio only. Ideal for budget schemes, care homes, and retirement blocks without satellite requirements.

SMATV (Satellite Master Antenna Television): A private network for hotels, hospitals, and student halls where satellite channels are decoded at a central headend and modulated as Freeview channels playable on standard TVs.

FIRS (Fibre Integrated Reception System): Transmits unattenuated optical broadcast signals over micro-armoured single-mode fibre across multi-block residential estates up to 3km.

How to Connect Sky Q to a Communal IRS Dish (SCR 001 Engineers Menu)

In an IRS building, Sky Q must be set to SCR (Single Cable Router) mode: on the remote press Home, scroll down to Settings (do not press Select), type 0 0 1 and press Select. In the hidden installer menu, change LNB Type from Wideband to SCR, confirm, power-cycle the box, and satellite channels will tune instantly.

Who is Responsible for Communal Aerial Repairs?

The freeholder, landlord, or block management company is legally responsible for communal rooftop aerials, dishes, launch amplifiers, multiswitches, and cabling up to the flat's wall socket faceplate. The tenant is responsible only for internal flyleads and personal television equipment.

Why Communal IRS Requires Main Earthing Terminal (MET) Bonding

Under BS EN 60728-11 and CAI regulations, communal systems interconnecting multiple apartments with separate fuse boxes must have multiswitch chassis and coaxial outer shields bonded with 4mm² / 10mm² copper conductors to the building's MET to prevent touch voltage shocks and dissipate lightning surges.

Do Communal Systems Require Electricity?

Yes, communal amplifiers and multiswitches run on 230V mains power connected exclusively to the landlord's common parts meter, drawing only 15W–45W total power.
