Digital TV Aerial Installation In Mill Hill, Blackburn BB2
Winter Hill Alignment & LTE 4G/5G Interference Suppression
Suffering from pixelating Freeview HD channels or missing multiplexes in Mill Hill? Local mobile phone masts frequently swamp older wideband aerials. ADI Communications aligns precision high-gain digital aerials directly to Winter Hill, installing integrated 4G/5G bandpass filters, non-drill chimney lashing cradles, and double-screened WF100 copper cabling for crystal-clear reception.
Winter Hill Signal Dynamics In Mill Hill
The Winter Hill transmitting station (located at Horwich/Cranberry Moss) transmits at 100kW ERP on horizontal polarisation. For Mill Hill homes, the compass bearing sits between 192° and 198° South-Southwest.
Direct Bearing Alignment
Achieving optimum digital reception requires precise spectrum alignment. In Mill Hill, even a 5-degree deflection causes multipath reflections off slate roofs, degrading the Modulation Error Ratio (MER) below the critical 26 dB threshold.
Topographical Basins
Properties positioned in lower hollows near the Leeds and Liverpool Canal or River Darwen suffer from natural terrain shadow. In these locations, standard contract aerials fail, requiring high-gain Group K arrays mounted on 8-foot alloy masts.
Target Calibration Metrics
Using a calibrated broadcast spectrum analyzer, Gary tunes every installation to achieve >60 dBuV signal strength, an MER of 32–35 dB, and a post-Viterbi Bit Error Rate (BER) better than 1.0E-8 on all DVB-T2 HD multiplexes.
Why 4G & 5G Masts Break Freeview In Mill Hill
Following the UK 700MHz clearance, mobile phone networks (EE, Vodafone, Three, O2) now broadcast 4G and 5G cellular signals on frequencies immediately adjacent to digital TV multiplexes.
Older unshielded wideband aerials collect these high-power mobile signals, overloading TV tuners and causing sudden picture breakup, sound chirps, and "No Signal" messages on channels 48 through 60.
-
✓
Integrated LTE 700/800 SAW Filters: We install precision surface acoustic wave bandpass filters with steep -45dB roll-off, completely rejecting mobile data frequencies.
-
✓
Double-Screened Copper WF100 Coax: 100% solid copper conductor with copper foil and copper braid shielding prevents RF ingress from mobile phones and LED drivers inside the home.
-
✓
Zinc-Diecast Screened Amplifiers: Metal-housed distribution amplifiers eliminate internal signal bleed across multi-room TV setups.

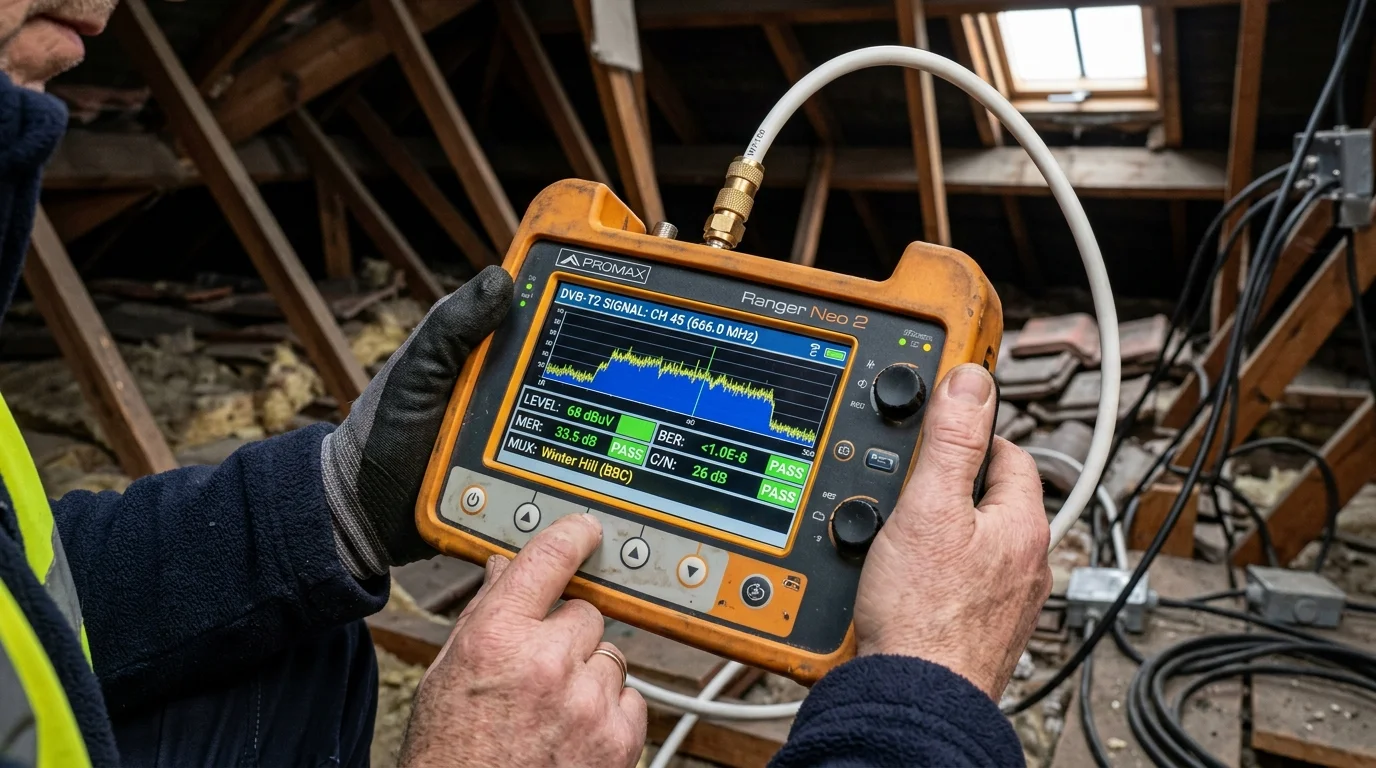

Real-time DVB-T2 digital constellation and RF channel analysis ensuring flawless MER and zero cellular distortion on every socket.

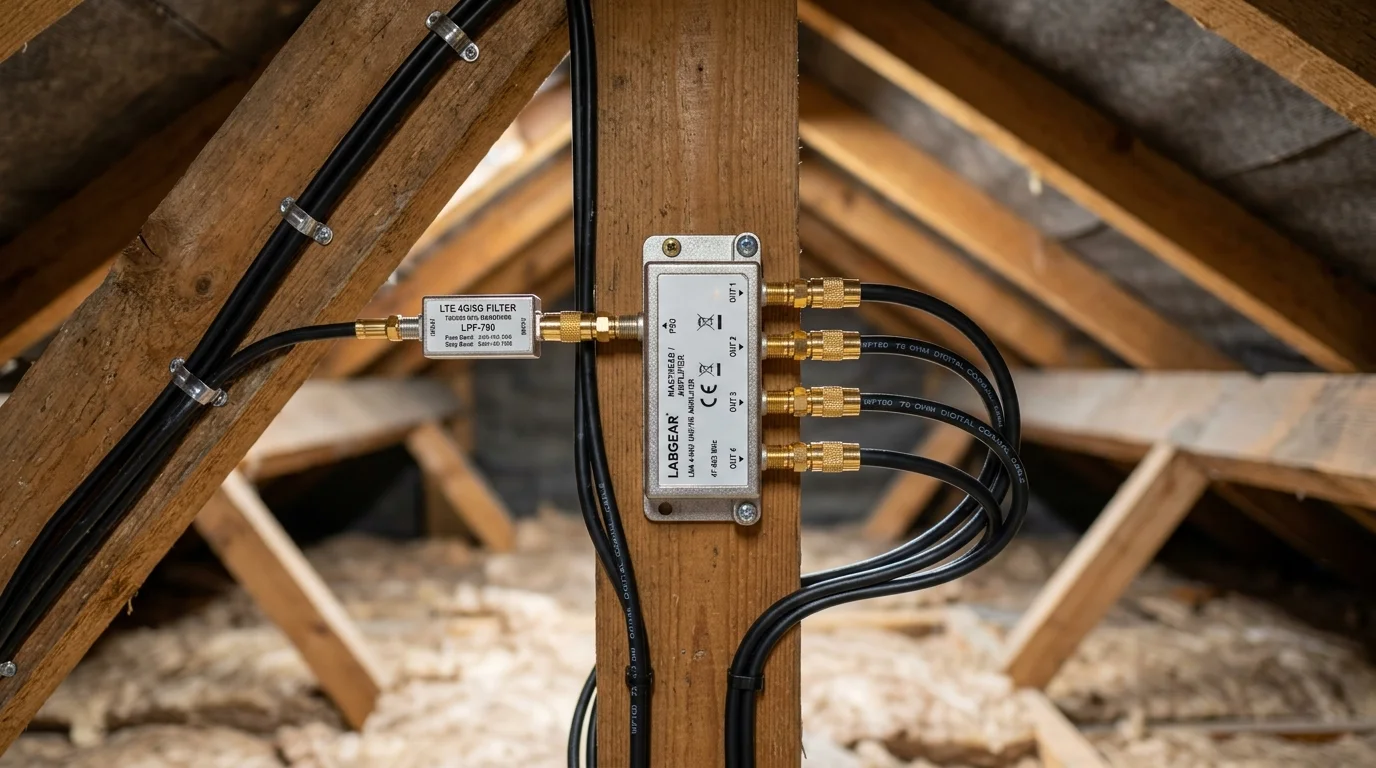

Screened metal distribution unit routing clean, amplified signals to multiple bedrooms and living spaces while fully compensating for splitter insertion loss.

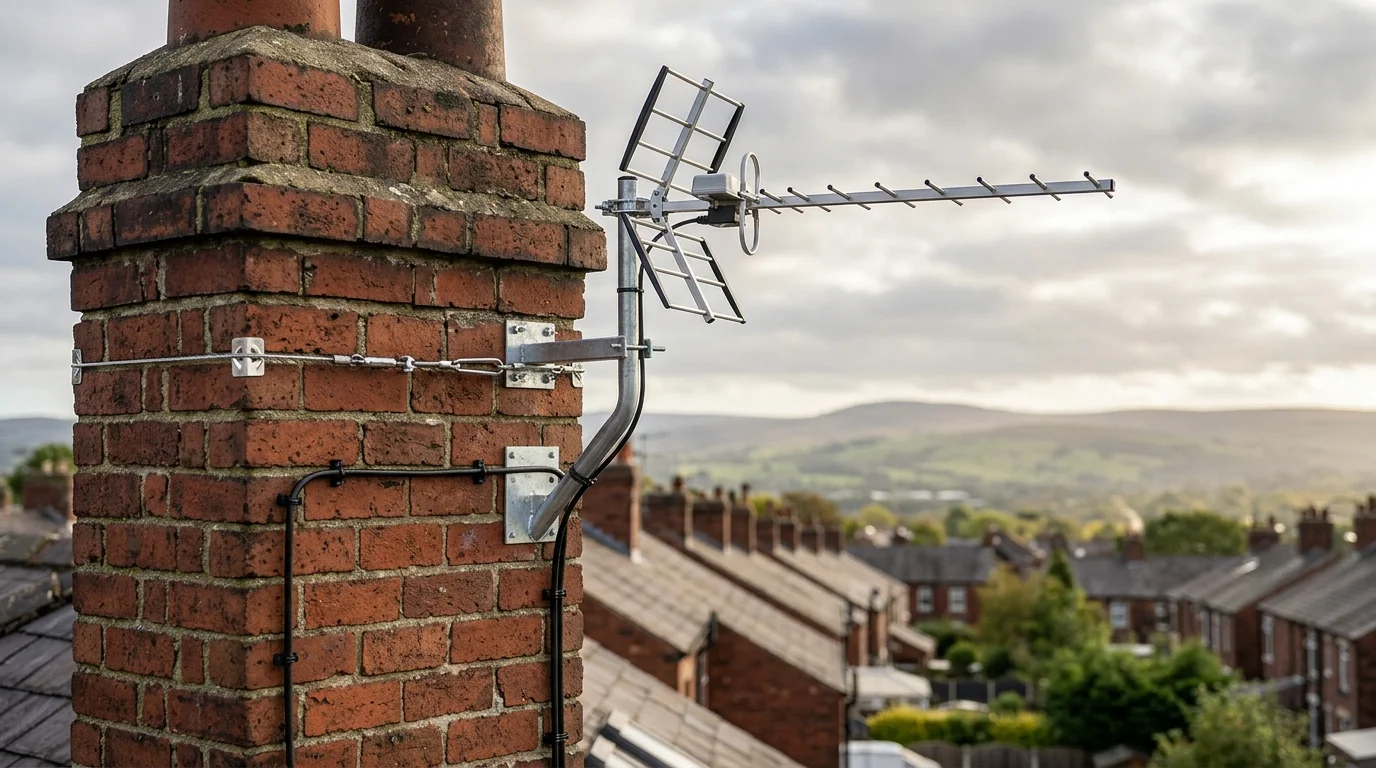

Non-Drill Chimney Lashing For Historic Brickwork
Many terraced chimneys across Mill Hill feature weathered lime mortar and brittle clay brickwork. Drilling expander bolts into Victorian chimneys causes mortar blowout, loose chimney pots, and water leaks.
Gary Pearce exclusively uses non-invasive structural chimney strapping:
Galvanized Steel Lashing Cradles
7-strand heavy-duty stainless steel wire wrapped entirely around the chimney stack, tightened with high-tensile turnbuckles. Spreads wind load symmetrically across the entire chimney mass without a single masonry hole.
Heavy-Duty Alloy Masts & Pennine Storm Brackets
1.5-inch 16-gauge seam-welded aluminium alloy masts rated to withstand Pennine gale gusts exceeding 80mph, ensuring zero aerial deflection during winter storm fronts.
Mill Hill Digital Aerial Pricing
Fixed rates backed by over 25 years hands-on trade experience. All installations include digital spectrum alignment, bracketry, cabling, and 5-year guarantee.
Standard Digital Aerial
- ✓ CAI-benchmarked digital aerial array
- ✓ Heavy-duty galvanized chimney or wall bracket
- ✓ Up to 15m double-screened WF100 coax
- ✓ Direct alignment to Winter Hill transmitter
- ✓ Full spectrum meter test & TV auto-tune
High-Gain 4G/5G Package
- ✓ High-gain Group K directional aerial array
- ✓ Integrated 4G/5G LTE bandpass filter module
- ✓ Non-drill stainless chimney lashing cradle
- ✓ CAI-certified WF100 copper coaxial downlead
- ✓ 5-Year physical installation warranty
Amplified Multi-Point System
- ✓ High-gain mast array on extended alloy mast
- ✓ Screened 4-way loft distribution amplifier
- ✓ Inline LTE 700MHz & 800MHz filter
- ✓ Multi-room TV outlet points wired in WF100
- ✓ Guaranteed 32dB+ MER across all rooms
Verified TV Aerial Installations In Mill Hill
First-hand signal telemetry captured with calibrated spectrum analyzers before and after physical antenna installation in local Blackburn BB2 properties.
Eliminating Severe Freeview Breakup On BBC One HD
The Challenge: Client experienced total pixelation on BBC One HD and ITV1 whenever local mobile traffic peaked in the evening. An old wideband aerial was picking up 790MHz 4G cellular signals at 74 dBuV, crushing the TV tuner's front end.
The Engineering: Removed the corroded contract aerial. Fitted a Group K high-gain array with an inline -45dB LTE bandpass filter, paired with fresh black WF100 copper coaxial cable down into the living room.
Non-Drill Lashing On Weathered Victorian Stack
The Challenge: An old rusted J-bracket had pulled out two courses of soft Victorian brickwork during autumn gales, leaving the existing aerial dangling and water penetrating the bedroom ceiling.
The Engineering: Repointed the damaged brickwork, installed a 7-strand stainless lashing wire cradle around the entire stack with corner protectors, and fitted a new high-gain aerial aligned at 195° SSW.
Trusted By Mill Hill Residents
"We lost half our Freeview channels after the recent storms. Gary came out the following morning, tested the signal with his meter, and replaced the broken bracket on our chimney. Perfect picture on all channels now."
"Gary was fantastic. Identified immediately that our picture was breaking up because of 4G mast interference. Fitted a proper filter and new cabling into two rooms. Very tidy worker and fair price."
"Punctual, professional, and knowledgeable. Gary has been doing our aerials and satellite for years. Fitted a new aerial and amplifier in our loft space with zero mess. Highly recommended."
Mill Hill TV Aerial Installation FAQs
Authoritative answers on Freeview reception, transmitters, and cable standards.
Which TV transmitter provides Freeview coverage for Mill Hill?
Mill Hill receives its primary digital TV broadcast from the Winter Hill transmitter located approximately 12 miles south-southwest. Signals transmit horizontally polarised multiplexes on UHF Group K and Group T, delivering all Freeview HD, BBC, and commercial channels.
Why is my Freeview TV pixelating or dropping channels in Mill Hill?
Pixelation in Mill Hill is commonly caused by 4G and 5G cellular mast interference overloading older wideband aerials, corroded coaxial cable water-ingress, or terrain shadowing in the valley basin along the River Darwen corridor. Installing a filtered high-gain aerial resolves this.
Can you install an aerial without drilling into our Victorian chimney stack?
Yes. We fit heavy-duty galvanized steel chimney cradles secured with stainless steel lashing wires. This non-drill method distributes mechanical wind load evenly across the masonry without cracking historic lime mortar or loose Victorian brickwork.
What type of cable do you use for digital TV aerial installations?
We exclusively install genuine CAI-benchmarked double-screened WF100 copper coaxial cable with copper foil and copper braid shielding. We never use cheap aluminium braid RG6 or degraded brown low-loss cable, minimising signal degradation and maximising rejection of radio interference.
How much does TV aerial installation cost in Mill Hill?
Standard digital aerial installations start from £129 + VAT. High-gain fringe reception systems start from £169 + VAT, and bad reception packages with screened masthead amplifiers start from £199 + VAT. Diagnostic signal surveys and repair callouts start from £69 + VAT.
Ready For Crystal-Clear Freeview In Mill Hill?
Speak directly with Gary Pearce at ADI Communications. Over 25 years hands-on aerial and RF installation experience across Blackburn BB2.
