Digital TV Aerial Installation In Beardwood, Blackburn BB2
Restore perfect Freeview HD reception across your Beardwood property. Qualified digital aerial specialist Gary Pearce installs benchmarked high-gain TV aerials aligned directly to Winter Hill, featuring high-rejection 4G/5G LTE filters, double-screened WF100 copper cabling, and storm-rated chimney lashings for crystal-clear television reception across Blackburn BB2.

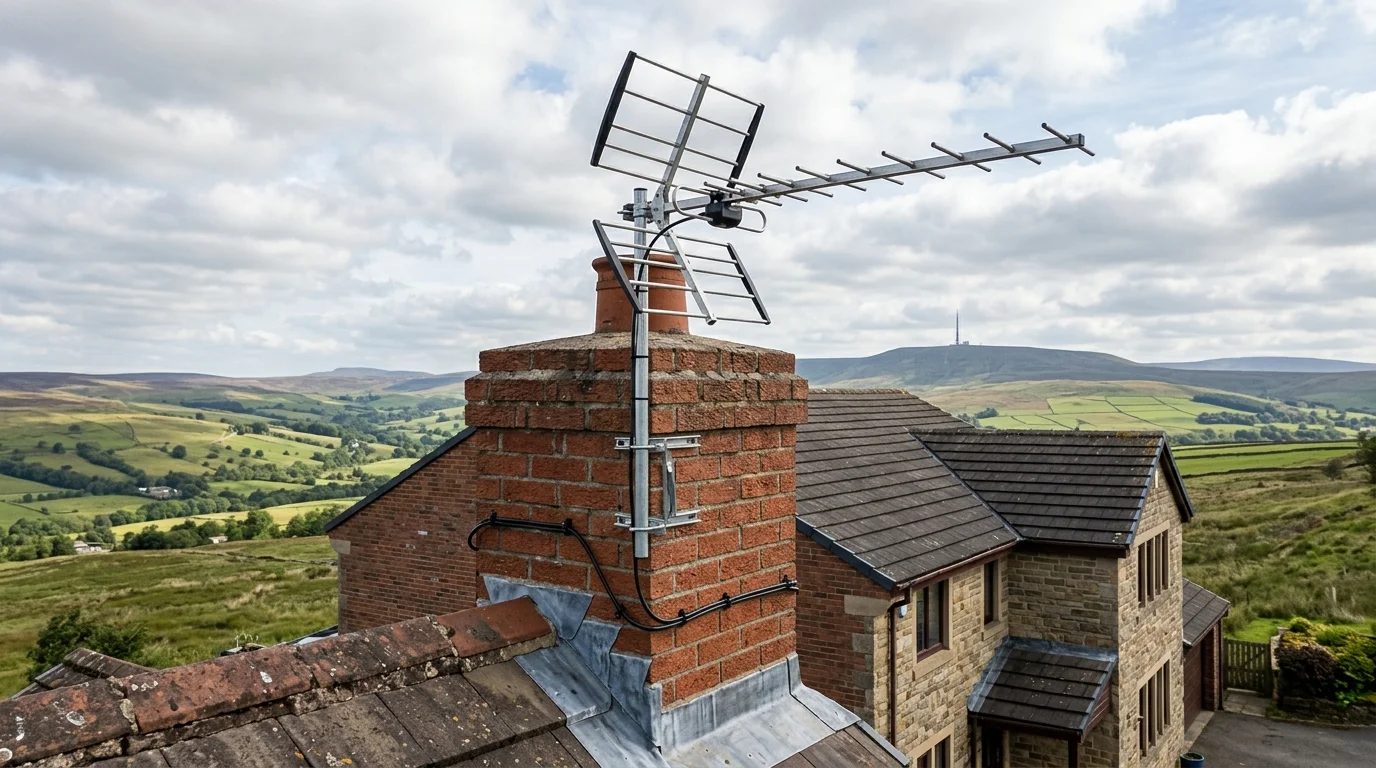

High-Gain Digital Aerial Aligned to Winter Hill with Stainless Chimney Lashing
Winter Hill Signal Dynamics Across Beardwood
Freeview digital television across Beardwood BB2 is served by the Winter Hill transmitter, situated 12 miles south-southwest on an exact bearing of 193° SSW. Transmitted on horizontal polarisation, Winter Hill provides all standard and high-definition DVB-T2 digital multiplexes across UHF channels 29 through 55. While Beardwood's elevated western ridge positions many properties favourably, tree cover and localised cellular transmissions create distinct engineering challenges.
Direct Winter Hill Horizon
Properties positioned along Preston New Road and Beardwood Brow enjoy an open line of sight across the Darwen valley towards Winter Hill. In these locations, field strengths routinely reach 62 to 70 dBuV, delivering robust carrier-to-noise margins for clean Freeview Play decoding.
Mature Canopy Attenuation
Residences around The Ridings, Somerset Avenue, and Woodside feature dense mature oak, beech, and sycamore trees. During full spring and summer foliage, uncalibrated aerials experience up to 6dB signal drop and phase distortion, causing periodic picture freezing on HD channels.
MER Signal Verification
Digital television performance relies on Modulation Error Ratio (MER) rather than raw signal strength. Every ADI aerial installation is aligned using a calibrated RF spectrum analyzer to guarantee an MER above 32dB and pre-Viterbi bit error rates below 1e-4 across all multiplexes.

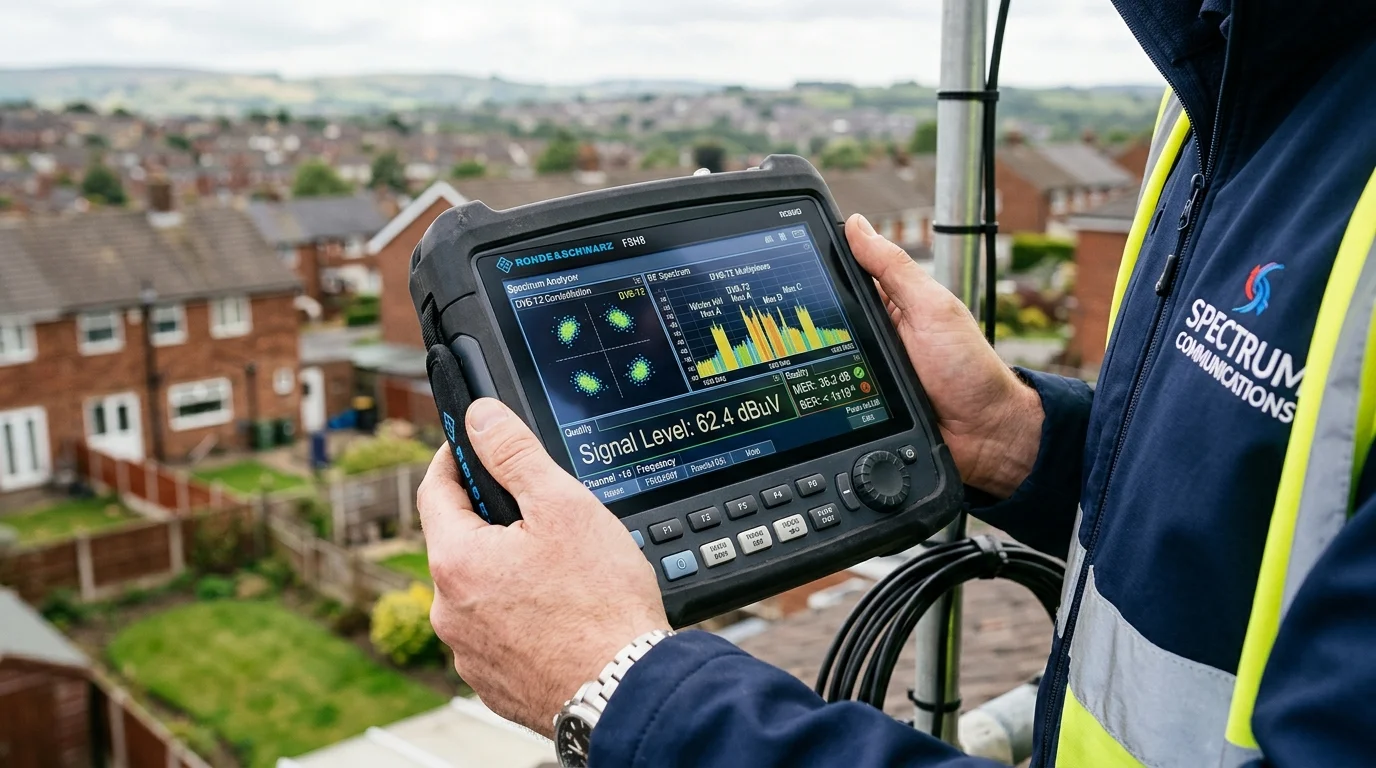

Spectrum Analyzer Calibration Over Guesswork
Consumer Freeview receivers provide simple signal strength bars that misdiagnose signal quality. A television showing 95% signal strength can still experience severe block pixelation if high cellular RF or multipath reflections degrade the digital constellation.
Gary Pearce connects a calibrated digital RF analyzer directly at the masthead. By inspecting individual carrier modulation clusters, we balance digital signal levels between 55 and 68 dBuV at every wall plate, eliminating tuner overload while preventing digital cliff dropouts.
Eliminating 4G & 5G Mast Interference
Following national frequency clearance programmes, the upper UHF broadcast bands (700MHz and 800MHz) were allocated to high-power mobile broadband transmitters. In Beardwood, high-output 4G and 5G cellular masts positioned near the Preston New Road corridor and Billinge End frequently overpower domestic TV tuners, leading to sudden channel loss and intermittent audio dropouts.
The Tuner Overload Mechanism
High-power 5G base stations broadcast within megahertz of television broadcast frequencies. When unshielded aerials or degraded cables collect these powerful cellular transmissions, the input stage of the television tuner becomes saturated.
The receiver cannot separate the weaker broadcast signal from the overwhelming cellular carrier. This manifests on your screen as sudden message banners reading "No Signal", frozen frames, or the complete disappearance of Freeview HD channels.
Benchmarked Bandpass Filtering
ADI Communications installs commercial-grade high-gain aerials featuring integrated surface-acoustic-wave (SAW) bandpass filters. These filters introduce a sharp attenuation barrier above 694MHz (Channel 48), delivering over 45dB of rejection against cellular frequencies.
Combined with fully shielded masthead distribution equipment, this filtering prevents cellular intermodulation distortion, protecting your Freeview broadcast stream regardless of future mobile network upgrades across the BB2 district.
Double-Screened Webro WF100 Coaxial Cable
We exclusively run genuine Webro WF100 copper coaxial cable. Featuring a 1.00mm solid copper centre conductor, copper foil screening, and dense copper braiding, WF100 blocks stray electromagnetic fields from domestic wiring and smart meters.
Engineered Mounting Solutions For Beardwood Homes
Beardwood features a diverse mix of 1930s-1950s character detached homes, executive properties, and modern renovations. Every aerial mount is selected to ensure absolute structural stability, zero masonry damage, and discrete visual aesthetics.
Non-Drill Chimney Lashing Cradles
Period homes with ornate brick chimney stacks require delicate handling. We fit galvanised steel chimney brackets secured via double-wrapped stainless steel lashing wire cradles and corner plates. This provides an uncompromising 90mph gale-tested anchor without drilling into historic mortar.
Heavy-Duty Pennine Gable Mounts
For homes where chimneys have been capped or removed during modern open-plan alterations, heavy-duty galvanised T&K brackets are anchored into solid structural brickwork on end gables using heavy M8 mechanical shield anchors.

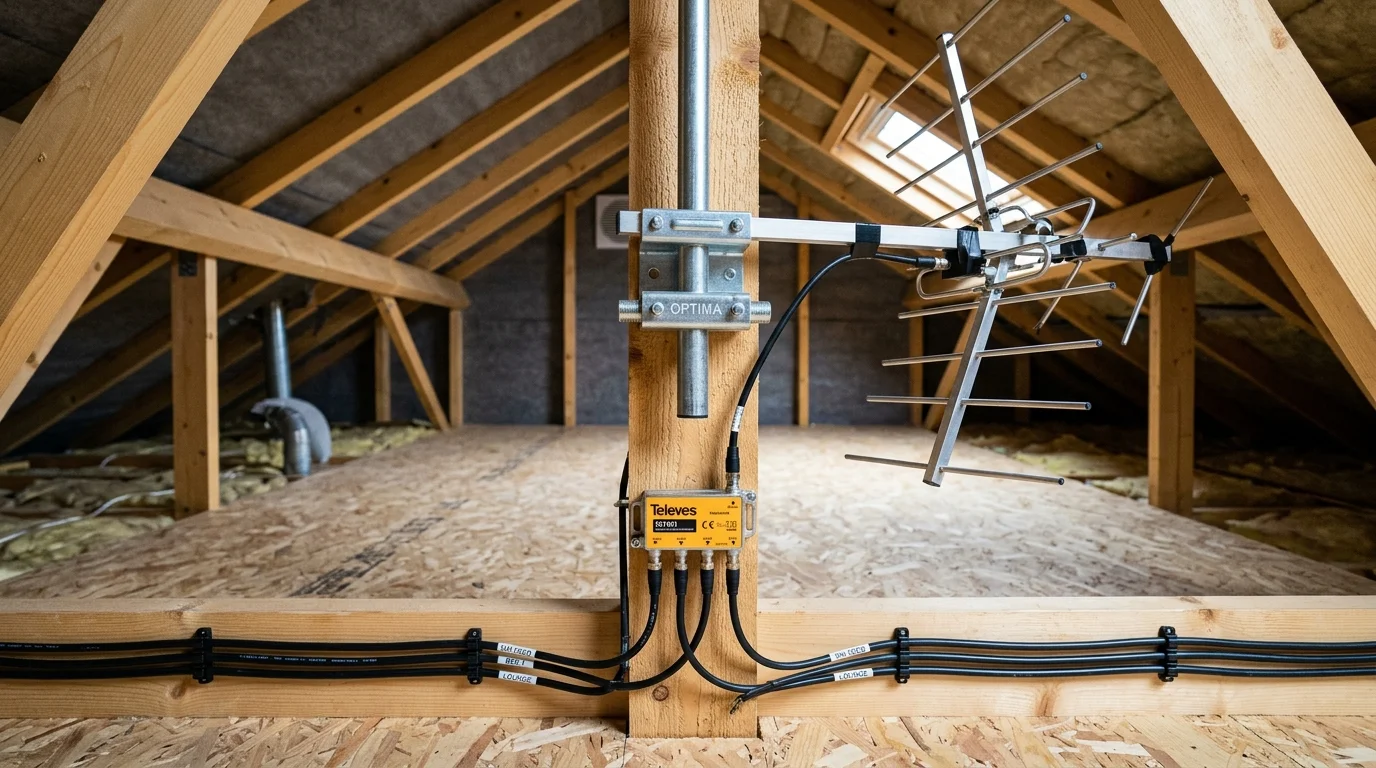

Attic & Loft Space Mounts
Given Beardwood's elevated topography, high-gain aerials installed in clear roof attics frequently perform cleanly while protecting equipment from Pennine weather cycles and preserving external property rooflines.
Truss-Clamped High-Gain Array with Multi-Room Distribution Matrix
Our 5-Stage Precision Installation Methodology
Every aerial installation carried out by Gary Pearce follows a structured engineering procedure to guarantee flawless reception and lifelong structural durability.
Spectrum Survey
We conduct a full RF sweep at roof and loft level to measure raw signal strength, MER, and local cellular interference before mounting.
Mount Selection
Selecting non-drill stainless chimney lashing cradles, heavy-duty gable T&K brackets, or attic truss mounts based on structural architecture.
Precision Aiming
Aligning the high-gain array directly to Winter Hill at 193° SSW using spectrum constellation analysis for peak MER performance.
WF100 Cabling
Routing double-screened Webro WF100 pure copper coaxial cable neatly along mortar lines with sealed external drip loops.
Tuner Commissioning
Testing signal parameters at every TV wall outlet, tuning Freeview HD multiplexes, and handing over a 5-year guarantee certificate.
Fixed-Rate Beardwood Aerial Packages
All prices strictly adhere to our canonical price manifest. Fully itemised with zero hidden fees.
Standard Digital Aerial
Ideal for strong signal locations along Preston New Road with direct Winter Hill line of sight.
- CAI-benchmarked digital aerial
- Single TV feed with WF100 cable
- Heavy-duty chimney or wall bracket
- 5-year workmanship guarantee
High-Gain LTE Filtered
Engineered for homes near tree cover or cellular masts across Beardwood Brow and The Ridings.
- High-gain wideband array
- Integrated 700MHz/800MHz LTE filter
- Double-screened Webro WF100 copper cable
- Non-drill stainless chimney lashing cradle
- 5-year workmanship guarantee
Multi-Room Distribution
Comprehensive solution feeding multiple bedrooms, kitchen, and media lounges without loss.
- High-gain array with masthead amplifier
- 4-way or 8-way shielded distribution matrix
- Low-noise power pass supply
- Dedicated WF100 drops to multiple rooms
- 5-year workmanship guarantee
Serving Beardwood & Surrounding Lancashire Districts
Based centrally in Blackburn, Gary Pearce provides responsive digital TV aerial installations, repairs, and signal diagnostics across all surrounding communities and postal districts.
Beardwood TV Aerial FAQ
Authoritative answers on Freeview reception, Winter Hill alignment, and cellular filtering.
Which TV transmitter provides Freeview signal for Beardwood homes?
Beardwood homes receive high-definition Freeview signals primarily from the Winter Hill transmitter, located approximately 12 miles south-southwest on a compass bearing of 193° SSW. Transmission uses horizontal polarisation across UHF channels 29 to 55.
Why is my Freeview picture pixelating or dropping channels in Beardwood?
Pixelation or missing HD multiplexes in Beardwood is typically caused by three issues: 4G or 5G cellular signal overload from nearby Preston New Road mobile masts, seasonal signal attenuation from mature oak trees near Beardwood Brow, or water egress into degraded legacy coaxial cables.
Can I install a digital TV aerial inside the loft rather than on the roof?
Yes. On Beardwood's elevated ridges, loft aerial installations frequently achieve strong signal levels without external visual clutter. We conduct a preliminary RF spectrum sweep inside your attic to ensure signal readings exceed 55 dBuV before securing high-gain arrays to timber trusses.
How much does a digital TV aerial installation cost in Beardwood?
Standard digital TV aerial replacements start from £129 + VAT. High-gain arrays with 4G/5G LTE filtering start from £169 + VAT, and complex bad-reception solutions with multi-room screened masthead amplifiers start from £199 + VAT.
Will an aerial installation damage my period brick chimney stack?
No. For period 1930s-1950s brick chimneys on Preston New Road and Beardwood Brow, we use non-drill galvanised or stainless steel lashing wire cradles that wrap securely around the masonry without drilling or weakening mortar joints.
What is the difference between cheap coaxial cable and WF100 cable?
Standard low-grade coaxial cable uses loose copper-coated aluminium braiding that allows RF interference from 4G/5G mobile signals and domestic electrical wiring. Webro WF100 features a pure solid copper core, double copper foil shielding, and dense copper braiding, preventing RF ingress and minimising signal attenuation.
Can you feed multiple televisions in different rooms from a single aerial?
Yes. We fit fully shielded, low-noise distribution amplifiers with line-power capability to distribute balanced Freeview signals across 2, 4, 6, or 8 television points without introducing cross-talk or visual noise.
Do you repair storm-damaged aerials in Beardwood?
Yes. We provide prompt repair visits across Beardwood to replace storm-bent aerial masts, snapped chimney lashing wires, water-ingress baluns, and misaligned brackets following heavy Pennine gale conditions.
What warranty and insurance do you provide on aerial installations?
Every installation carried out by Gary Pearce includes £10 Million Public Liability Insurance coverage and a comprehensive 5-year workmanship guarantee, backed by over 25 years of hands-on aerial and satellite experience.
How quickly can you attend for an aerial repair or installation in Beardwood?
Being locally based right here in Blackburn, we routinely accommodate same-day or next-day appointments across Beardwood, Preston New Road, The Ridings, Somerset Avenue, and all BB2 postal districts.
