Digital TV Aerial Installation In Livesey, Blackburn BB2
Enjoy crystal-clear Freeview HD reception across Livesey and surrounding BB2 postcodes. Experienced aerial engineer Gary Pearce installs high-gain digital aerials aligned to Winter Hill with integrated 4G/5G LTE filtering, double-screened WF100 copper cabling, and storm-proof brackets, resolving pixelation and multi-room TV signal loss across all property types.

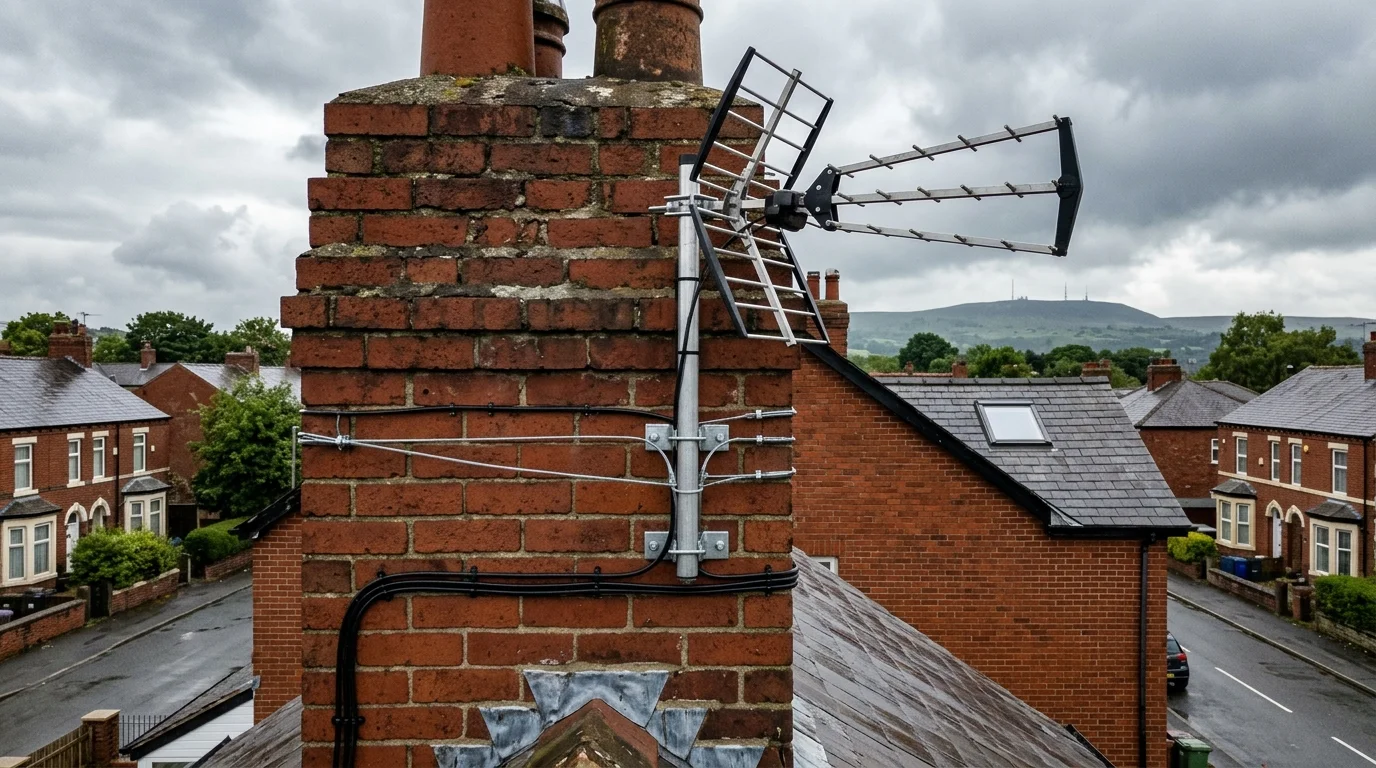

High-Gain Digital Aerial with Stainless Chimney Lashing Cradle
Winter Hill Reception In Livesey
Livesey sits approximately 11 miles north-north-east of the Winter Hill main transmitter mast. While reception is broadly strong, local topography creates distinct signal profiles.
Transmission Bearing & Polarity
Transmitted horizontally on ultra-high frequencies (UHF). Precision compass alignment to 195° SSW ensures maximum signal capture across all standard DVB-T multiplexes.
- ✓ BBC, ITV, Channel 4 & 5 HD
- ✓ 150+ free-to-air digital channels
- ✓ Zero monthly TV subscriptions
Elevated Ridge Signal
Properties on the Gib Lane and Broken Stone Road ridge benefit from direct line-of-sight elevation, recording healthy RF levels of 65 to 70 dBµV directly at the antenna diplexer.
- ✓ High Modulation Error Ratio (>34 dB)
- ✓ Excellent roofline or loft clearance
- ✓ Low pre-BER error margins
River Darwen Dip Shadows
Lower-lying properties towards the River Darwen basin and Ewood boundaries experience partial terrain shadowing and mature tree obstruction, demanding high-gain aerial arrays.
- ✓ Elevated 10ft alloy mast deployment
- ✓ High-gain multi-element reflectors
- ✓ Low-noise masthead pre-amplification
Eliminating 4G & 5G Mast Interference
With cellular base stations upgraded across Livesey and nearby Roman Road, mobile networks broadcast on the cleared 700MHz and 800MHz frequency bands directly adjacent to TV multiplexes. Unfiltered or corroded aerials suffer severe tuner overloading, manifesting as missing channels and sound dropouts.
Chimney Lashing & Gable Storm Mounts
Livesey's elevated position facing open Pennine moorland subjects rooftop aerials to frequent 70mph to 90mph winter gale gusts. Flimsy universal clamp brackets inevitably twist, slip, or fracture chimney brickwork. We deploy specialized, heavy-duty structural fixings engineered for long-term mechanical stability.
Stainless Non-Drill Chimney Lashing
Designed specifically for pre-war semi-detached properties along Livesey Branch Road. We encircle the brick chimney stack with high-tensile 7-strand galvanized steel lashing wire and heavy corner plates, clamping the alloy mast with zero structural brick drilling.
- ✓ Zero drill holes in historic mortar
- ✓ 5-ton tensile wire clamping force
- ✓ Eliminates brick cracking or water ingress
Heavy-Duty Gable Storm Brackets
Ideal for modern executive detached homes in Gib Lane developments lacking traditional chimney stacks. Heavy-gauge galvanized steel T&K brackets anchor securely into solid masonry gable walls using M10 mechanical masonry anchor bolts.
- ✓ Welded 18-inch to 24-inch standoff clearance
- ✓ Serrated anti-slip V-bolts
- ✓ Unobstructed roofline overhang clearance
High-Tensile Aluminum Alloy Masts
We strictly install seam-free 1.5-inch to 2-inch heavy-gauge seam-welded alloy masts. Unlike cheap steel conduit pipes that rust and weep orange streaks down roof tiles, marine-grade aluminum alloy remains rust-free and rigid for decades.
- ✓ Zero rust runoff down roof tiles
- ✓ High harmonic vibration damping
- ✓ Guaranteed structural alignment

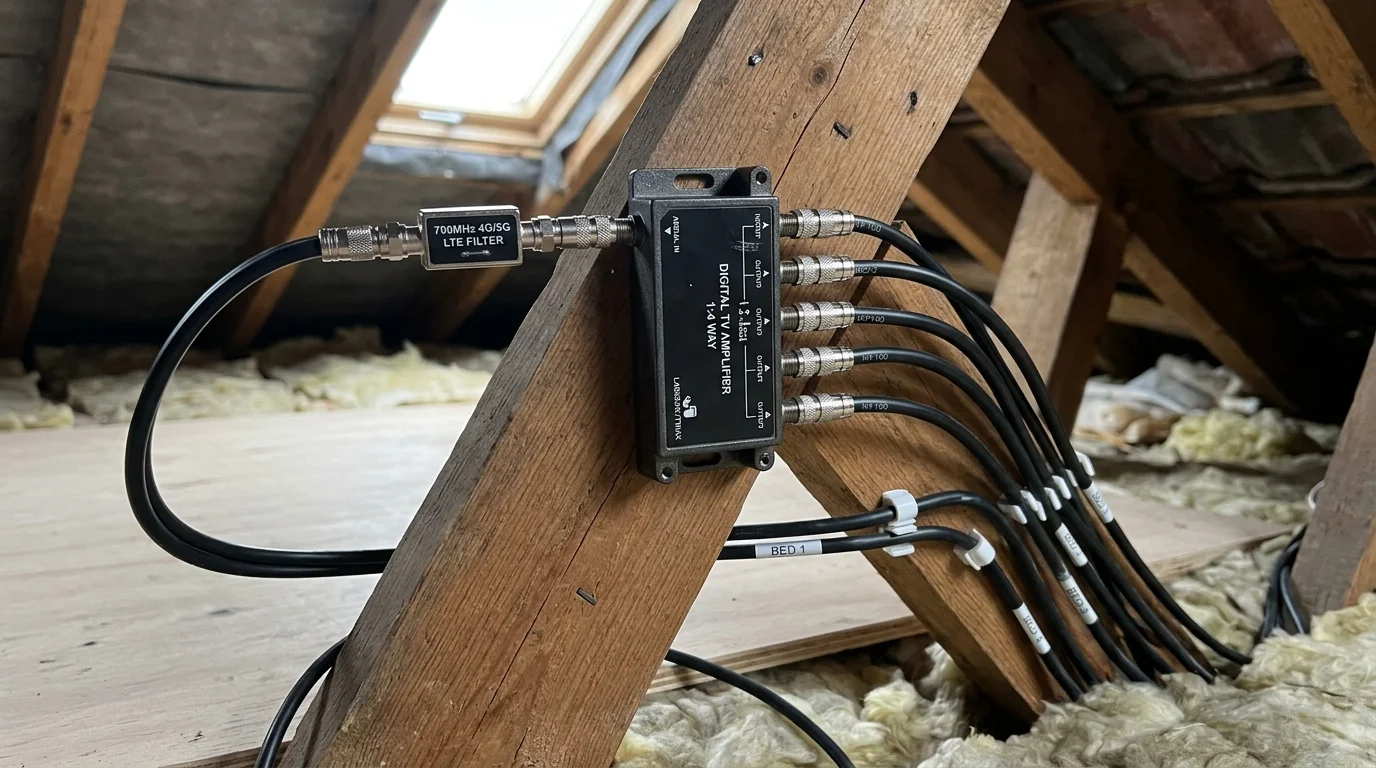

Multi-Room Amplified TV Distribution
Splitting an aerial cable passively with cheap plastic Y-splitters drops signal voltage below TV tuner operating thresholds. We install professional shielded distribution amplifiers in the loft, feeding dedicated WF100 coaxial runs to each bedroom and living space.
Livesey TV Aerial Packages
All prices from canonical trade guidance. Fitted with CAI-benchmarked equipment and double-screened WF100 cable.
Standard Digital Aerial
Ideal for strong-signal properties on Gib Lane and Broken Stone Road with good line of sight to Winter Hill.
- ✓ High-quality benchmarked digital aerial
- ✓ Heavy-duty galvanized mounting bracket
- ✓ Double-screened WF100 cable to 1 TV point
- ✓ Digital meter signal calibration
High-Gain Filtered Aerial
Essential along Livesey Branch Road to block 4G/5G mast interference and clear nearby mature trees.
- ✓ High-gain multi-element aerial array
- ✓ Integrated 700MHz 4G/5G LTE bandpass filter
- ✓ Non-drill chimney cradle or heavy storm mast
- ✓ 5-year storm-resilience guarantee
Multi-Room System
Full distribution to multiple bedrooms, kitchen, and lounge from a central loft distribution amplifier.
- ✓ High-gain 4G/5G filtered digital aerial
- ✓ Screened multi-way distribution amplifier
- ✓ Multiple independent WF100 coaxial drops
- ✓ Balanced signal calibration across all TVs
Livesey & Adjacent TV Aerial Service Areas
Prompt on-site signal testing, repairs, and installations across all Livesey communities and surrounding districts.
Frequently Asked Questions
Straightforward technical answers regarding digital TV aerial installation across Livesey and BB2.
Which TV transmitter provides Freeview coverage for Livesey BB2?
Livesey receives primary terrestrial television broadcasts from the Winter Hill main transmitter located approximately 11 miles south-south-west (bearing 195 degrees azimuth). Winter Hill broadcasts all DVB-T and DVB-T2 Freeview HD multiplexes on horizontal polarization.
Why do Freeview channels pixelate or freeze during wet or windy weather?
Pixelation typically results from water ingress into perished low-grade brown coaxial cables, corroded dipole baluns on ageing aerials, or interference from local 4G/5G cellular base stations operating in the 700MHz frequency band. Installing bench-marked WF100 copper cable and inline LTE filters eliminates this interference.
Can you install an aerial without drilling into my stone chimney stack?
Yes. We fit stainless steel non-drill chimney lashing cradles that wrap around chimney masonry using high-tensile galvanized steel wire. This securely anchors heavy masts without mechanical drilling or damaging historic brickwork.
Can you distribute Freeview TV to multiple bedrooms in our house?
Yes. We install screened multi-way distribution amplifiers in lofts or central utility spaces. Each TV point receives an independent double-screened WF100 coaxial cable drop, ensuring identical broadcast signal strength in every room without signal degradation.
Can a digital aerial be installed discreetly inside the loft space?
Yes. On elevated ground such as Gib Lane and Broken Stone Road where line-of-sight to Winter Hill is unobstructed, high-gain wideband aerials perform reliably inside boarded lofts, protected from storms and preserving exterior roof aesthetics.
How does 4G and 5G mobile broadband interfere with Freeview TV?
Following the UK 700MHz spectrum clearance, mobile network masts operate directly adjacent to digital TV broadcast frequencies. Unfiltered aerials pick up these powerful mobile signals, overloading TV tuners and causing channel loss. We install precision 700MHz bandpass filters to isolate TV signals.

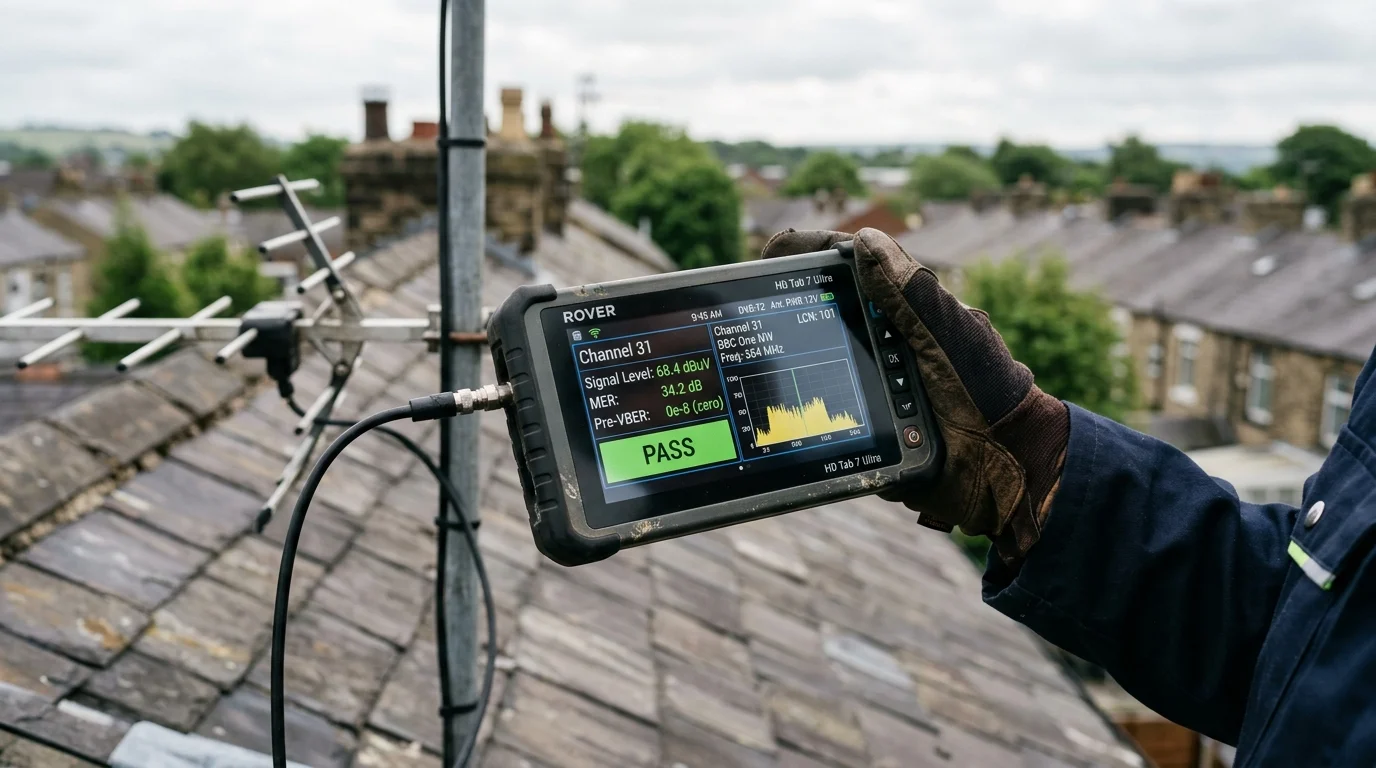

How do you test and calibrate TV signal strength on site?
We use professional digital spectrum analyzers to measure RF signal voltage (aiming for 55 to 70 dBµV), Modulation Error Ratio (MER exceeding 30 dB), and Bit Error Rates (BER) before locking down bracket fixtures.
Do you repair existing broken aerials or storm damage in Livesey?
Yes. We carry a full inventory of replacement alloy masts, heavy galvanized brackets, lashing wires, baluns, and bench-marked WF100 cabling to repair damaged or misaligned aerials following Pennine storms.
Are your TV aerial installations guaranteed against severe gales?
Every installation includes heavy-gauge aluminum alloy masts and galvanized Pennine steel brackets engineered to withstand 90mph gale winds, supported by a 5-year physical workmanship guarantee.
How quickly can you attend for an aerial repair or installation in Livesey?
We operate locally in Blackburn and routinely accommodate same-day or next-day appointments across Livesey, Feniscowles, Cherry Tree, and all BB2 areas.
