Certified Data Cabling In Great Harwood, Hyndburn BB6
Gary Pearce delivers certified Cat6, Cat6a, and Cat7 data cabling installations across Great Harwood and the BB6 district. We route solid copper Ethernet beneath suspended pine floorboards complying with Part A joist regulations, terminating into flush faceplates with Fluke DSX permanent link certification.

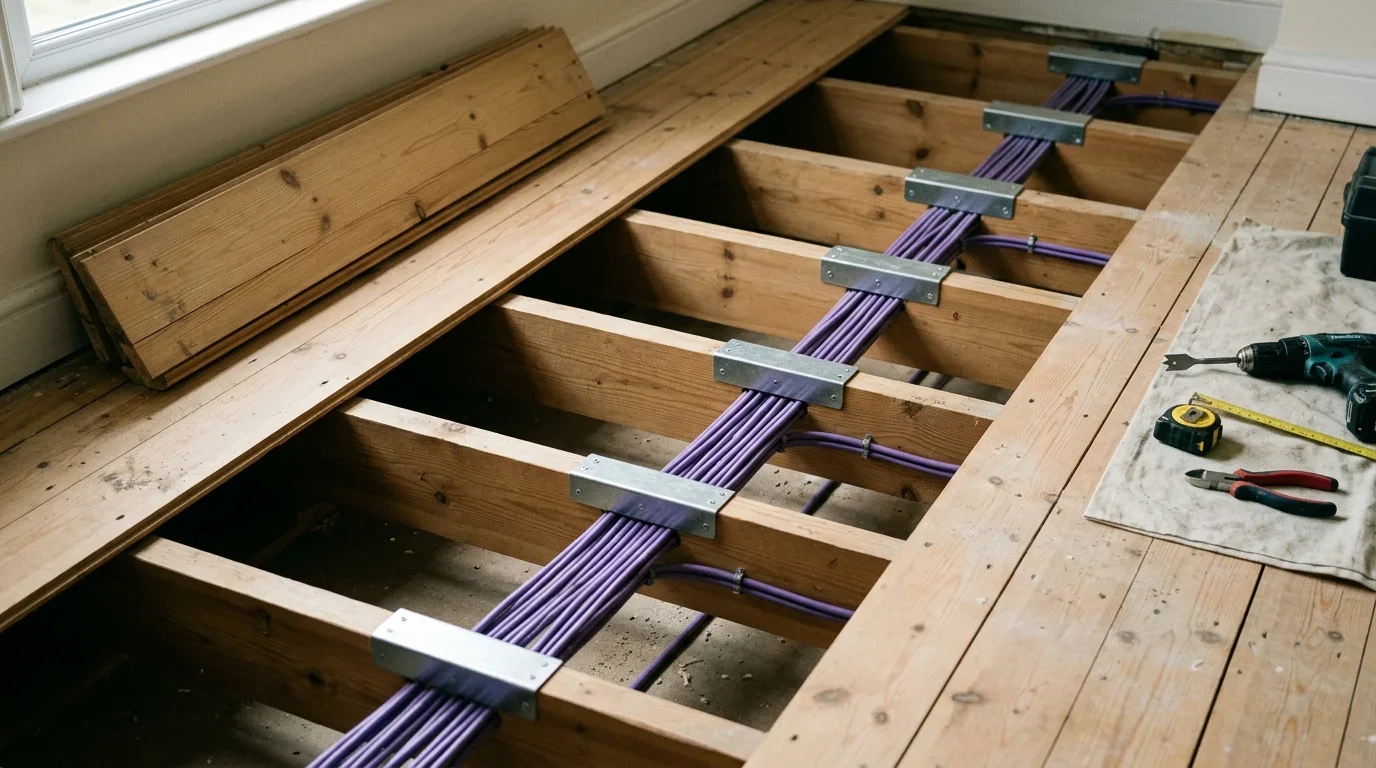

Under-Floor Routing & Part A Joist Compliance
Running high-performance network cabling through Great Harwood’s historic stone cottages requires careful architectural respect. Carelessly hacking floorboards or notching floor joists weakens structural integrity and violates building regulations.
Tongue Preservation
We lift Victorian pine floorboards using specialized pride bars and oscillating saws, severing nails cleanly without splintering the delicate interlocking timber tongues.
- Zero surface floorboard damage
- Clean refitting with flush screws
Part A Joist Zones
Drilling is executed strictly within 0.25 to 0.40 of the joist span along the neutral horizontal axis, keeping hole diameters under 0.25 times the joist depth.
- 100% UK Building Regs compliant
- Preserves joist load-bearing strength
Substrate Protection
Where cables transition between floors, we install metal capping plates and protective nylon bush grommets to safeguard data lines from abrasive gritstone edges.
- Eliminates sheath chafe and snags
- Maintains continuous physical shielding
Strict Part A Structural Rules
Notching the top or bottom of structural joists severely degrades timber bending resistance. Gary Pearce drills clean through the neutral axis of the joist where compressive and tensile stresses equal zero, maintaining full floor stability.
✓ Hole Diameter < 0.25x Depth
✓ Protective Steel Capping Plates

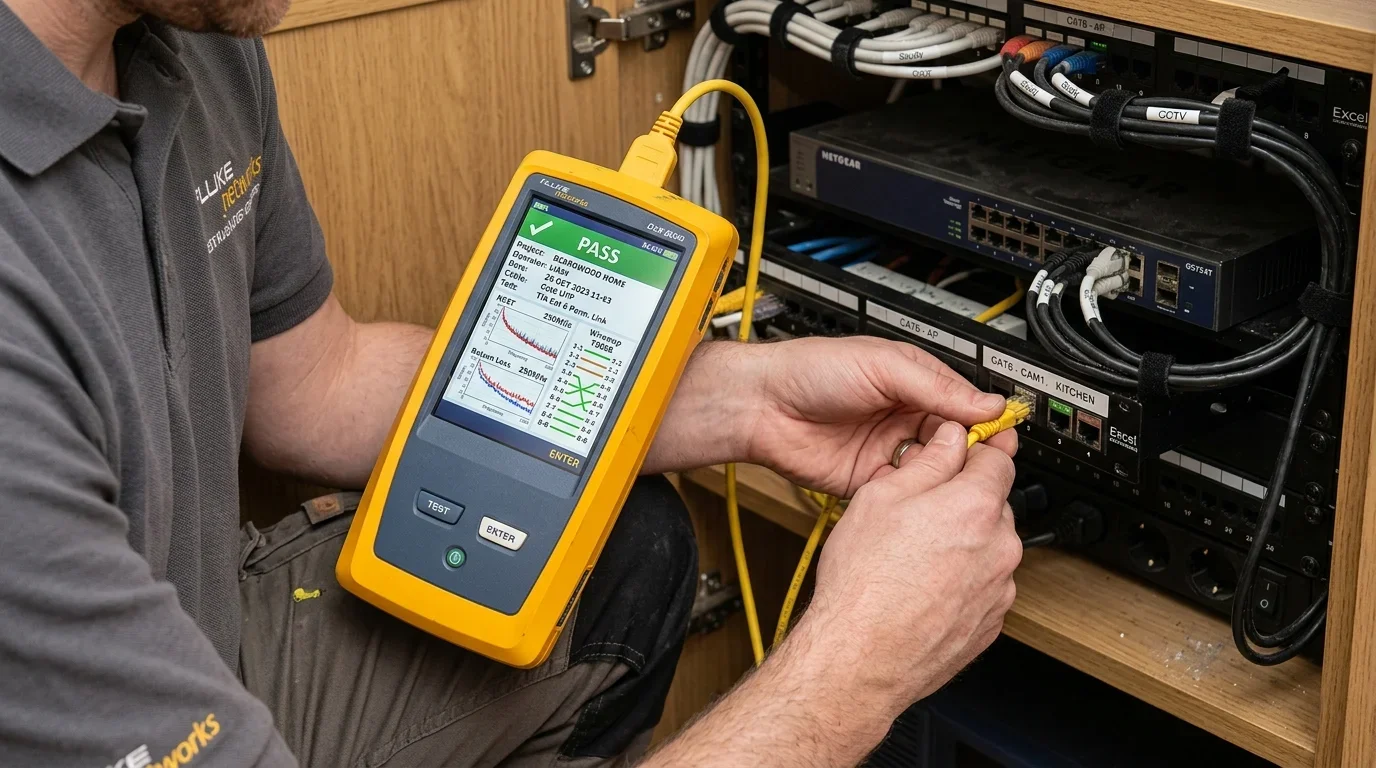

Fluke DSX Permanent Link Certification
Basic DIY continuity testers with blinking LEDs only confirm whether copper wire ends touch each other. They cannot evaluate high-frequency data transmission parameters such as cross-talk, signal reflection, or electrical attenuation.
Gary Pearce tests every terminated drop with an enterprise Fluke DSX CableAnalyzer. We certify that your permanent link complies with international ISO/IEC 11801 and ANSI/TIA-568 standards, providing comprehensive PDF test reports for every RJ45 outlet.
Solid Bare Copper vs CCA & LSZH Fire Ratings
The physical quality of your network cabling determines its longevity, Power over Ethernet (PoE) safety, and fire compliance. Gary Pearce enforces a zero-compromise specification on every installation.
100% Solid Bare 23AWG Copper
We exclusively fit pure solid bare copper conductors. Cheap Copper Clad Aluminium (CCA) substitutes use thin copper coating over brittle aluminium cores that snap when pulled around joists and overheat under PoE loads.
- Low DC loop resistance ensures reliable PoE++ power
- Rigid conductors maintain tight IDC punch-down grip
- Permanent 25-year conductor service lifespan
Low Smoke Zero Halogen (LSZH)
Older PVC-sheathed cables emit choking black smoke and toxic hydrochloric acid gas when burned. Our cables feature LSZH Euroclass CPR-rated outer jackets that extinguish immediately upon flame removal.
- Complies with UK domestic fire safety standards
- Safe for routing through hollow wall cavities and lofts
- Environmentally certified materials
The 5-Step Data Cabling Protocol
Every network run is meticulously surveyed, routed, punched down, and Fluke certified by certified engineer Gary Pearce.
Route Survey
We trace subfloor joist paths, service ducts, and stud partitions to determine the cleanest concealed pathway.
Floor & Joists
Careful floorboard lifting and Part A compliant joist drilling along the neutral centreline with steel capping.
Cable Pull
Solid copper 23AWG LSZH Cat6/Cat6a pulled through protective grommets, avoiding tight bends or pinching.
Termination
RJ45 modules and patch panel punched down to T568B standard, fitted into flush metal faceplates.
Fluke Test
Calibrated Fluke DSX CableAnalyzer verifies NEXT, return loss, and gigabit link speeds for your certificate.
Transparent Per-Point Cabling Rates
All prices strictly reflect our canonical schedule of rates. Every drop includes solid copper cable, modular faceplate, Part A joist compliance, and Fluke DSX testing.
Cat5e Point
Up to 1Gbps bandwidth at 100MHz. Suitable for basic smart TVs, smart home hubs, and telephone extensions.
- • Solid copper core
- • Modular faceplate
- • Continuity tested
Cat6 Point
Up to 10Gbps at 250MHz over shorter runs. The gold standard for modern smart homes, gaming consoles, and Wi-Fi APs.
- • 23AWG pure copper
- • Internal spline separator
- • Fluke DSX certified
Cat7 Point
Up to 10Gbps at 600MHz with individual pair shielding (S/FTP) to eliminate external electromagnetic interference.
- • S/FTP shielded pairs
- • Superior cross-talk immunity
- • Fluke DSX certified
Cat8 Point
Up to 40Gbps at 2000MHz. Maximum commercial specification for server racks, NAS arrays, and broadcast studio links.
- • 40Gbps data throughput
- • Fully shielded enterprise
- • Fluke DSX certified
Serving Great Harwood & Neighbouring Hyndburn Areas
Gary Pearce delivers rapid on-site network cabling surveys and Cat6 installations across Great Harwood and all surrounding districts.
Frequently Asked Questions
Essential technical guidance on data cabling specifications, joist drilling compliance, Fluke certification, and cable concealment.
Can you install Cat6 cabling without lifting all my carpet and floorboards?
Yes. We use specialized floorboard lifting bars and precision multi-tools to carefully lift selective access tongues along joist runs. In addition, we utilize ceiling voids, partition stud cavities, and existing underfloor service ducts to pull cables with minimal floor disruption.
How do you ensure drilling through floor joists complies with UK Building Regulations?
We strictly adhere to UK Building Regulations Part A structural guidelines. Holes are drilled exclusively within the designated zone of 0.25 to 0.40 of the joist span, positioned accurately along the neutral horizontal centreline with hole diameters kept below one-quarter of the joist depth.
How much does data network cabling cost per point in Great Harwood?
Standard Cat5e network points start from £129 + VAT. Gigabit Cat6 points start from £169 + VAT, 10-Gigabit Cat7 points start from £199 + VAT, and ultra-high-speed Cat8 points start from £240 + VAT per drop, including faceplates, solid copper cabling, and Fluke DSX testing.
What is the difference between solid bare copper and Copper Clad Aluminium (CCA)?
We exclusively install 100% solid 23AWG bare copper cables. Budget installers frequently use Copper Clad Aluminium (CCA) which has high electrical resistance, snaps easily under mechanical tension, fails Power over Ethernet (PoE) safety standards, and violates British Standards.
Do you provide Fluke certification test reports for data installations?
Yes. Every installed permanent link is tested with a calibrated Fluke DSX CableAnalyzer. We measure wiremap, propagation delay, return loss, and Near-End Crosstalk (NEXT) across all pairs to ensure full compliance before project handover.
Can you hardwire gaming consoles, 4K smart TVs, and home offices?
Yes. Hardwiring entertainment and office devices with dedicated Cat6 drops provides continuous gigabit bandwidth with sub-millisecond local latency, bypassing local Wi-Fi congestion to prevent wireless buffering and packet loss.
Do your cables meet UK fire safety regulations for residential properties?
Yes. All cables supplied and fitted feature Low Smoke Zero Halogen (LSZH) outer jackets compliant with Euroclass Construction Products Regulation (CPR), ensuring no toxic halogen gases or dense smoke are emitted in the event of fire.
Can you link a garden office or detached outbuilding with data cabling?
Yes. We install external duct-grade steel wire armoured (SWA) Cat6 cabling or deploy optical point-to-point wireless bridges to connect outbuildings directly to your main home network switch at full 1,000Mbps full-duplex bandwidth.
What network faceplate finishes do you offer?
We install modular Euro-module RJ45 outlets in standard white moulded finishes or premium screwless brushed steel, polished chrome, and matt black faceplates that blend cleanly with modern interior sockets.
How quickly can Gary schedule a data cabling installation in Great Harwood?
We regularly offer convenient survey and installation bookings throughout the week across Great Harwood BB6, Rishton, Clayton-le-Moors, and surrounding Hyndburn areas.
