Data Cabling & Cat6 Installation In Feniscowles, Blackburn BB2
Gary Pearce delivers certified Cat6 and Cat6a structured data cabling installations across Feniscowles and the BB2 district. We cable Victorian stone cottages along Livesey Branch Road by preserving floorboards, and wire modern executive homes on Stockclough Lane and Molden View using stud drops and dot-and-dab routes. All installations strictly comply with Building Regulations Part A joist standards and are certified with Fluke DSX CableAnalyzers.
Non-Destructive Routing In Feniscowles Homes
Running high-performance network cables through solid masonry and period timber requires master trade craftsmanship rather than clumsy surface plastic trunking.
Tongue & Groove Floorboards
In stone cottages along Livesey Branch Road and Preston Old Road, we use specialized multi-cut oscillation blades to cleanly release floorboards along tongue joints without splitting adjacent pine boards. We carefully lift access traps, route Cat6 cables through joist bays, reinstate acoustic subfloor mineral wool, and secure boards flush with countersunk brass screws.

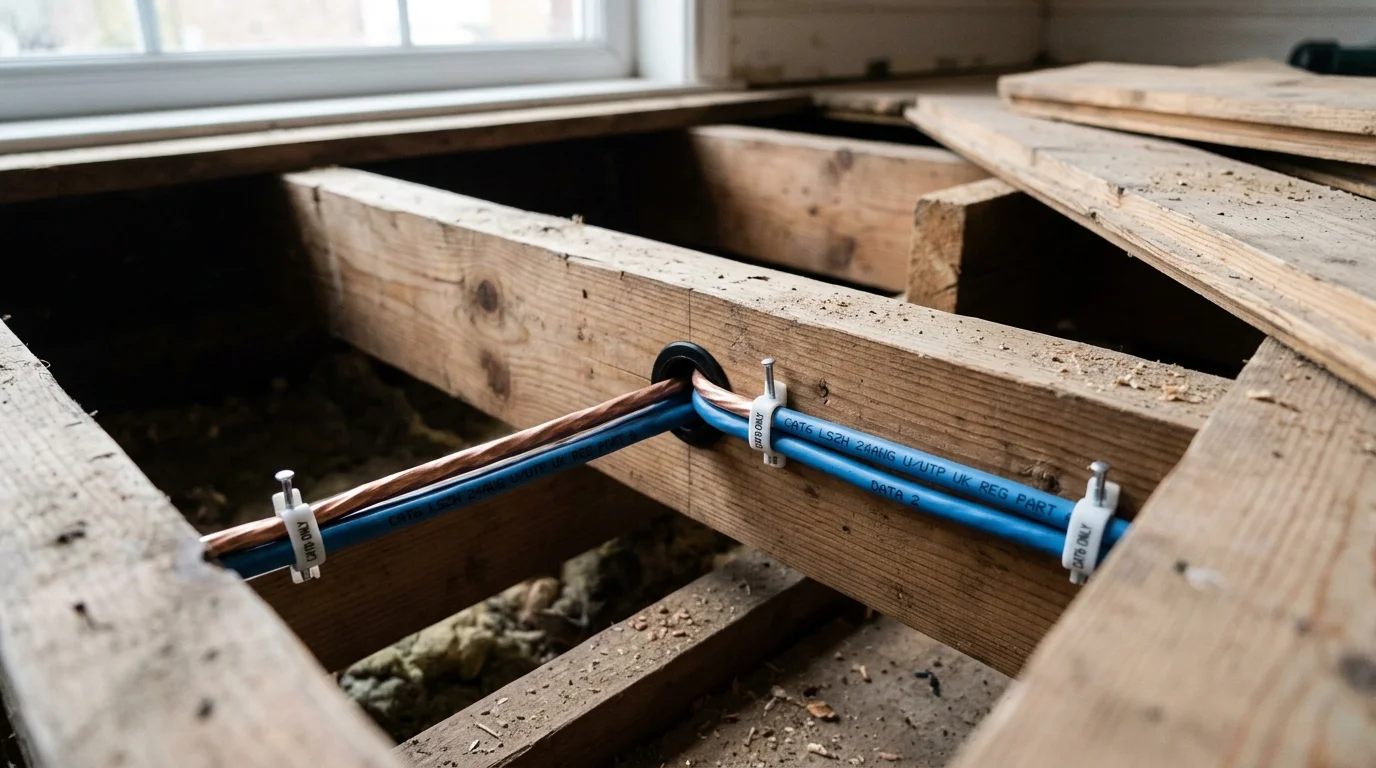

Building Regulations Compliance
We strictly drill through the neutral centreline of structural floor joists between 0.25 and 0.40 of the clear span, fully adhering to UK Building Regulations Part A to prevent joist weakening. Hole diameters never exceed 0.25 times the joist depth, maintaining structural load integrity while providing minimum 50mm separation from parallel 230V mains power cables to prevent electromagnetic hum.
Stone Chasing & Stud Drops
For solid Pennine gritstone walls, we cut narrow vertical channels fitted with protective galvanized metal capping. In modern executive homes on Stockclough Lane and Molden View, we cleanly utilize dot-and-dab wall voids and internal stud drops to route cables invisibly without chasing, finished with surface-flush RJ45 faceplates.
Pure Bare Copper: Zero Compromise
Cheap contractors frequently cut costs by installing Copper Clad Aluminium (CCA) cable. CCA is brittle, suffers severe voltage drops under Power over Ethernet (PoE), and creates fire risks inside joist voids.
Gary Pearce exclusively installs 23 AWG solid bare oxygen-free copper Cat6 and Cat6a cabling with internal cruciform pair separators and Low Smoke Zero Halogen (LSZH) fire-retardant outer jackets.
Fluke DSX CableAnalyzer Certification
Many installers rely on cheap £15 LED continuity testers that only tell you if copper wires touch each other. They cannot detect crosstalk, high return loss, or termination impedance mismatches that destroy 1,000Mbps full-duplex bandwidth.
We certify every installation with calibrated Fluke DSX CableAnalyzers. We perform full Permanent Link tests measuring Near-End Crosstalk (NEXT), wiremap integrity, insertion loss, and loop resistance to verify exact gigabit and 10-gigabit throughput against IEEE 802.3 standards.
By testing across frequencies up to 500MHz for Cat6a, our diagnostic reports verify that your network maintains substantial signal-to-noise margins above ISO/IEC 11801 standards. Every client receives a comprehensive digital report detailing length, propagation delay, and individual pair performance.
Our 4-Step Cabling Workflow
Every structured cabling project in Feniscowles is surveyed, routed, terminated, and certified by Gary Pearce.
Pathway Survey
We inspect floorboard joists, stud cavities, and attic pathways to design completely concealed, discrete cable runs.
Part A Compliant Pull
Solid copper Cat6 cables are routed through neutral joist zones with zero surface clipping across decorated living areas.
RJ45 Termination
Cables terminate into flush modular wall faceplates and central patch panels using certified 360-degree shielded jacks.
Fluke Certification
Every individual point is tested with a Fluke DSX CableAnalyzer, confirming 1Gbps/10Gbps transmission and NEXT margin.
Feniscowles Data Cabling Pricing
All prices per point include 100% solid copper LSZH cable, flush faceplate, termination, Fluke testing, and 25-year warranty.
Cat5e Data Point
Reliable gigabit connectivity for smart TVs, desktop PCs, and secondary bedrooms.
- • Up to 1,000 Mbps bandwidth
- • Solid bare copper conductors
- • Single flush RJ45 faceplate
- • Fluke continuity verification
Cat6 Gigabit Point
Our standard for high-bandwidth home offices, 4K media streaming, and Wi-Fi 6 access points.
- • 250MHz bandwidth rating
- • 23 AWG solid bare copper
- • Internal cruciform spline
- • Fluke DSX permanent link test
Cat7 Shielded Point
Fully individually shielded pairs (S/FTP) for complete immunity against electrical noise.
- • 600MHz bandwidth rating
- • S/FTP double braided shielding
- • High-power PoE++ support
- • Fluke permanent link report
Cat8 40Gbps Point
Ultimate extreme-bandwidth cabling for domestic server racks, NAS arrays, and AV distribution.
- • 2000MHz frequency rating
- • 25G/40G transmission speed
- • Metal die-cast RJ45 jacks
- • Full Fluke certification
Serving Feniscowles & Surrounding Areas
Gary Pearce provides prompt local data cabling and network installation across Feniscowles and adjacent districts throughout Blackburn and the Ribble Valley border.
Frequently Asked Questions
Direct, technical answers regarding domestic data cabling, Cat6 specifications, floorboard preservation, and Fluke certification.
Why is hardwired Cat6 data cabling superior to Wi-Fi in Feniscowles?
Hardwired Cat6 Ethernet cabling provides dedicated 1,000Mbps to 10,000Mbps full-duplex transmission with sub-1ms ping, bypassing local Wi-Fi congestion and impenetrable Victorian stone walls to prevent wireless buffering and packet loss.
How do you run network cables under floorboards without causing damage?
In period stone cottages and Victorian terraces, we use specialized multi-cut oscillation blades to cleanly release individual floorboards along tongue joints without splitting adjacent pine boards, replacing them flush after cabling.
Do your cable routes comply with UK Building Regulations Part A for joist integrity?
Yes. We strictly drill along the neutral centreline of structural floor joists between 0.25 and 0.40 of the clear span, fully adhering to UK Building Regulations Part A to prevent structural joist weakening.
How much does data cabling installation cost per point in Feniscowles?
Standard Cat5e network points start from £129 + VAT, high-performance Cat6 gigabit points start from £169 + VAT, shielded Cat7 points start from £199 + VAT, and ultra-high-speed Cat8 40Gbps points start from £240 + VAT.
Do you install solid bare copper or cheaper Copper Clad Aluminium (CCA) cable?
We install 100% solid bare oxygen-free copper 23 AWG conductors with LSZH fire-retardant outer jackets. We strictly never install CCA cable, ensuring full compliance with IEEE 802.3bt Power over Ethernet standards.
What testing and certification is provided with every data cabling installation?
Every cable run is certified using a Fluke DSX CableAnalyzer, testing NEXT (Near-End Crosstalk), return loss, insertion loss, and wiremap integrity, with printed or digital PASS certification reports provided upon completion.
Can you install an RJ45 data point directly into a solid stone wall?
Yes. We utilise diamond-tipped chasing cutters and protective galvanized metal channel capping to cleanly embed data drops into Pennine gritstone walls, finished with surface-flush single or twin RJ45 faceplates.
Can data cabling be routed out to a detached garden office in Feniscowles?
Yes. We install heavy-duty external grade steel-wire armoured (SWA) Cat6 cabling buried beneath lawns and pathways, or deploy high-frequency 60GHz gigabit point-to-point wireless bridges.
Do you terminate cables into patch panels and rack enclosures?
Yes. In homes with multiple data runs, we terminate all cables neatly into a wall-mounted 6U or 9U comms rack fitted with a 24-port Cat6 patch panel, cable management bars, and dedicated PoE+ switching.
How quickly can Gary install data cabling in Feniscowles?
Most 2 to 4 point domestic installations across Feniscowles and the BB2 district are completed in a single day, with same-week appointments available.
