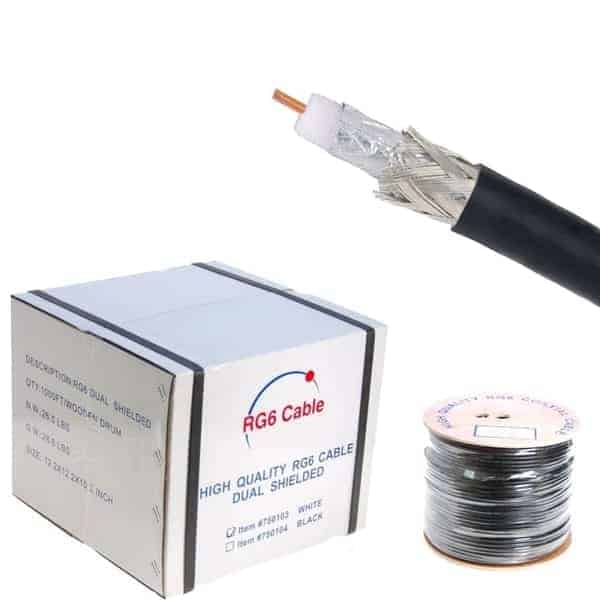

Power and Coax Cable

Specifications

  • SW-30175
  • SolidRun

Features

  • Dual Shielding (95% Braid + Aluminum Foiled Shield)
  • Dual Jacket (PE + PVC)
  • Rated for Outdoor Use
  • 1000ft of RG6 and Power Siamese Cable
  • Wooden Spool
  • Marked in ft intervals
  • ETL Certified
  • CM Jacket (in-wall installation approved)
  • Rated for 75 ohms

UV Specifications

  • RG6
  • 18 AWG Copper
  • 475mm FPE
  • Bonded AL Foil
  • 95% Braid
  • 144*0.12 CCA (coverage)
  • 6.85mm PE

Power Specifications

  • 7*0.377mm CCA
  • 1.8mm PE

Signal Loss (Attenuation) in dB per 100 ft.

  • Loss at 50 MHz: 1.5 dB
  • Loss at 100 MHz: 2.0 dB
  • Loss at 400 MHz: 4.3 dB
  • Loss at 900 MHz: 6.8 dB
  • Loss at 100 MHz: 7.0 dB

Webro CT100 twin coax cable comes is ideal for many different applications, including low power video, a video signal, and broadband signals. It can also be used in many different high-frequency transmissions, especially for transmitters and receivers, computers, radio and TV transmitters.

Power and Coax Cables
