Certified Data Cabling In Whitebirk, Blackburn BB1
Upgrade your Whitebirk home or commercial property with high-speed Cat6 and Cat6a structured network cabling. NVQ-certified data communications specialist Gary Pearce designs clean, concealed network infrastructures with non-destructive subfloor routing, centralised comms racks, and Fluke DSX permanent link certification for low-latency connectivity across Blackburn BB1.

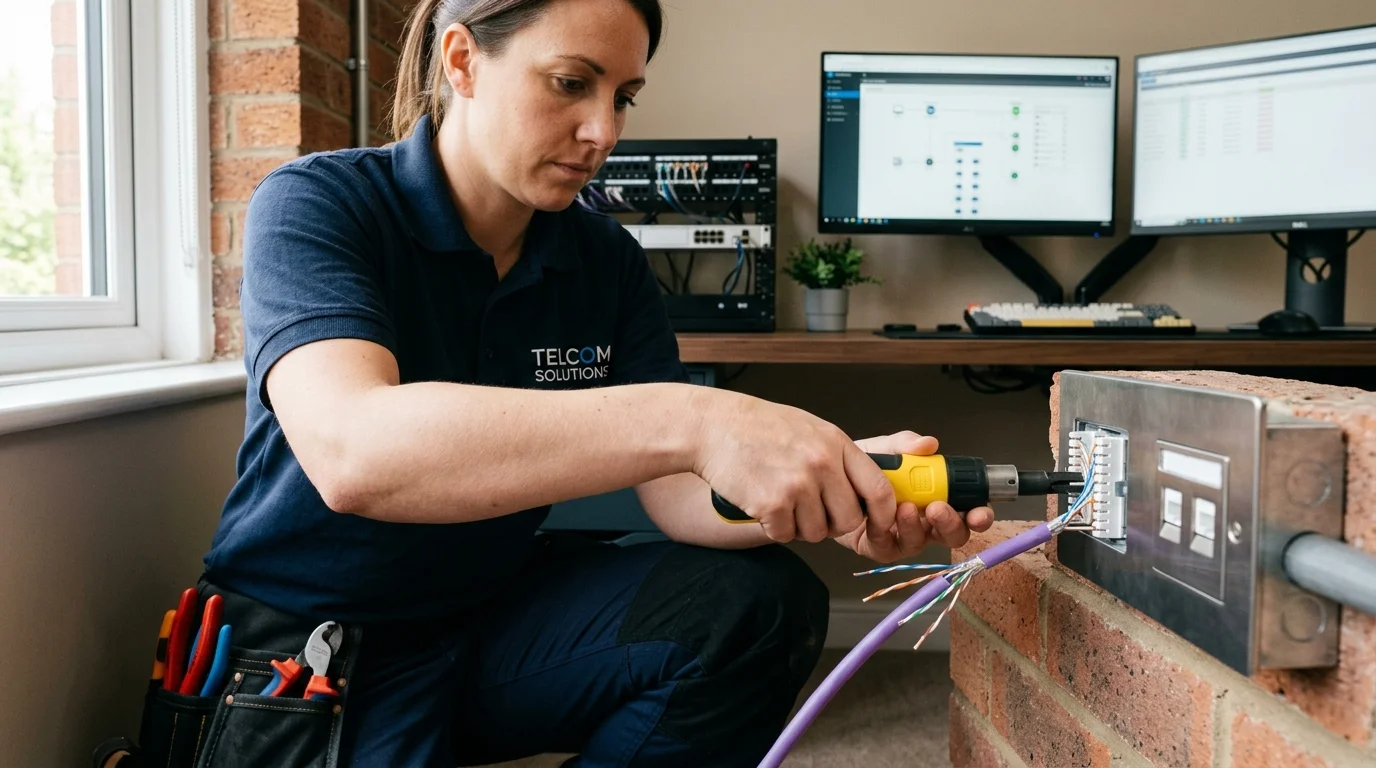

Cat6 Termination into Brushed Steel Faceplate in Dedicated Office
Non-Destructive Routing In Whitebirk Properties
Whitebirk features post-war 1940s-1960s semi-detached and terraced homes along Hereford Road, Gloucester Road, and Accrington Road, alongside modern residential and light commercial units near the canal and Whitebirk Industrial Estate. Surface-mounted plastic trunking ruins interior decor. We engineer fully concealed data cable paths through floors, lofts, and cavities, respecting aesthetic finishes and building safety regulations.

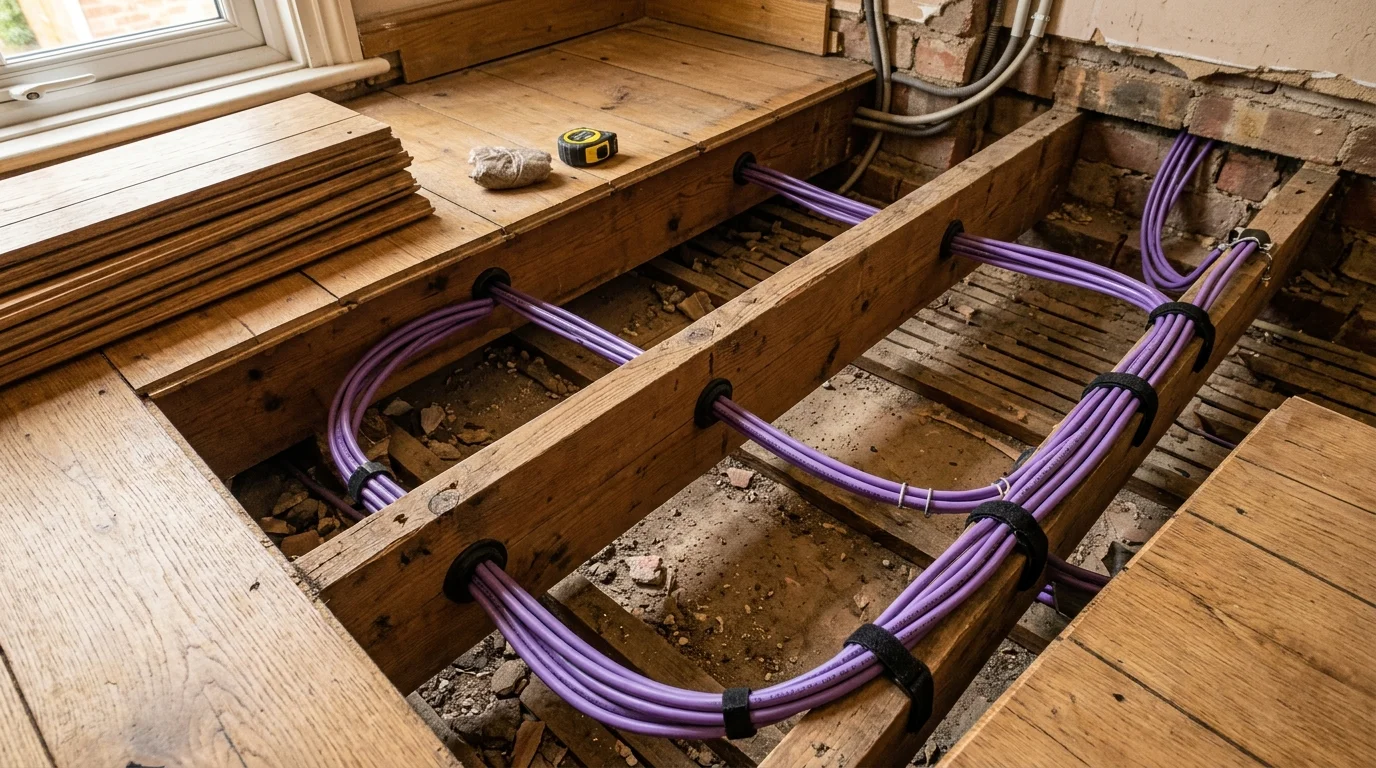

Part A Joist Drilling Compliance
Drilling floor joists incorrectly compromises timber structural strength. We strictly adhere to UK Building Regulations Part A: holes are drilled exclusively between 0.25 and 0.40 of the joist span, positioned on the neutral centreline, and fitted with protective steel nail plates.
Solid Brick & Stud Wall Drops
In post-war solid brick homes, we utilise discrete micro-chasing with galvanised capping or existing structural voids. In modern developments, cables are fed down internal hollow drywall stud partitions using flexible inspection rods to terminate flush into metal back boxes.
Solid Bare Copper (Zero CCA)
We exclusively install genuine 23AWG solid bare copper cables with Low Smoke Zero Halogen (LSZH) outer sheaths. We strictly reject cheap copper-clad aluminium (CCA), ensuring low loop resistance, thermal stability under PoE+, and maximum mechanical resilience.
Preserving Suspended Pine Floors
Whitebirk’s post-war properties feature suspended tongue-and-groove pine floorboards. Ripping up boards with claw hammers causes splintering and expensive aesthetic damage.
Gary Pearce uses specialised timber-splitting circular saw blades and pneumatic board lifters to lift tongue-and-groove pine floorboards without tongue damage. Cables are bound with hook-and-loop ties and shielded with galvanised steel anti-puncture plates before floorboards are refitted flush and secure.
Fluke DSX Permanent Link Certification
Cheap LED continuity testers simply verify that copper wires are connected from point A to point B. They cannot detect high-frequency signal degradation, untwisted conductor crosstalk, or return loss caused by over-tightened cable ties. We verify every cable run using a calibrated Fluke DSX CableAnalyzer.
Near-End Crosstalk (NEXT)
When untwisting pairs during termination, signal bleed between adjacent conductors creates crosstalk. The Fluke analyzer measures NEXT across all frequency bands up to 500MHz (Cat6a), preventing NEXT-induced packet drops and ensuring stable high-speed data transfers.
Return Loss & Impedance Uniformity
Cable kinks or tight bend radiuses alter characteristic 100-ohm impedance, causing signal reflections back toward the transmitter. Our testing confirms return loss margins exceed ISO/IEC 11801 and TIA-568-C.2 industry standards.
Power-over-Ethernet (PoE++) Verification
For powering exterior 4K PTZ CCTV cameras and high-output Wi-Fi 6/7 access points, we verify DC loop resistance imbalance across all conductor pairs, ensuring safe delivery of IEEE 802.3bt Type 4 (90W) PoE without thermal degradation.

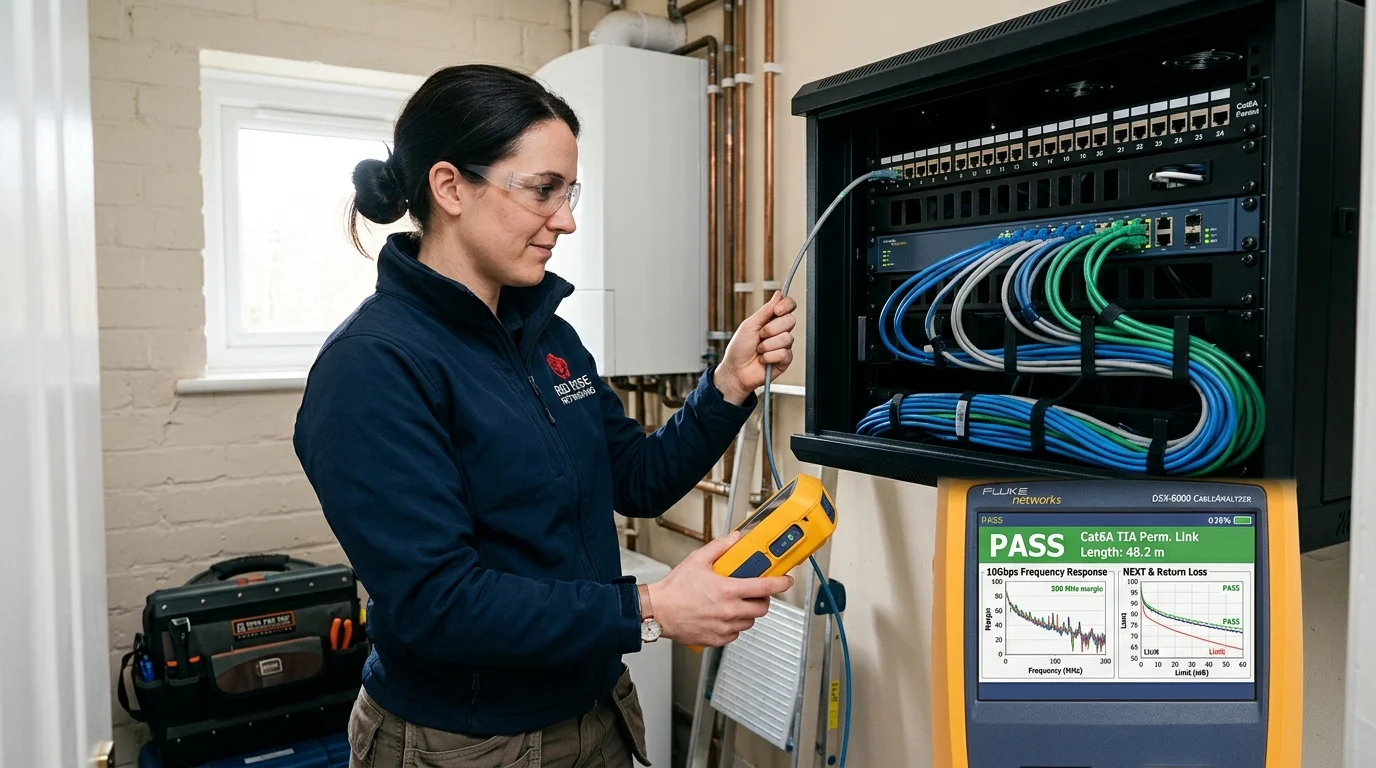

100% Pass Certification on All 8 Conductors with Fluke DSX CableAnalyzer
Centralised Comms Racks & Outbuilding Links
A reliable network infrastructure requires a clean, organised distribution centre. We terminate all incoming data cables onto high-density 24-port RJ45 patch panels enclosed within lockable, ventilated 6U to 12U data racks, providing easy management for your broadband router, network switches, and security recording systems.
Residential & Commercial Enclosures
Installed in utility rooms, cupboards, or office hubs, our wall-mounted network racks consolidate your FTTP optical fibre modem, network switch, Ajax alarm hub, and CCTV NVR into a single tidy location.
- • 19-inch 6U or 9U lockable steel enclosures with glass doors
- • Cat6/Cat6a IDC punch-down patch panels with laser labels
- • Brush strip cable management panels to eliminate wire tangles
- • Integrated PDU surge-protected power distribution sockets
Outbuilding & Workshop Links
Properties in Whitebirk frequently require network links to detached workshops, garages, or garden office cabins. Standard indoor cables degrade when exposed to moisture or temperature extremes. We deploy robust link solutions tailored to your property:
- • Steel Wire Armoured (SWA) Cat6 for direct subsoil burial
- • UV-stabilised external Cat6 aerial catenary cable runs
- • Pre-terminated multi-mode fibre optic runs for electrical isolation
- • 60GHz point-to-point wireless bridges delivering full 1,000Mbps full-duplex bandwidth
Our 5-Stage Structured Cabling Methodology
Every data cabling installation carried out by Gary Pearce follows a structured engineering workflow from initial site survey to Fluke permanent link sign-off.
Site Pathway Survey
We inspect floorboard access, ceiling voids, stud partitions, and cabinet locations to plan discrete routes without visible trunking.
Subfloor Containment
Non-destructive floorboard lifting and precision joist drilling along the neutral centre axis per UK Building Regs Part A.
Cable Pulling & Dressing
Pulling 100% solid bare copper Cat6 LSZH cables, respecting minimum bend radiuses and securing with soft hook-and-loop ties.
IDC Termination
Terminating pairs into EIA/TIA 568B punch-down patch panels and matching brushed metal faceplates with minimal pair untwist.
Fluke Certification
Testing every run with a Fluke DSX CableAnalyzer for wiremap, NEXT, and Return Loss, issuing a printed pass report.
Fixed-Rate Whitebirk Data Cabling Packages
All pricing strictly follows our canonical price manifest. Fully itemised with zero hidden costs.
Cat5e Data Drop
Dependable gigabit data run for smart TVs, basic streaming, and standard IP devices.
- Solid bare copper Cat5e cable
- 1Gbps speed up to 100m
- Flush single RJ45 wall plate
- Continuity & wiremap test
Cat6 High-Speed Drop
Our standard installation for home offices, 4K media, and wireless access points.
- 23AWG solid copper Cat6 LSZH
- 10Gbps capability up to 55m
- Flush double faceplate included
- Fluke DSX certification report
Cat7 Shielded Drop
Individually shielded pairs (S/FTP) for extreme EMI immunity and high-power PoE.
- S/FTP double shielded copper
- 600MHz transmission frequency
- Zero EMI from 230V mains cables
- Fluke DSX certification report
Cat8 Ultra-Speed
40Gbps backbone connections for audio-visual servers and industrial workstations.
- Cat8 S/FTP 2000MHz bandwidth
- 40Gbps line rate up to 30m
- Heavy-duty die-cast metal jacks
- Comprehensive Fluke test suite
Serving Whitebirk & Surrounding Lancashire Districts
Based centrally in Blackburn, Gary Pearce provides responsive structured cabling, data point installation, and Fluke network certification across all surrounding communities and postal districts.
Whitebirk Data Cabling FAQ
Authoritative answers on Cat6 installation, subfloor routing, and Fluke certification.
Why install hardwired Cat6 data cabling instead of relying on Wi-Fi?
Hardwired Cat6 network cabling eliminates wireless latency, packet dropouts, and speed degradation caused by Whitebirk's solid brick walls. It delivers full 1Gbps or 10Gbps symmetrical throughput for home offices, 4K streaming, gaming, and commercial business units near Whitebirk Industrial Estate.
How do you route network cables through post-war homes in Whitebirk without visible trunking?
In post-war homes along Hereford Road and Gloucester Road, we lift suspended pine floorboards using non-destructive lifters without tongue damage, route cabling through floor joists per Part A Building Regulations, and use solid brick micro-chasing or stud drops to land in flush wall plates.
Do your joist drilling methods comply with UK Building Regulations Part A?
Yes. All joist drilling strictly observes UK Building Regulations Part A requirements. Holes are drilled strictly between 0.25 and 0.40 of the joist span, aligned along the neutral centre axis, and capped at 0.25 times the joist depth to preserve floor structural load integrity.
What type of network cable do you install?
We install 100% solid bare copper 23AWG Cat6 and Cat6a cabling with Low Smoke Zero Halogen (LSZH) outer jackets. We strictly avoid cheap copper-clad aluminium (CCA) cables, which suffer from high resistance, conductor brittleness, and poor Power-over-Ethernet performance.
How much does professional data cabling cost per point in Whitebirk?
Single Cat5e network drops start from £129 + VAT. High-performance Cat6 points start from £169 + VAT, Cat7 shielded drops start from £199 + VAT, and ultra-high-speed Cat8 points start from £240 + VAT per point, including testing and termination.
How do you verify and test each installed data cable run?
Every network outlet is certified using a Fluke DSX CableAnalyzer permanent link tester. We measure wiremap continuity, insertion loss, Return Loss, and Near-End Crosstalk (NEXT) across all 4 copper pairs to confirm full gigabit compliance before handover.
Can you install a centralised network patch panel and comms rack?
Yes. We regularly install compact 6U to 12U wall-mounted comms cabinets in utility rooms, under-stair cupboards, or lofts, integrating 24-port Cat6 patch panels, managed Gigabit PoE switches, and uninterruptible power supplies (UPS).
Can you run network data cables to an outbuilding or detached garage in Whitebirk?
Yes. For detached outbuildings, workshops, or garden studios, we install external-grade steel-wire-armoured (SWA) Cat6 cabling via discrete trenching or deploy multi-gigabit 60GHz wireless bridge links where groundwork is not practical.
What qualifications and insurance does Gary Pearce possess?
Gary Pearce holds NVQ Level 1-4 certifications in Data Cabling and Fibre Optics, backed by over 25 years of hands-on communications trade experience and £10 Million Public Liability Insurance coverage.
How quickly can you arrange a data cabling survey in Whitebirk?
Based locally in Blackburn, we provide site surveys and installation visits throughout Whitebirk, Hereford Road, Gloucester Road, Accrington Road, and all BB1 postal districts typically within 24 to 48 hours.
