Data Cabling & Cat6 Installation In Rishton, Blackburn BB1
Future-proof your Rishton home or commercial premises with certified Cat6 and Cat6a Ethernet cabling. Gary Pearce installs pure solid copper data drops routed discreetly beneath period floorboards and through cavity walls, providing sub-millisecond gigabit connections verified by Fluke DSX testing.
Invisible Cable Routing in Rishton Period Homes
Whether your home is on High Street, Commercial Street, or Cut Lane, historic Lancashire properties require specialized data routing techniques that protect original timber, lath-and-plaster walls, and period features.

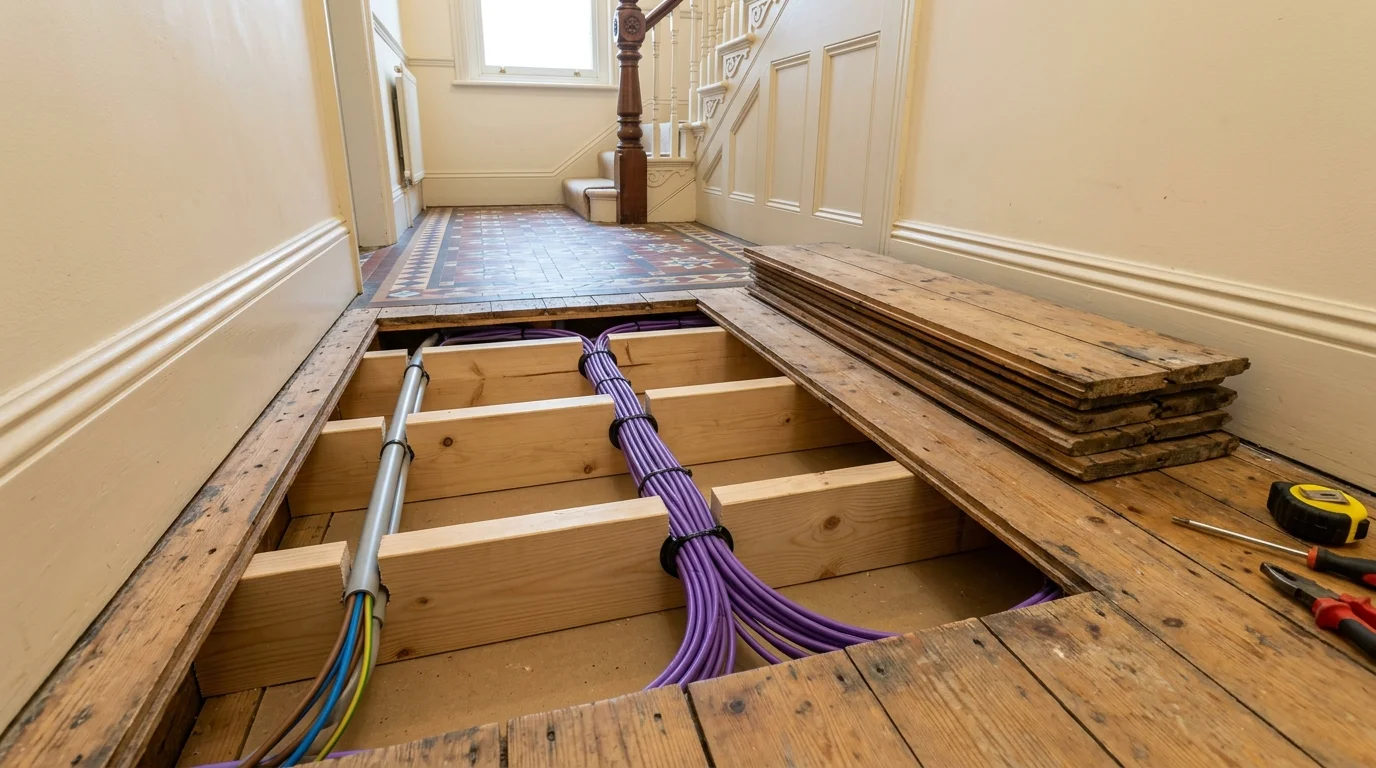

Pine Floorboard Lifting
We lift original tongue-and-groove pine floorboards carefully without split edges or damage to adjoining planks. Cables run through approved joist holes on the structural neutral axis, complying with Part A of the UK Building Regulations for structural integrity.
Cavity & Stud Drops
We route cables through internal stud partitions and plasterboard cavities directly behind baseboards, dropping lines cleanly to flush double-gang metal backboxes with zero unsightly surface trunking.
External UV Mortar Runs
Where internal routing between floors would disturb historic finishes, we run tough UV-resistant black external Cat6 cables along discreet rear mortar recesses, entering rooms through discreet sealed drillings.
Building Regulations & Joist Safety
Indiscriminate notching or drilling of floor joists weakens the structural framework of your home. We follow strict engineering standards on every installation.
-
✓
Approved Joist Drilling Zones: Holes are drilled strictly between 0.25 and 0.4 of the clear span, directly on the neutral centre-line of the timber.
-
✓
Protective Grommets & Sleeving: Cables pass through smooth nylon grommets preventing friction, chafing, and rodent contact beneath the floor.
-
✓
Low Smoke Zero Halogen (LSZH): All cables feature flame-retardant LSZH outer sheaths that emit zero toxic halogens in the unlikely event of fire.
Pure Solid Copper vs Cheap Imitations
The market is flooded with cheap Copper-Clad Aluminium (CCA) cables imported from uncertified sources. CCA features a thin copper plating over brittle aluminium cores, suffering high DC loop resistance, severe signal degradation over distance, and fire hazard risks under Power over Ethernet (PoE) loads. We install exclusively certified 100% solid bare copper structured cabling built to British and European standards (BS EN 50173).
Cat5e Gigabit
100 MHz bandwidth delivering dependable 1 Gbps throughput up to 100 metres. Features 24AWG pure copper conductors, suitable for basic smart televisions, telephony, and standard domestic IP intercom drops.
Cat6 High-Speed
250 MHz bandwidth with internal polyethylene cross-spline separator. Supports full 10 Gbps transmission up to 55m and 1 Gbps up to 100m. Supports IEEE 802.3at PoE+ for Wi-Fi access points and IP cameras.
Cat7 Shielded 10G
600 MHz bandwidth with S/FTP individual foil-shielded pairs and outer braided screen. Significantly mitigates alien crosstalk and EMI from nearby mains electrical wiring in shared conduits.
Cat8 40Gbps Ultra
2000 MHz bandwidth supporting 25G and 40G data transport up to 30 metres. Utilizes zinc diecast shielded RJ45 jacks for high-density audio-visual networks, studio racks, and local NAS storage arrays.

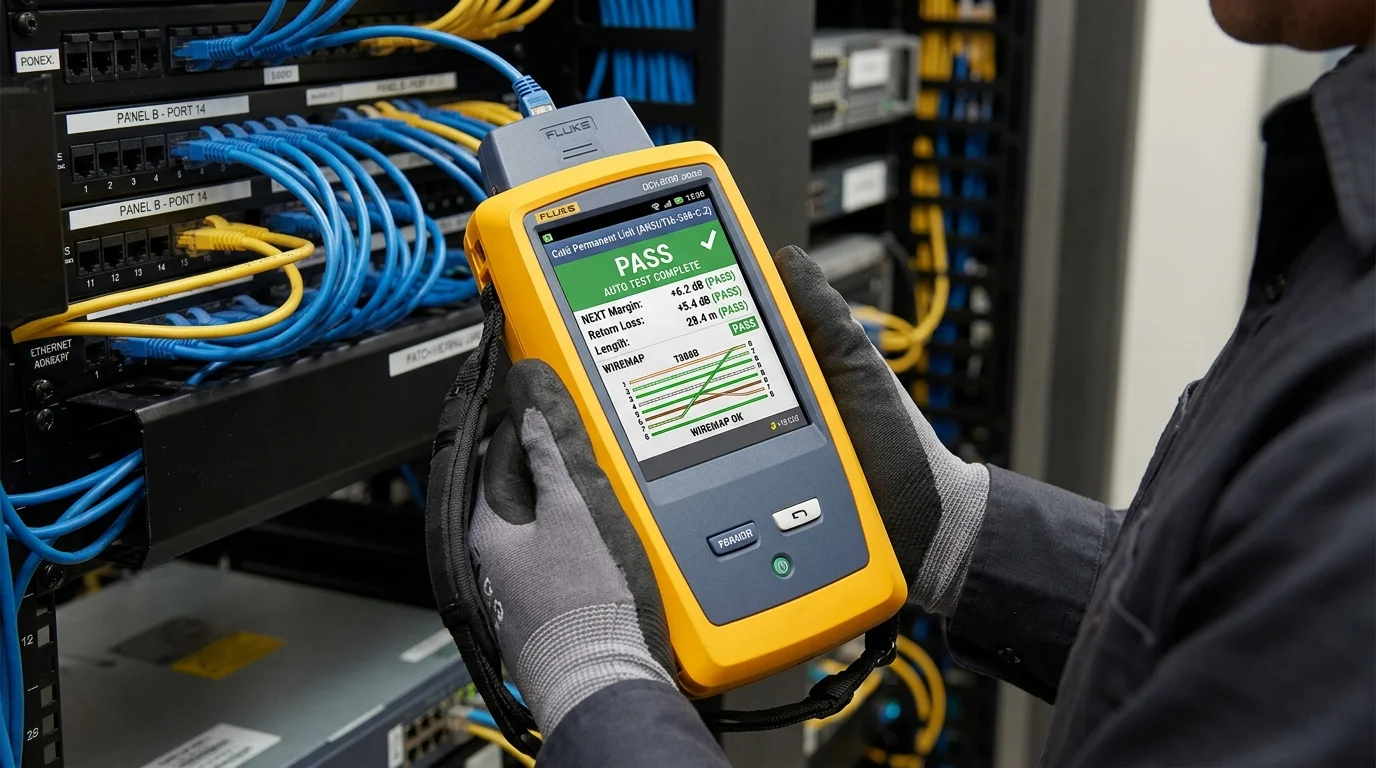

Fluke DSX Permanent Link Certification
A simple continuity LED tester only confirms that wires connect at both ends—it tells you nothing about signal degradation or speed capability.
Near-End Crosstalk (NEXT) Testing
Measures unwanted electromagnetic signal coupling between twisted pairs inside the cable, ensuring packet transmissions remain crystal clear.
Return Loss & Resistance Balance
Verifies that signal energy does not reflect back from terminations, guaranteeing reliable PoE power delivery to CCTV cameras and Wi-Fi access points.
Fixed-Price Data Cabling Packages
Honest per-point pricing with all cabling, floorboard routing, termination, and Fluke testing included.
Cat5e Network
- ✓ 1 Gbps up to 100 metres
- ✓ Pure solid copper conductor
- ✓ Flush single RJ45 faceplate
- ✓ Fluke continuity & wiremap test
Cat6 High-Speed
- ✓ 10 Gbps up to 55m / 1Gbps 100m
- ✓ 23AWG solid copper conductor
- ✓ Premium Euro-module faceplate
- ✓ Full Fluke DSX certification
Cat7 10Gbps
- ✓ 600 MHz 10 Gbps shielded link
- ✓ S/FTP individual pair shielding
- ✓ Maximum EMI/RF noise rejection
- ✓ High-density patch termination
Cat8 Performance
- ✓ 2000 MHz 25G/40G bandwidth
- ✓ Heavy-duty metal diecast jacks
- ✓ Audiophile & server rack grade
- ✓ Zero-compromise data transport
* Multi-point discounts automatically applied for 4+ sockets. Custom patch rack & cabinet integration quoted on survey.
Verified Network Drops In Rishton
Actual Fluke DSX-8000 permanent link test certificates captured on residential network installations across Rishton BB1 properties.
4-Point Cat6 Acoustic Media Wall
Routed 4 discrete solid copper Cat6 lines beneath pine hallway floorboards to feed an Apple TV 4K, PlayStation 5, Sky Stream, and AV receiver directly.
Dual Cat6 Drops from Hallway ONT
Installed 2 dedicated network drops from the ground floor CityFibre ONT up two flights of stairs through cavity stud drops to a dual brushed steel faceplate.
Serving Rishton BB1 & Surrounding East Lancashire
Based centrally in Blackburn, ADI Communications provides dedicated residential and commercial data cabling installations across Rishton and surrounding towns.
Frequently Asked Questions
Straightforward trade answers regarding data cabling and Ethernet installations in Rishton properties.
Why install hardwired Cat6 Ethernet cabling instead of using Wi-Fi?
Hardwired Cat6 Ethernet cabling delivers dedicated full-duplex 1,000Mbps full-duplex bandwidth with rock-solid sub-millisecond local latency. Unlike Wi-Fi, physical network cables are immune to radio interference, thick Pennine stone wall attenuation, and bandwidth contention from neighbouring domestic routers.
Can you run network cables cleanly in older Rishton stone terrace houses?
Yes. We specialise in period property cable concealment. We lift original Victorian tongue-and-groove pine floorboards with precision, route cables through compliant joist zones, and drop lines through wall cavities with zero surface plaster damage.
Do you use cheap copper-clad aluminium (CCA) cables?
Never. We exclusively install 100% solid bare copper 23AWG Low Smoke Zero Halogen (LSZH) cabling from premium British and European manufacturers like Excel and Connectix. Solid copper complies fully with British electrical safety standards and supports high-power PoE++.
How do you test and verify newly installed data points?
Every installed network drop is certified using a calibrated Fluke DSX CableAnalyzer. We test wiremap continuity, cable length, return loss, propagation delay, and Near-End Crosstalk (NEXT) margins to ensure guaranteed gigabit or 10-gigabit performance.
How much does data cabling installation cost in Rishton?
Single Cat5e network points start from £129 + VAT. High-speed Cat6 network drops start from £169 + VAT per point, shielded 10Gbps Cat7 drops start from £199 + VAT, and ultra-high-speed Cat8 drops start from £240 + VAT. Multi-point discounts apply for 4 or more sockets.
What faceplate finishes are available for living rooms?
We supply standard white moulded plastic faceplates, premium brushed stainless steel, polished chrome, black nickel, and screwless plates to match your existing light switches and electrical sockets.
Can you run Cat6 cabling to an outbuilding or garden office?
Yes. We install heavy-duty external PE duct-grade Cat6 cables or pre-terminated armoured fibre optic links designed for direct burial or catenary wire suspension across garden spans.
How long does installing data cabling take?
A typical residential installation of 2 to 4 Cat6 points in Rishton takes between 3 and 5 hours, including subfloor routing, wall termination, and Fluke DSX certification testing.
Connect Your Rishton Home with Cat6
Speak with Gary Pearce today for trade guidance on routing options and a clear, fixed-price data cabling quote.
