Data Cabling & Cat6 Installation In Livesey, Blackburn BB2
Upgrade your Livesey home with professional structured data cabling and Ethernet networking. Certified data engineer Gary Pearce installs solid bare copper Cat6 and Cat6a lines, routing cables neatly beneath subfloors and partition cavities without surface disruption, delivering full 1,000Mbps full-duplex bandwidth with comprehensive Fluke permanent link testing across BB2.

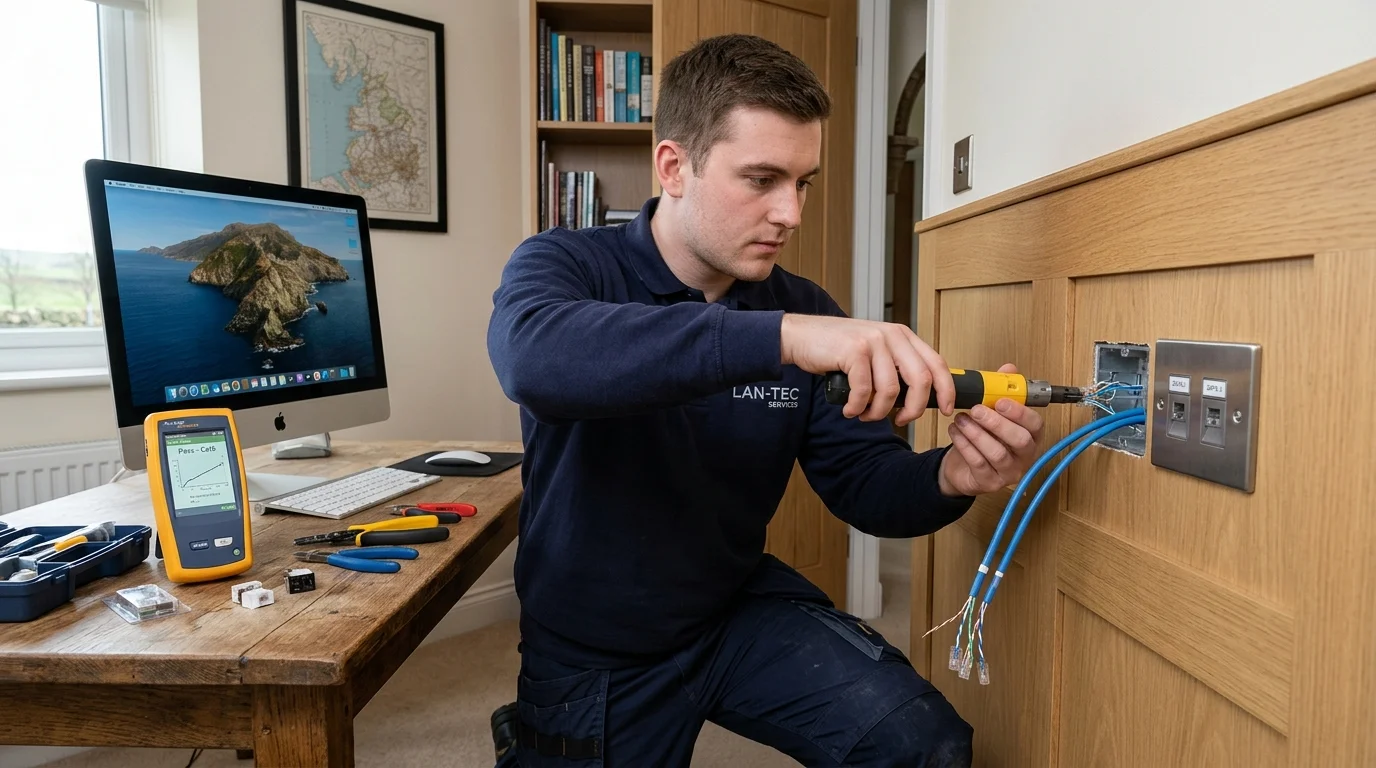

Cat6 Twin RJ45 Faceplate Termination with Fluke CableAnalyzer Validation
Subfloor Routing & Building Regulations
Running Ethernet cables across finished homes demands trade carpentry skills. We take pride in routing cables cleanly beneath floors and behind drylined walls without ugly surface trunking.

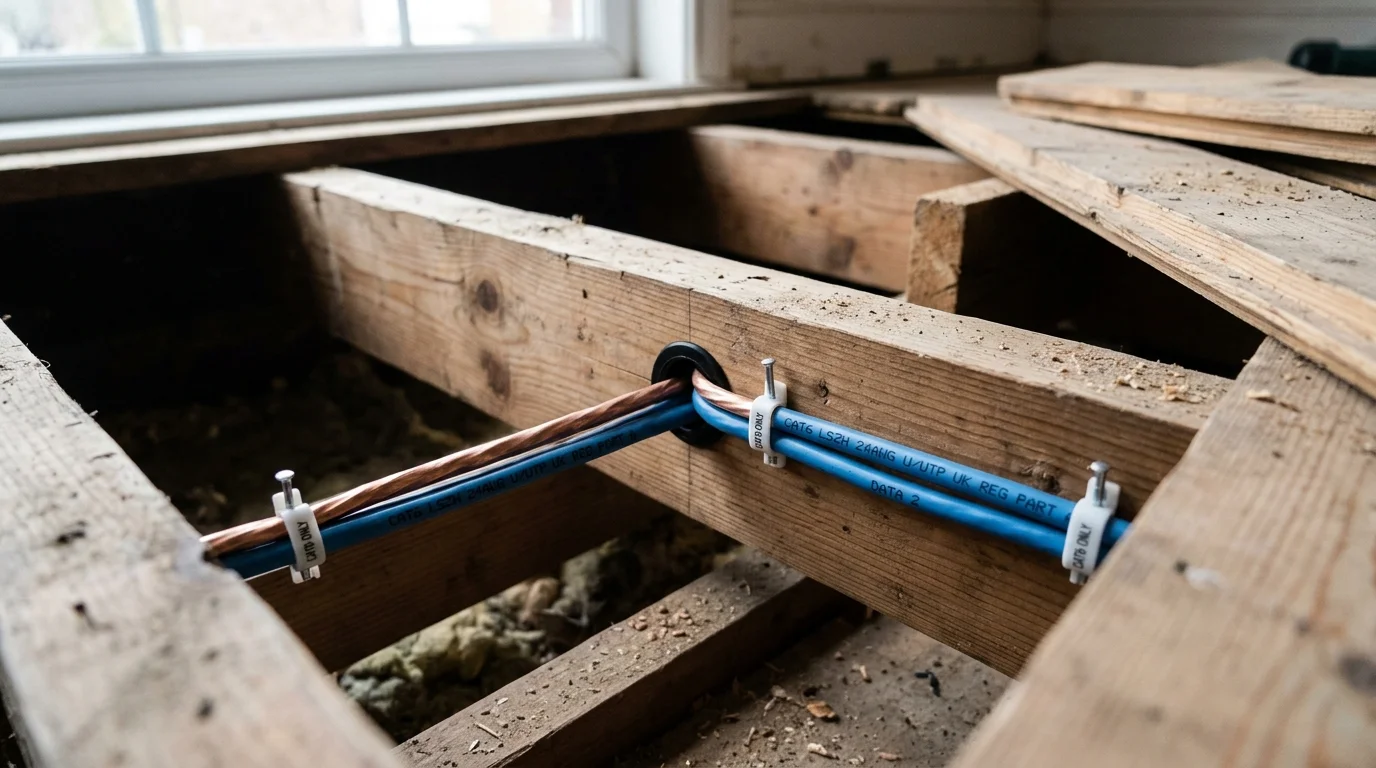

Subfloor Joist Integrity
In traditional homes along Livesey Branch Road, floor joists must be protected. We drill strictly along the neutral axis between 0.25 and 0.4 of span compliant with Part A of UK Building Regulations.
- ✓ Zero structural joist weakening
- ✓ Smooth nylon grommets prevent chafing
- ✓ Perimeter carpet edges rolled back neatly
Modern Stud Partition Drops
Executive homes in Gib Lane estates feature hollow timber and metal stud walls. We fish cables through internal wall cavities down to flush-mounted metal backboxes.
- ✓ Zero visible surface conduit in living spaces
- ✓ Precision cut-outs for modular faceplates
- ✓ Clean acoustic insulation re-packing
External Armoured Drops
Connecting detached garages or garden studios on Broken Stone Road where indoor routing is impossible. We use black external UV-rated or steel-wire armoured (SWA) Cat6.
- ✓ Heavy-duty UV-stabilized outer jacket
- ✓ Neatly tacked along masonry mortar lines
- ✓ Weatherproof IP66 external junction boxes
Solid Copper vs Copper Clad Aluminium
The market is flooded with cheap Copper Clad Aluminium (CCA) cabling that suffers brittle fractures, high DC resistance, and creates fire hazards under Power over Ethernet (PoE). We install 100% solid oxygen-free bare copper.
ADI Trade Standard: 100% Solid Bare Copper
Our 23AWG/24AWG solid bare copper cables feature pure continuous conductors with Low Smoke Zero Halogen (LSZH) fire-rated sheathing compliant with Construction Products Regulation (CPR).
- ✓ Low DC loop resistance for full 90W PoE++ delivery
- ✓ High tensile strength prevents snapping during tight pulls
- ✓ Full 10 Gbps capability up to 55m (Cat6) and 100m (Cat6a)
- ✓ Certified compliance with TIA/EIA-568-B wiring standards
Banned: Cheap Copper Clad Aluminium (CCA)
Many budget installers use CCA cable to cut costs. CCA consists of an aluminium core thinly dipped in copper, creating severe network bottlenecks and physical degradation.
- ✗ 55% higher electrical resistance causing severe voltage drop
- ✗ High risk of conductor overheating and fire under PoE load
- ✗ Brittle aluminium snaps easily during installation bends
- ✗ Fails official Fluke DSX permanent link certification

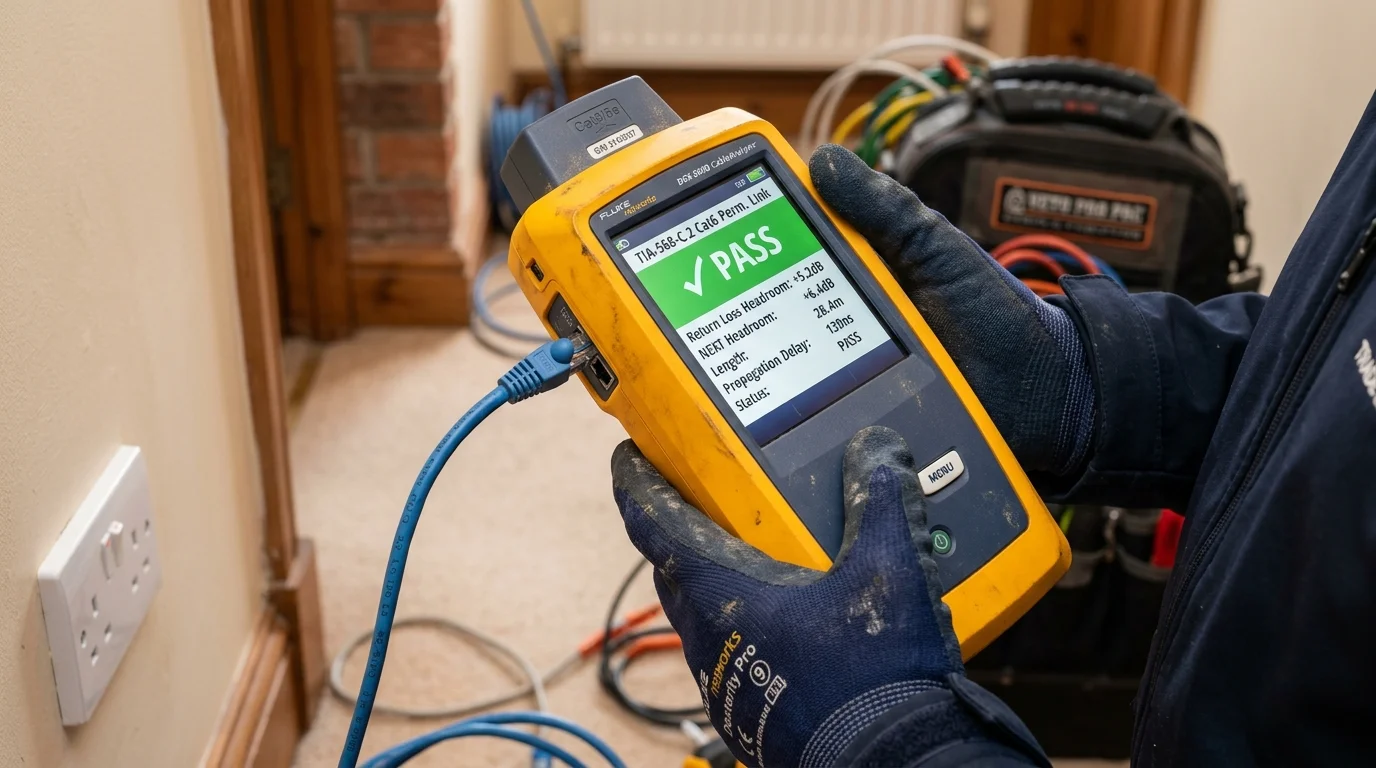

Fluke DSX Permanent Link Certification
A basic LED continuity tester only tells you that pins 1 to 8 are connected. It cannot detect high-frequency crosstalk, return loss, or cable damage that ruins high-speed performance. We test every installed point with an industry-grade Fluke DSX CableAnalyzer.
Our 5-Stage Cabling Protocol
Every data cabling installation carried out by Gary Pearce follows a structured trade methodology to ensure maximum longevity and structural care.
Route Survey
Assessing underfloor spaces, stud cavities, and attic pathways to plan discrete cable containment.
Safe Joist Pulls
Pulling solid copper LSZH cables along joist centerlines with nylon grommets conforming to Part A regs.
Backbox Fitting
Precision installation of recessed metal backboxes and modular faceplates matching your home decor.
Punch-Down
IDC punch-down termination on patch panel and faceplates maintaining pair twist within 13mm.
Fluke Testing
Calibrated Fluke DSX permanent link certification testing every line, delivering electronic pass reports.
Livesey Data Cabling Packages
All prices from canonical trade guidance. Includes 100% solid copper LSZH cabling, faceplates, and Fluke certification.
Cat5e Network Point
Reliable gigabit connectivity for home printers, IP smart thermostats, and general domestic web browsing.
- ✓ 1000 Mbps bandwidth
- ✓ 100% Solid bare copper
- ✓ Flush RJ45 faceplate
Cat6 Gigabit Point
Ideal for remote working, 4K streaming, gaming consoles, and Wi-Fi access point hardwired backhauls.
- ✓ 10 Gbps up to 55m
- ✓ 250 MHz frequency
- ✓ Fluke certification pass
Cat7 Shielded 10G
Enhanced double-shielded cabling for media walls, high-end audio setups, and low-latency gaming PCs.
- ✓ 600 MHz bandwidth
- ✓ Individual pair shielding
- ✓ High EMI noise immunity
Cat8 Studio Point
Ultra-high performance shielded 40 Gbps infrastructure for home labs, video editors, and server racks.
- ✓ Up to 40 Gbps speed
- ✓ 2000 MHz frequency
- ✓ Fully shielded S/FTP
Livesey & Surrounding Cabling Service Areas
Fast response surveys and certified data cabling installation across all Livesey communities and surrounding districts.
Frequently Asked Questions
Straightforward technical answers regarding data cabling and home Ethernet installation across Livesey and BB2.
Why is hardwired Cat6 data cabling recommended over Wi-Fi for Livesey home offices?
Hardwired Cat6 Ethernet delivers dedicated full duplex 1,000 Mbps bandwidth with sub-millisecond latency. Unlike wireless connections which suffer packet loss and latency spikes through thick Lancashire masonry walls and foil insulation, a physical copper link guarantees jitter-free Zoom calls, instant cloud syncing, and reliable high-speed data transfer.
How do you route network cables across a 1930s Livesey home without lifting all carpets?
We lift individual perimeter carpet edges and localized floorboards to route cabling beneath tongue-and-groove flooring. We drill through the neutral axis of floor joists compliant with Part A of UK Building Regulations, protecting cables with nylon grommets and vacuuming the floor void before relaying flooring pristinely.
What is the difference between Cat6 and Cat6a cabling for domestic installation?
Standard Cat6 supports 1 Gbps up to 100 metres and 10 Gbps up to 37-55 metres at 250 MHz frequency. Cat6a features tighter internal pair twists, internal splines, and enhanced shielding, operating at 500 MHz to support full 10 Gbps speeds across complete 100-metre runs with superior alien crosstalk rejection.
Do you install data sockets behind wall-mounted TVs and gaming consoles?
Yes. We install recessed dual or quad RJ45 brushed steel or white faceplates behind media consoles and wall-hung TVs. Hardwiring smart TVs, Apple TV units, Sky Stream boxes, and PlayStation consoles frees up Wi-Fi airtime for handheld mobile devices.
How do you verify and certify each completed data cable run?
Every network drop is tested using a calibrated Fluke DSX CableAnalyzer. We measure wiremap continuity, length, propagation delay, insertion loss, return loss, and Near-End Crosstalk (NEXT) against TIA-568-C.2 industry standards, providing customers with an official pass certificate.
Do you use solid bare copper cable or cheaper Copper Clad Aluminium (CCA)?
We exclusively install 100% solid bare oxygen-free copper 23AWG/24AWG cable with Low Smoke Zero Halogen (LSZH) sheaths. We strictly reject cheap Copper Clad Aluminium (CCA) cable, which suffers high resistance, micro-fractures, and fails PoE fire safety standards.
Can you run external data cabling to a detached garden office on Broken Stone Road?
Yes. We install external-grade, UV-resistant black polyethylene (PE) or steel-wire armoured (SWA) Cat6 cables. Cables can be routed neatly along fence rails, clipped along mortar lines, or laid through underground ducting to detached outbuildings.
Can data cabling deliver power to devices such as CCTV cameras and Wi-Fi access points?
Yes. Our solid copper cabling fully supports Power over Ethernet standards (PoE 802.3af, PoE+ 802.3at, and PoE++ 802.3bt), delivering up to 90 watts of direct DC power down the network cable to access points, IP cameras, and VoIP desktop phones.
Do you install central patch panels and network racks in utility rooms?
Yes. We install compact 6U or 9U wall-mounted data cabinets in utility spaces, understairs cupboards, or garages. All cables terminate neatly into a labelled 12-port or 24-port patch panel, linked to a Gigabit PoE+ switch for clean network management.
What warranty and qualifications do you provide for Livesey cabling work?
All installations are carried out by Gary Pearce, qualified to NVQ Level 1-4 Data Cabling and Fibre standards with over 25 years trade experience. Work is protected by a 5-year physical workmanship guarantee and £10 Million Public Liability Insurance.
