CT100 Cable

  • Inner conductor Plain Pure Copper
  • Dielectric Foamed-Polyethylene Insulation
  • Screen Copper Tape
  • Screen Copper Braid
  • Sheath PVC Sheath.

MECHANICAL CHARACTERISTICS

1. Inner conductor. Diameter: 1.00 mm Plain Annealed Copper
2. Insulation: Diameter: 4.80mm (Natural)
3.1 Screen: Plain copper foil tape
3.2 Screen: Plain Copper Wire BraidCoverage >40%
4. Sheath: Diameter: 6.55 ± 0.30mm
5. Cable: Storage/operating temperature: -15°C to +70°C
6. Minimum installation temperature: -5 °C

CT100 cable Electrical characteristics

  • DC resistance Inner conductor: ≤ 26 Ω/km @ 20°C
  • DC resistance Outer conductor: ≤ 15 Ω/km @ 20°C
  • Characteristic Impedance: 75 ± 3Ohm
  • Capacitance: 55pF/m (nominal)
  • Velocity Ratio: 0.81
  • Attenuation (d/B 100m @ 20°C
  • Return Loss
  • 5 – 470MHz ≥23
  • 470 – 862MHz ≥20
  • 862 – 2150MHz ≥18

CT100 Cable is Very low loss cable made with pure copper. As approved by SKY and Confederation of Aerial Installers (CAI) cai.org.uk

Ideal for all applications for Sky, Freeview, Freesat, Virgin media and any other digital satellite systems. This high-grade cable gives superior results for longer cable runs or where signals are marginal, communal systems, or just where you want to install the best equipment for the job.

Coaxial cables are suitable for many applications, including low power video, video signal, and broadband signals. They are also used in high-frequency transmission, especially for transmitters and receivers, computers, radio and TV transmissions. Learn More about CT100 cable installations.

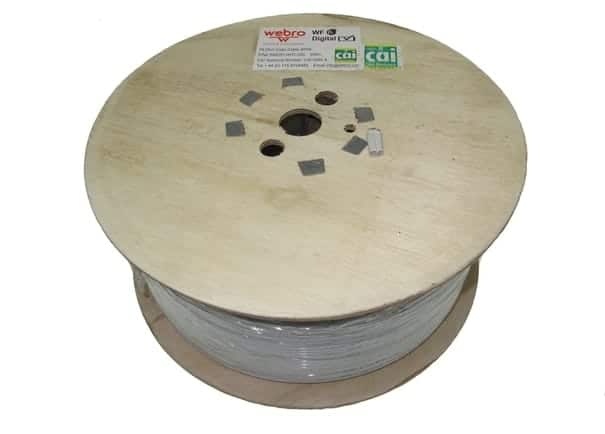

CT100 Coax Cables
