Digital TV Aerial Installation In Rishton, Blackburn BB1
Enjoy crystal-clear Freeview HD with zero pixelation across Rishton. Gary Pearce installs high-gain benchmarked digital aerials aligned to Winter Hill using non-drill stainless chimney lashing cradles, complete with double-screened WF100 cabling and integrated 4G/5G interference filters.
Winter Hill Alignment & Rishton Topography
Rishton sits in an undulating valley dip near the canal basin and reservoir, with rising land towards Oswaldtwistle and Great Harwood. Aligning digital aerials in this terrain requires calibrated signal meters and proper antenna group selection.
Direct Bearing Alignment
Winter Hill transmits digital Freeview multiplexes with horizontal polarization at a bearing of 198° south-south-west. We use precision spectrum analyzers to tune azimuth and elevation, securing maximum modulation error ratio (MER > 32dB).
Cellular Mast Filtering
High-power 4G (800MHz) and 5G (700MHz) cellular masts around Rishton and the M65 corridor overload older wideband aerials, creating severe channel blocking and pixilation. All our aerials feature integrated high-rejection LTE bandpass filters.
Double-Screened Coaxial Drops
Cheap air-spaced coaxial cable allows moisture ingress and RF signal leakage. We install exclusively CAI-benchmarked WF100 double-screened pure copper cabling with gas-injected foam dielectric, ensuring lifetime signal purity.

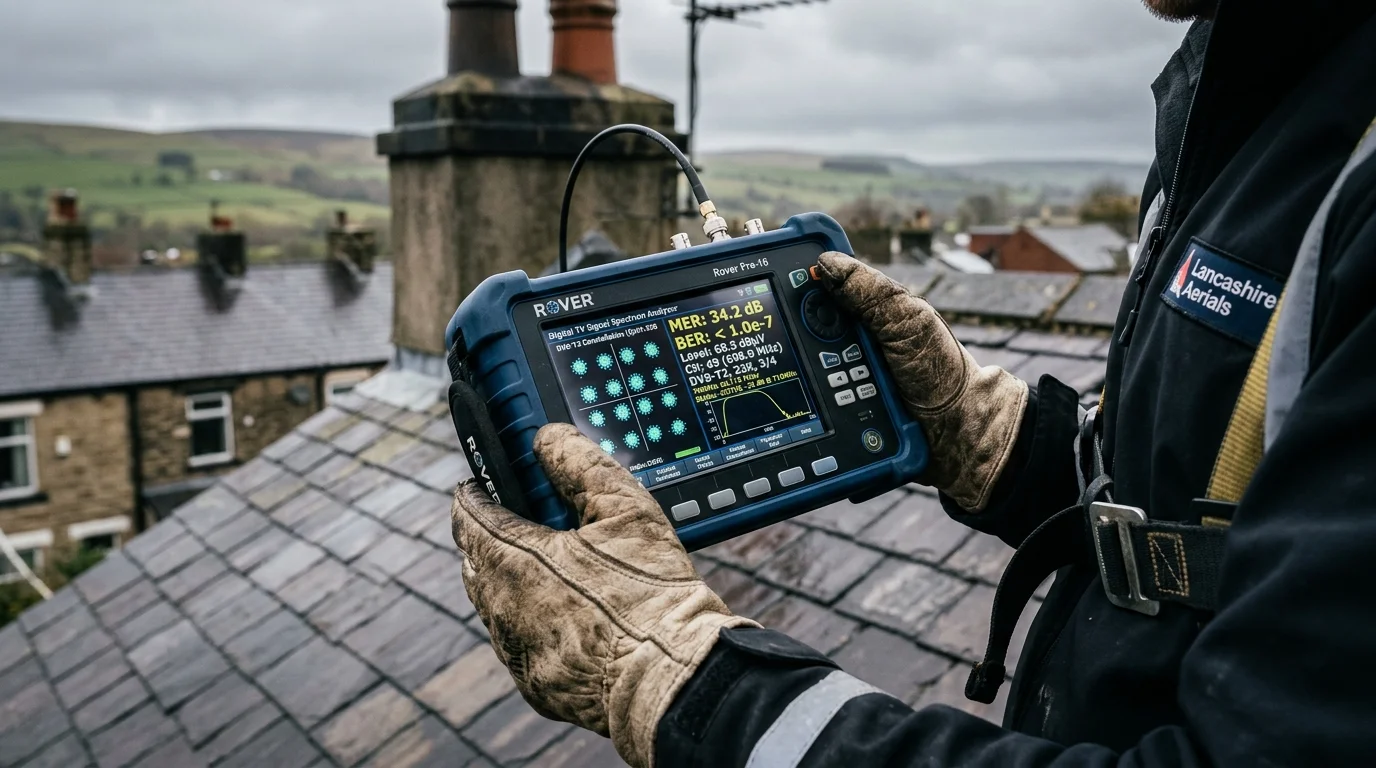

Calibrated Digital Spectrum Analysis
We never guess signal direction or rely on television signal bars. Every installation is calibrated using professional Rover spectrum equipment to ensure broadcast compliance.
-
✓
Modulation Error Ratio (MER > 32dB): Guarantees a high signal-to-noise ratio, ensuring HD Freeview channels never glitch or drop audio.
-
✓
Pre-Viterbi Bit Error Rate (BER < 1e-7): Verifies that the digital data stream arriving at your TV tuner is virtually error-free.
-
✓
4G & 5G LTE Attenuation Verification: Tests that mobile frequencies above 694MHz are attenuated by at least 40dB before entering the coaxial run.
CAI-Benchmarked Broadcast Hardware
We strictly install equipment tested and certified to CAI benchmark standards. Designed to withstand Pennine winters and deliver spotless 1080p and 4K digital transmissions.
52-Element Multi-Beam
Constructed from heavy-gauge alloy elements with reinforced reflector grids. Delivers 14.5 dBi forward gain across group K frequencies.
Integrated 5G Filter
Sharp cut-off SAW bandpass filter rejecting frequencies above 694 MHz. Blocks intermodulation from nearby mobile base stations.
Webro WF100 Coaxial
Pure copper solid centre conductor with double copper foil and braid shielding. Zero degradation over long roofline drops.
Screened Loft Amp
Fully screened zinc die-cast housing feeding multiple television points with balanced output levels and minimal noise figure.

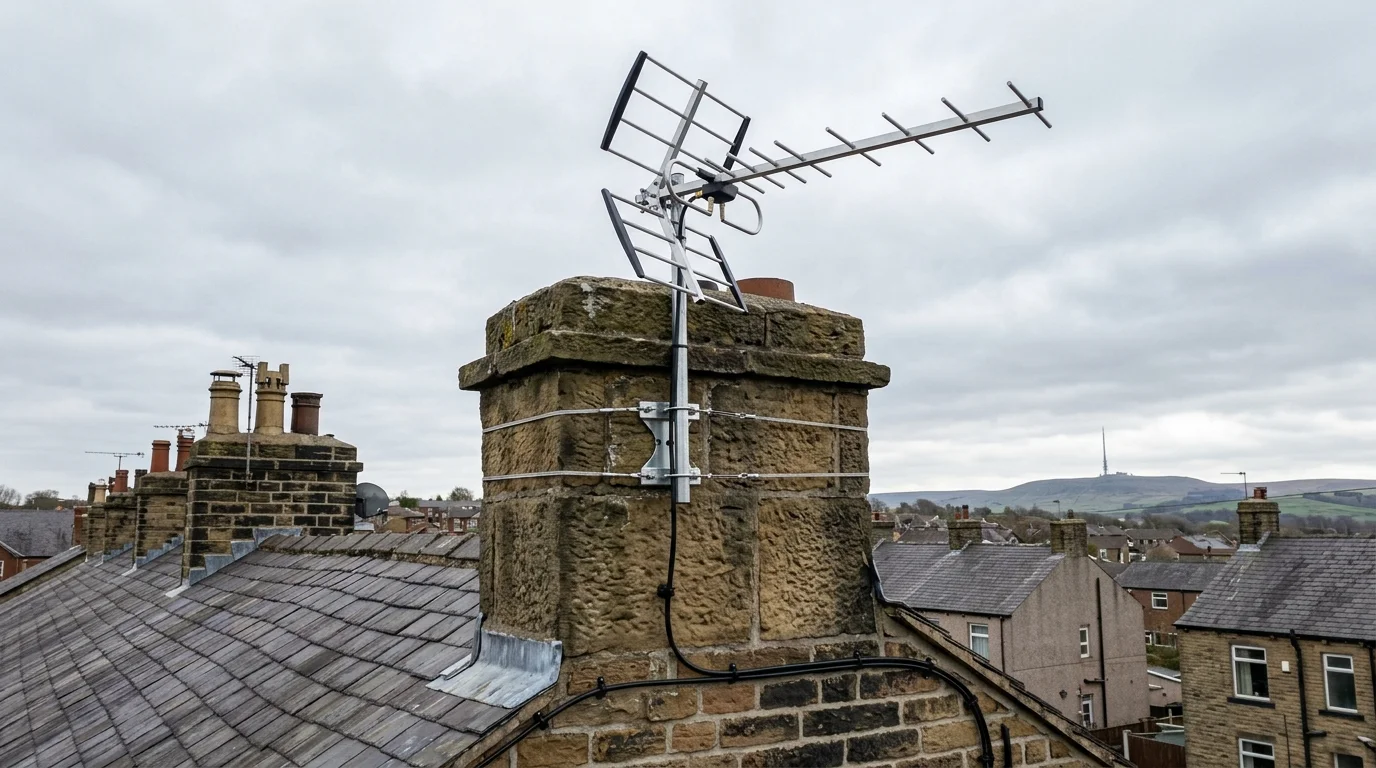

Protecting Rishton's Stone Chimneys
Drilling masonry anchors directly into Victorian gritstone chimneys risks fracturing historic stones and loosening lime mortar beds. We use non-drill chimney lashing systems.
Stainless Steel Non-Drill Cradles
Heavy-duty chimney cradles secured with high-tensile galvanized wire tensioned around the stack. Distributes wind loading evenly with zero masonry penetration.
Pennine 90mph Gale Rating
Rigid 1.5-inch alloy or galvanized steel masts clamped with heavy-duty serrated V-bolts. Holds alignment securely through severe winter gales.
Fixed-Price TV Aerial Packages
Clear, honest pricing with all benchmarked equipment, heavy-duty brackets, cabling, and alignment included.
Standard Digital Aerial
- ✓ CAI-benchmarked digital Freeview aerial
- ✓ Heavy-duty chimney cradle or gable mount
- ✓ 1x WF100 copper coaxial cable drop
- ✓ Calibrated Winter Hill signal alignment
- ✓ TV tuning & Freeview channel verification
High-Gain & 5G Shielded
- ✓ 52-Element high-gain multi-beam aerial
- ✓ Integrated 700MHz/800MHz LTE bandpass filter
- ✓ Non-drill stainless chimney lashing cradle
- ✓ Double-screened WF100 cabling
- ✓ Ideal for valley dips and reservoir zones
Multi-Room Amplified
- ✓ High-gain aerial with LTE 5G rejection
- ✓ Screened low-noise masthead loft amplifier
- ✓ Feeds 4 to 8 television points independently
- ✓ Dedicated WF100 coaxial drops per room
- ✓ Eliminates pixelation on all connected screens
Verified Reception Restorations In Rishton
Actual signal measurements captured on calibrated Rover spectrum analyzers before and after physical antenna upgrades in local Rishton BB1 residences.
Severe 5G Intermodulation & Channel Loss
Customer lost BBC One HD and ITV HD whenever mobile traffic spiked on the local mast. Old wideband aerial was pulling in heavy 700MHz cellular interference.
Multipath Reflections & Weak Signal
Low-lying property shielded by the railway embankment suffered weak Freeview signal and degraded picture quality across all digital multiplexes.
Serving Rishton BB1 & Surrounding East Lancashire
Based centrally in Blackburn, ADI Communications provides dedicated digital aerial installation and repairs across Rishton and surrounding towns.
Frequently Asked Questions
Straightforward trade answers regarding digital TV aerial installation in Rishton.
Which transmitter provides digital TV signals to Rishton?
Rishton receives its primary digital terrestrial Freeview television signal from the main Winter Hill transmitting station, located approximately 14 miles to the south-south-west (bearing 198°). Signals transmit with horizontal polarization across wideband UHF frequencies.
Why do some Freeview channels pixelate or break up in Rishton?
Pixelation in Rishton is typically caused by two factors: local topographical shielding in low-lying streets near the reservoir basin, or high-power 700MHz and 800MHz 4G/5G mobile signals overwhelming unshielded legacy aerials. Fitting a modern aerial with an integrated LTE bandpass filter completely eliminates this interference.
Will you drill into my stone chimney stack?
No. We never drill into stone chimney stacks or historic masonry. We install stainless steel non-drill chimney lashing cradles that wrap around the chimney with galvanized tensioned steel wire, providing a storm-rated anchor without cracking stone or damaging mortar joints.

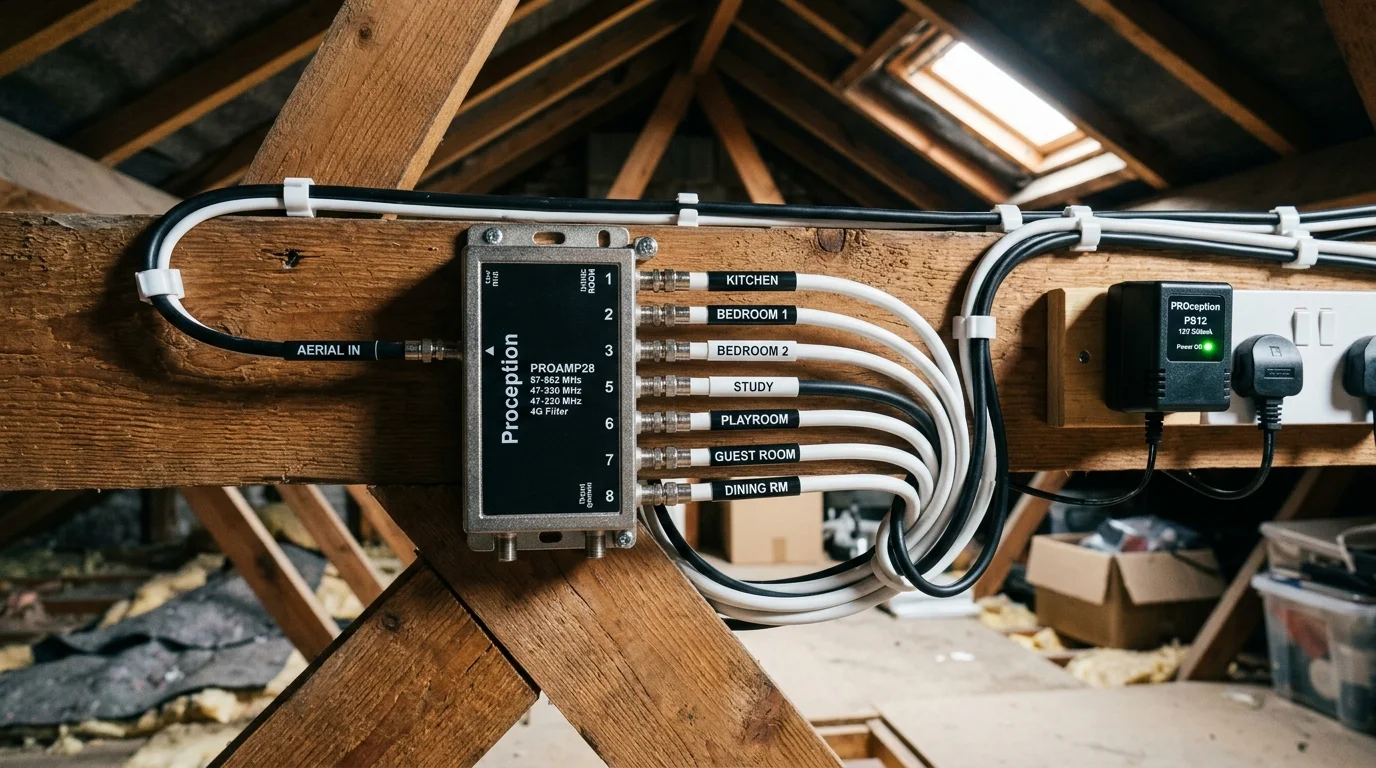

Can you feed Freeview television to multiple rooms from one aerial?
Yes. We install screened masthead distribution amplifiers in your loft space, feeding clean, balanced digital signals through dedicated double-screened WF100 coaxial cables to living rooms, kitchens, and bedrooms with zero signal loss or interference.
How much does TV aerial installation cost in Rishton?
Standard digital TV aerial installation starts from £129 + VAT. High-gain aerials with integrated 4G/5G cellular filtering start from £169 + VAT, and multi-room amplified distribution systems start from £199 + VAT.
Can a TV aerial be mounted inside my loft in Rishton?
Loft mounting is possible in higher parts of Rishton if the roof does not use foil-backed insulation. However, dense Pennine slate tiles typically attenuate signal by 30% to 50%, so an external chimney mount is recommended for guaranteed Freeview HD stability.
How long does an aerial installation take?
A standard domestic aerial installation on a chimney or gable end takes approximately 1.5 to 2.5 hours, including spectrum alignment, external cable pinning, socket termination, and TV channel programming.
Are your installations covered by a warranty?
Yes. All new digital aerial installations completed by Gary Pearce include a comprehensive 5-year parts and labour trade guarantee alongside full £10 Million Public Liability Insurance protection.
Restore Your Rishton TV Reception
Speak with Gary Pearce today for an honest reception diagnosis and straightforward quote with zero call-out charges.
